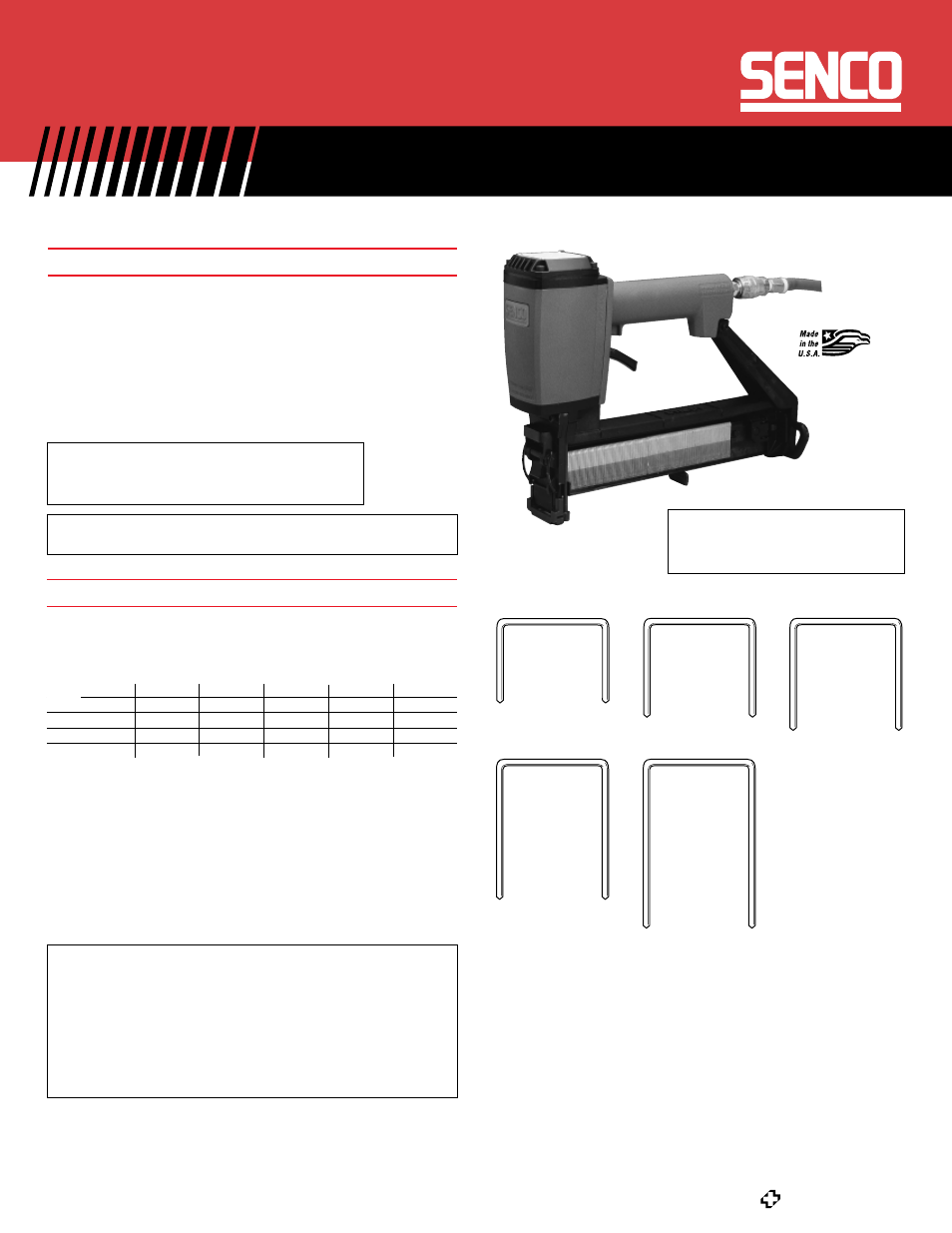

Senco SPS - Manual (Page 2)

Tool Specifications:
Tool Weight: 5.3 lbs.
Height: 9
7 /
8
"
Length: 13 1 /
2
"
Width: Main Body 3 1 /
32
"
Staple Capacity: 140+
Mode of Operation: either bottom fire/trigger fire tools or trigger
fire tools are available*
Operating Pressure Range: 70-120 p.s.i.g.
®
P11
3 / 4
P15
P13 P12
7 / 8 1
1 1 / 4
P17
1 1 / 2
Tool Model Fastener Range
1 1 / 2 " Roofer 340005N P12-P17
1 1 / 4 " Industrial 340002N P11-P15
1 1 / 2 " Industrial 340004N P12-P17
Any of the SPS models above can be adapted to drive 1 / 2 " through 3 / 4 " P staples by
ordering and installing P/N FAO 155. A modified magazine assembly is required to
drive 1
3 / 4 " and 2" staples.
Roofing and Medium-Duty Stapler SPS
NOTE: All part numbers shown are for galvanized carbon steel staples with chisel
point and SencotePlus
® .
The only way to work. ® Safety First.
©1998 by Senco Products, Inc. Order MK313 (7.5AMP1098) Litho in U.S.A.
For additional information on how Senco fastening systems will
save you time, reduce costs, and increase quality, call your nearest
Authorized Senco Dealer or Distributor listed in the Yellow Pages
under “Staples,” or call our toll-free Action Line: 1-800-543-4596.
* “Restrictive Trigger” activated tools are
used for applications where precision nail
or staple placement is desired. You must
first depress the safety element where you
want to drive a nail or staple and then pull
the trigger. After each nail or staple is driv-
en, completely release the trigger and lift
the tool off the work surface.
“Dual Action” activated tools are used
for applications where high-production
work is desired. There are two modes of
operation:
Bottom Fire Method: This method of
operation is sometimes called bounce
firing. You must keep the trigger pulled
while moving the tool along the work sur-
face with a bouncing motion, depressing
the safety element where you want to drive
a nail or staple.
Trigger Fire Method: First depress the
safety element where you want to drive a
nail or staple and then pull the trigger.
For instructions on safe use of tools with
either of these activating mechanisms,
please refer to the Operating Instructions or
Customer Satisfaction and Safety
Reminder contained in your tool carton.
Inches 3 ⁄ 4" 7 ⁄ 8" 1" 1 1 ⁄ 4" 1 1 ⁄ 2"
Millimeters 19 22 25 32 38
Part No. P11BAB P12BAB P13BAB P15BAB P17BAB
Staples/Box 10/M 10/M 10/M 10/M 10/M
Boxes/Carton 1 1 1 1 1
Lengths
Companion SENCO Tools:
The PW drives P08, P10, P11, P12, P13, and P15.
The MW drives P11, P12, P13, P15, P17, and P19
(with modified magazine).
Tool Specifications:
Fastener Specifications:
P Series Staples
• Crown: 1" (25mm)
• Wire Size: 16 Gauge (1.6 mm)
