SIIG 2400 - Manual (Page 5)

5
Recharging Your Portable Devices
When your portable device is out of battery, you can
recharge with the Portable Battery Charger-2400 easily. Just
make sure the Portable Battery Charger-2400 is fully charged
before proceeding.
1.
Connect the USB type A plug of the supplied USB
charging cable to the USB port OUTPUT (USB port)
of the Portable Battery Charger-2400.
2. Find the proper adapter tip (included or buy
separately) and connect to the Mini USB port of the
supplied USB charging cable. Then plug it to your
device. See Figure 5 below.
3. During charging, all LEDs will not display to save
power.
4. During the charging process if the red LED of the
Portable Battery Charger-2400 starts flashing, this
signals that the battery power runs low. When this
happens, stop charging your device and recharge
the Portable Battery Charger-2400 until it is fully
charged. Then repeat the above steps to complete
the device charging process.

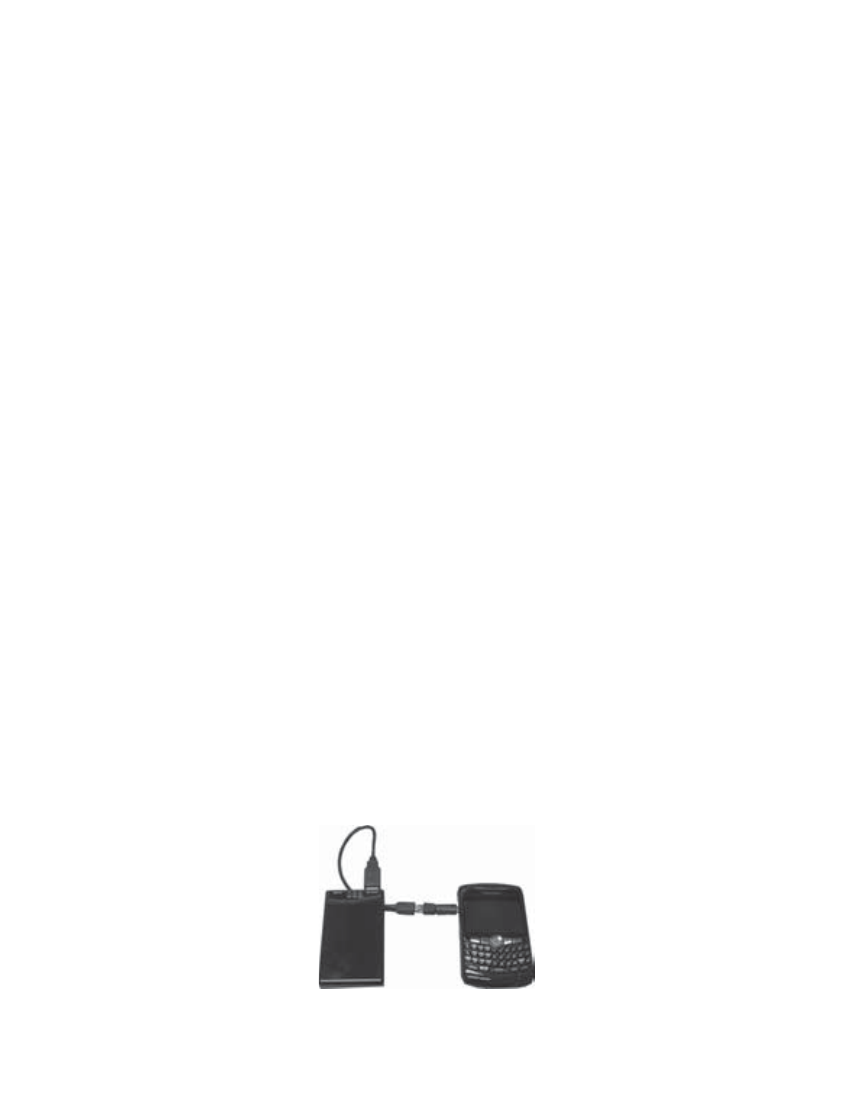

Figure 5
