III. YOUR CHAIR AND ITS PARTS
I I I . Y o u r C h a i r a n d I t s P a r t s 5 E n g l i s h

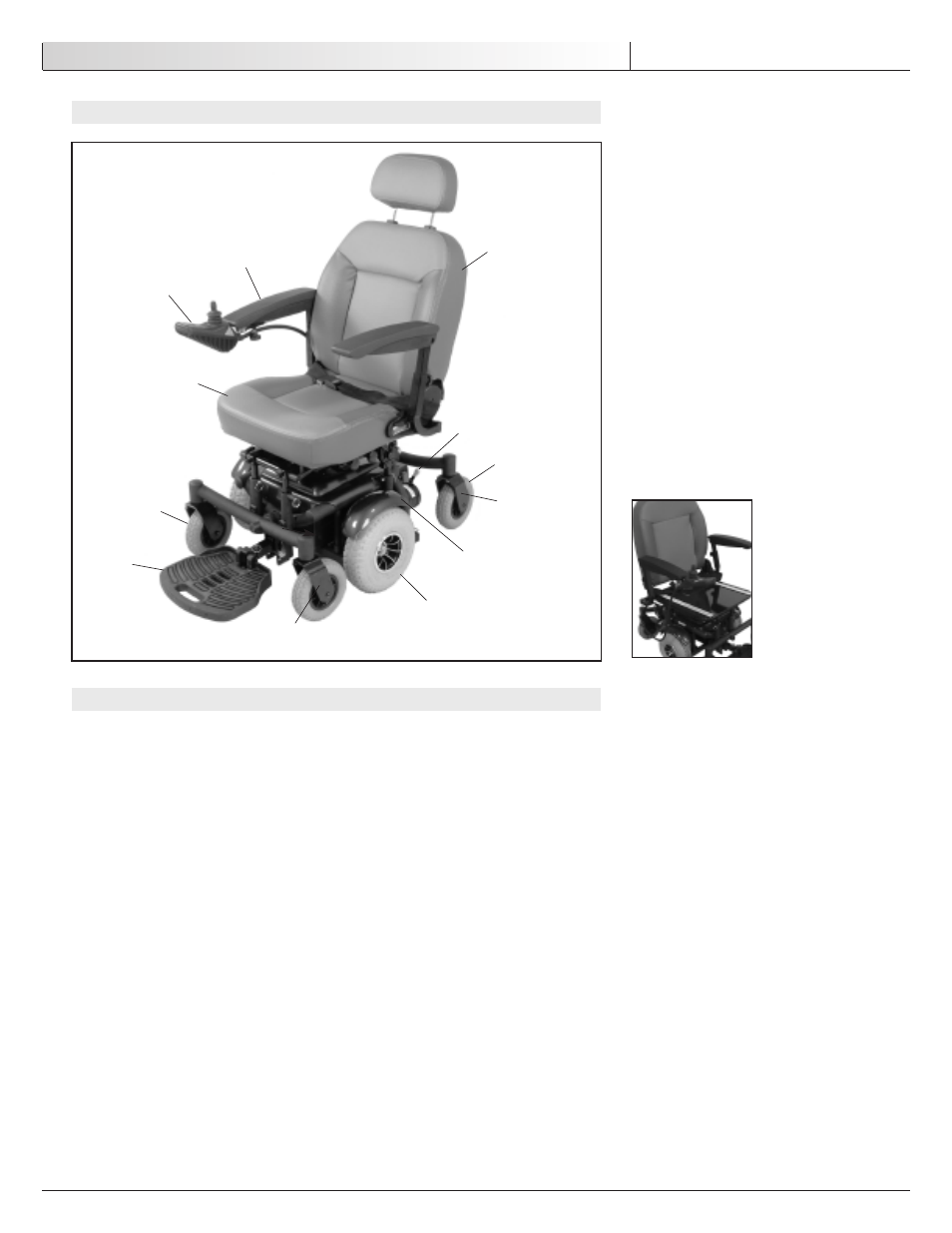

1. Flip-back, height-adjustable armrest
2. Integral controller joystick
3. Contour seat or Contour Flat Pan seat
4. Front caster 7"
5. Rear stabilizing caster 7"
6. Single plate foot platform
7. Semi-recline seat
8. 10" drive wheels
9. Freewheel release
10. Caster Fork (front)
11. Caster Fork (rear)
12. Shroud
1
3
6
7
8
9
11
12
4
5
10
2
Weight
191 lbs (complete chair)
133 lbs (w/o batteries & footplate)
106 lbs (base)
43 lbs (seat)
Drive Wheels
10" Mag: Std. pneumatic,
Option – airless insert
Joystick
Standard – integral (right-hand or
left-hand mount)
Batteries
(2 deep cycle batteries required to
operate chair)
U1 Gel
Battery Charger
On board 4 AMP
Option – off board 4 AMP
Colors
Red, Blue
Seats, Upholstery and Style
High back chair offers semi recline
Material: cloth or vinyl
Color: grey
Width: 16, 18, 20
Depth: 16, 18, 20
High back chair with Flat Pan Seat
Material: vinyl
Color: grey
Sizes: 16"x16", 18"x18", 20"x20"
Footrest:
Standard- Foot Platform
Option- Swing away with composite
footplates and heel loops
Option- Elevating legrests
Casters (front)
Standard- 7” solid
Casters (rear)
Standard- 7” solid
Armrest
Flip back 12" arm pad
Option- Flip back, height adjustable 14"
arm pad
Suspension
Standard- all wheel independent
All features may not be available with
some chair setups or in conjunction with
another chair feature. Please consult your
supplier for more information. Your autho-
rized supplier can also provide you with
more information on accessories.
QUICKIE S-11
S-11 with High
Back Contour and
Seat Pan Option
