Sanyo SRA1780W - Manual (Page 2)

Jan./'08
PARTS LIST
SANYO Electric Co., Ltd.
Osaka, Japan
REF.No. PARTS No. DESCRIPTION Q'TY REMARK
1 HH503705040058 Cabinet 1 SR-A1780(W)
1 HH503705040152 Cabinet 1 SR-A1780(K)
2 HH501100000010 Rivet 2
3 HH501106840004 Top hinge cover 1
4 HH502500300010 Tapping screw 2
5 HH502905040019 Top hinge 1
6 HH501106840032 Top hinge plate 1
7 HH501106840001 Fixed leg 1
8 HH501105040030 Adjustable leg 1
9 HH502905060014 Bottom hinge 1
10 HH502500200016 Screw 3
11 HH501105040015 Thermostat box 1
12 HH502407000326 Thermostat 1
13 HH501105040016 Thermostat knob 1
14 HH501705040015 Evaporator 1
15 HH501105040013 Small door 1
16 HH501113810004 Ice maker 1
17 HH501105040047 Water plate 1
18 HH502901040002 Shelf 1
19 HH503700140110 Door 1 SR-A1780(W)
19 HH503700140059 Door 1 SR-A1780(K)
20 HH501105040025 Gasket 1
21 HH501105040024 Door liner 1
22 HH502500100004 Tapping screw 20
23 HH501100000033 Small wire shelf 1
24 HH501105040033 Big shelf 1
25 HH501602000031 Drier 1
26 HH502401000001 Power supply cord 1
27 HH501105040031 Wire cover 1
28 HH502500100004 Tapping screw 2
29 HH500705040005 Compressor base 1
30 HH502500200016 Screw 4
31 N.S.P. Grommet 4
32 N.S.P. Compressor 1
33 N.S.P. Bushing 4
34 N.S.P. Over load protector 1
35 N.S.P. PTC starter 1
36 N.S.P. Relay cover 1
37 N.S.P. Relay band 1
38 HH501440300014 Compressor Assembly 1

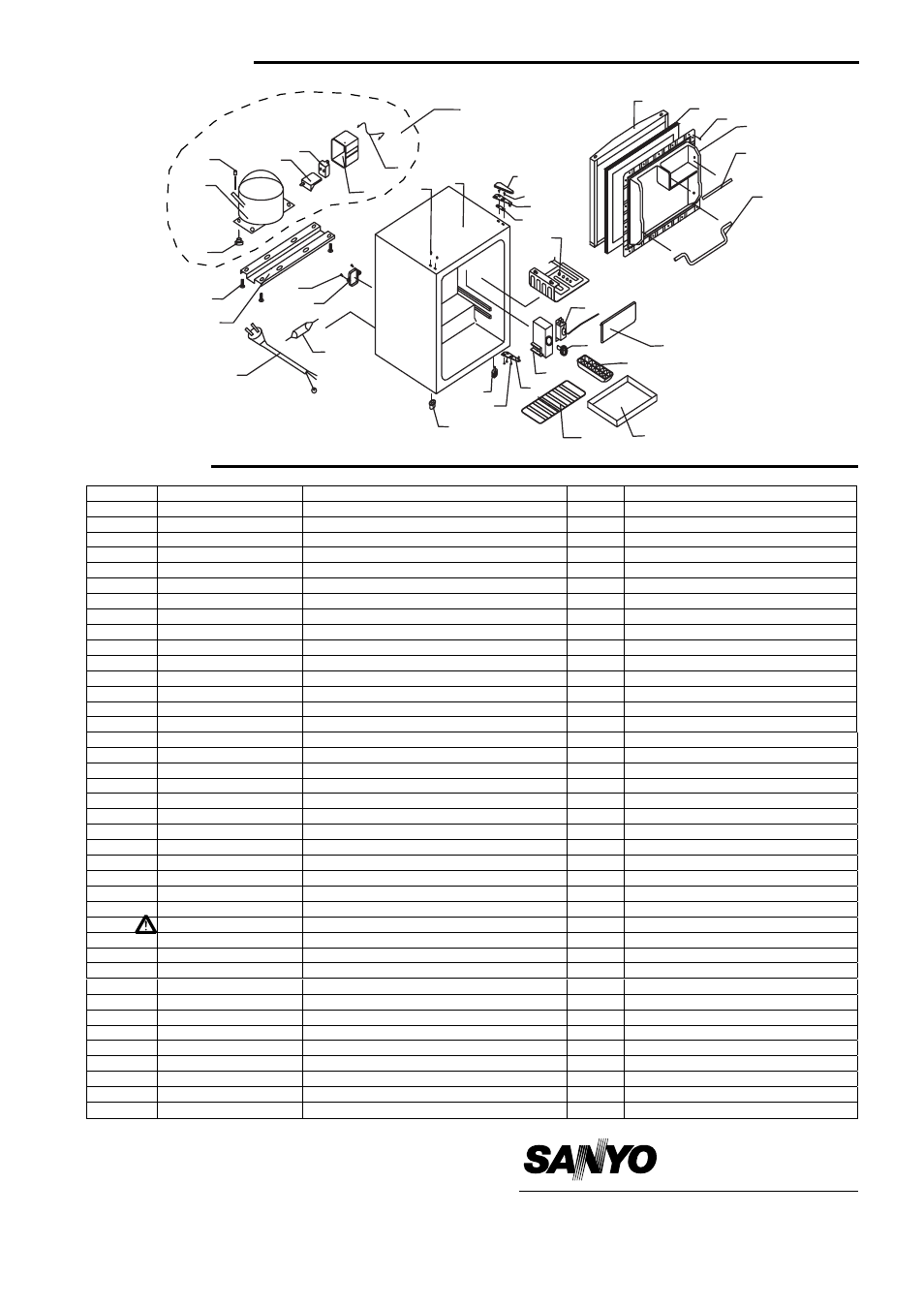

EXPLODED VIEW
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
17 18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34
35
36
37
38
