2
NOTE: The c ordless sweeper is shipped with the batteries uncharged.
Charging of the unit for 20 hours prior to first use is required.
Use replacement battery # XBP610N only.
* Illustrations may differ from actual product.

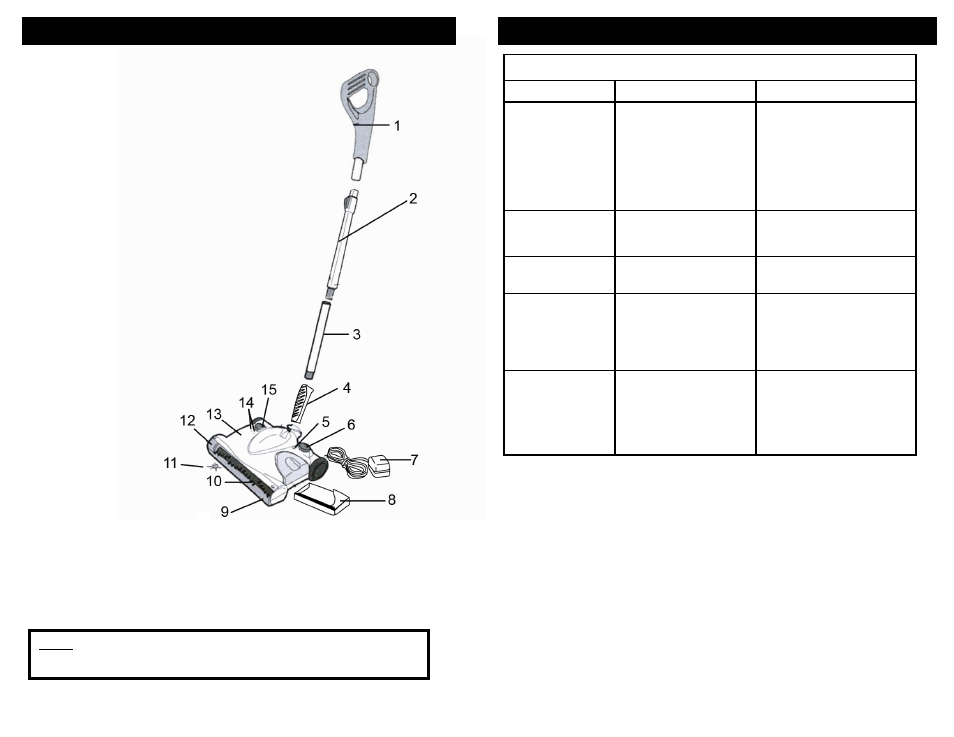

PARTS AND COMPONENTS
1. Upper Handle
2. Telescopic Pole
3. Lower Handle Extension Tube
4. Lower Handle ( Shipped inside dust container)
5. Charging Light Indicator
6. On/Off Switch
7. Charging Adapter: Only Use
TechWorld AD-0920-UL
(Shipped inside dust container)
8. Dust Container
9. Transparent Brush Cover
10. Rotating Brush
11. Edging Tool
12. Gear Box
13. Sweeper Power Head
14. Speed Indicator Lights
15. Speed Control
11
OPERATING INSTRUCTIONS
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
SWEEPER WILL
NOT OPERATE
1. Batteries discharged.
2. No power in electrical
outlet supplying charging
adapter.
3. Unit needs servicing.
4. Battery
misplaced.
5. Brush roll jammed.
1. Charge unit.
2. Check fuse or breaker.
Replace fuse/reset breaker.
3. Call Customer Service.
4. Match “+” on battery to
compartment “+”.
5. Clear any obstruction from the
rotating brush. Turn unit off for
10 seconds, then restart.
SWEEPER WILL
NOT PICK-UP 1. Dust container is full.
2. Unit needs recharging. 1. Empty dust container.
2. Charge
unit.
DUST ESCAPING
FROM SWEEPER
1. Dust container is full. 1. Empty dust container.
ROTATING BRUSH
WILL NOT PICK UP 1. Unit clogged.
2. Dust container is full.
1. Check for excessive material
on brush or in bottom of
sweeper. Remove obstruction
from brushes and/or sweeper.
2. Empty and clean dust
container.
SWEEPER WILL
NOT CHARGE
1. Electrical outlet not
working.
2. Charging Adapter not
working.
3. Batteries no longer
functioning.
4. Unit left in “On” position.
1. Check to ensure outlet is
working properly. (Easily
checked by plugging in
another appliance.
2. Replace charging adapter.
3. See battery disposal.
4. Press
switch to “Off”.
