Mounting sander – Woodstock SHOP FOX W1717 User Manual
Page 14
-12-

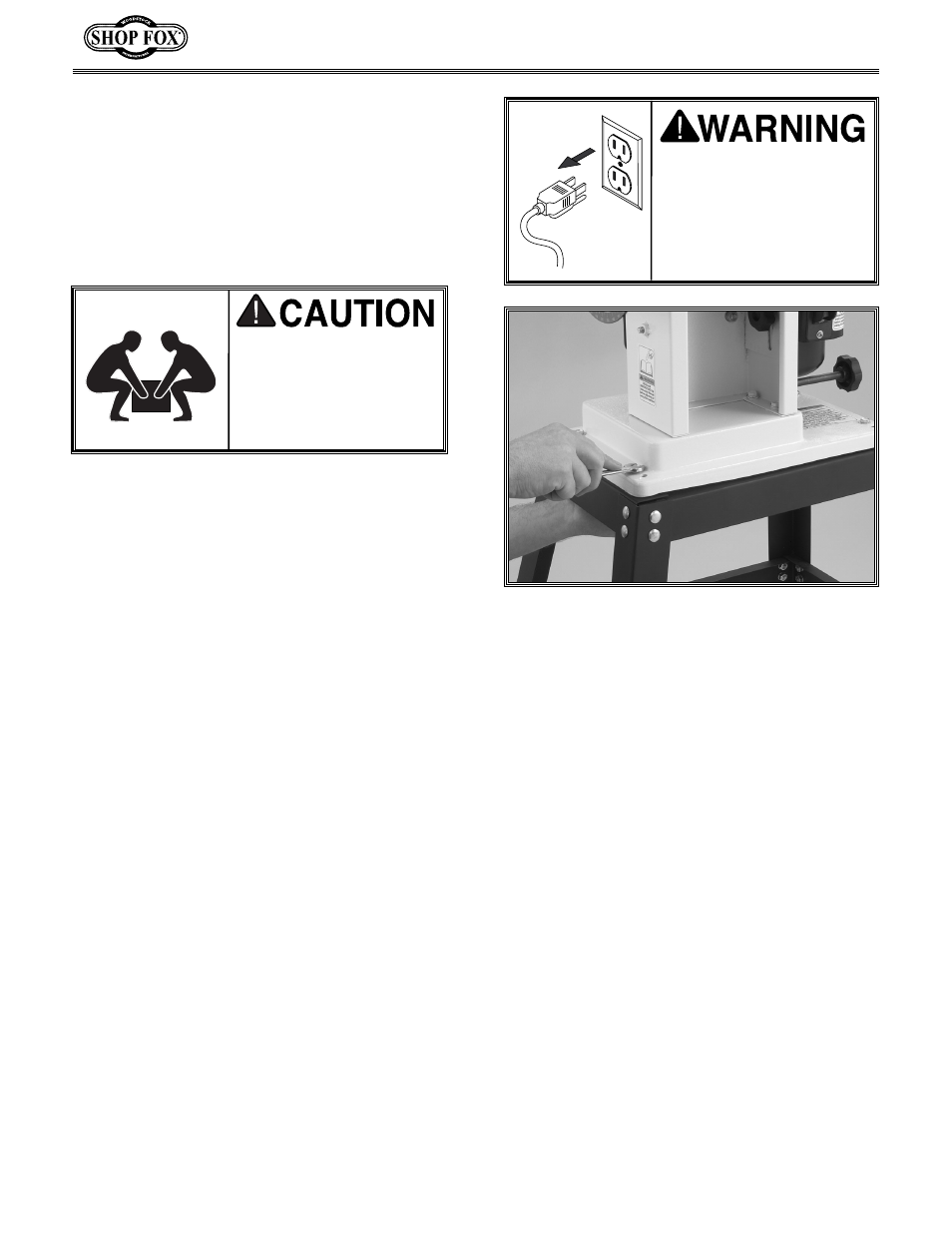

Figure 6. Mounting the sander.
Mounting the sander to the stand will require
the help of an assistant. Secure the sander to
the stand using the supplied M8-1.25 x 40 hex
bolts, 8mm washers and 8mm flat washers.
UNPLUG sander before
you do any assembly!
Otherwise, serious per-
sonal injury to you or oth-
ers may occur!
To mount the sander, do these steps:
1. KEEP SANDER UNPLUGGED!
2.
Position the sander on the stand.
3.
Align the holes in the sander with the holes
pre-drilled in the stand.
4.
Secure the sander to the stand as shown in
Figure 6.
5.
Tighten down all the carriage bolts in the
stand.
The Model W1717 is a
heavy machine at 56
lbs. Use assistance
when lifting or moving
the machine.
Mounting Sander
