9.45TV TREADMILL

ASSEMBLY

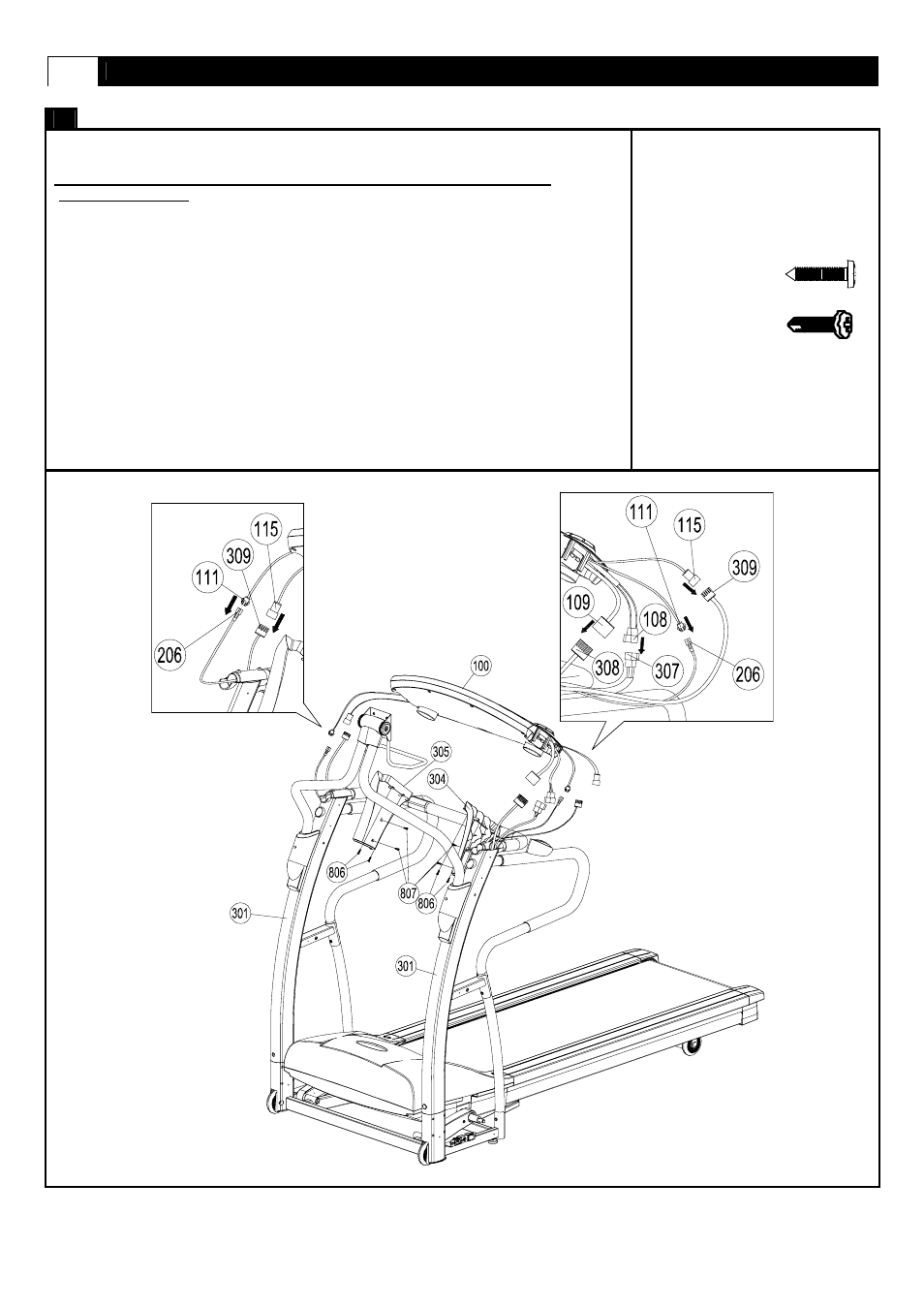

STEP 8:

Attaching the Upright Cover and connect Computer Cable

NOTE: BE CAREFUL NOT TO DAMAGE THE WIRES WHEN SECURING THE

UPRIGHT COVERS.

(A) Attach the Right Upright Cover (304) to the Right Upright (301).

(B) Secure the Right Upright Cover with two 4 × 15mm Thread Cutting Screw (807).

(C) Repeat the above process for the left side.

(D) Lower the console (100) onto Left and Right Upright Covers.

806

807

(E) Secure with four #8 x 20mm Screws (806).

(F) Make all the necessary computer connections as pictured below. The connectors are

specially designed to only connect with the matching connectors.

(G) Before proceeding to the next steps recheck that all the cables are firmly connected.
