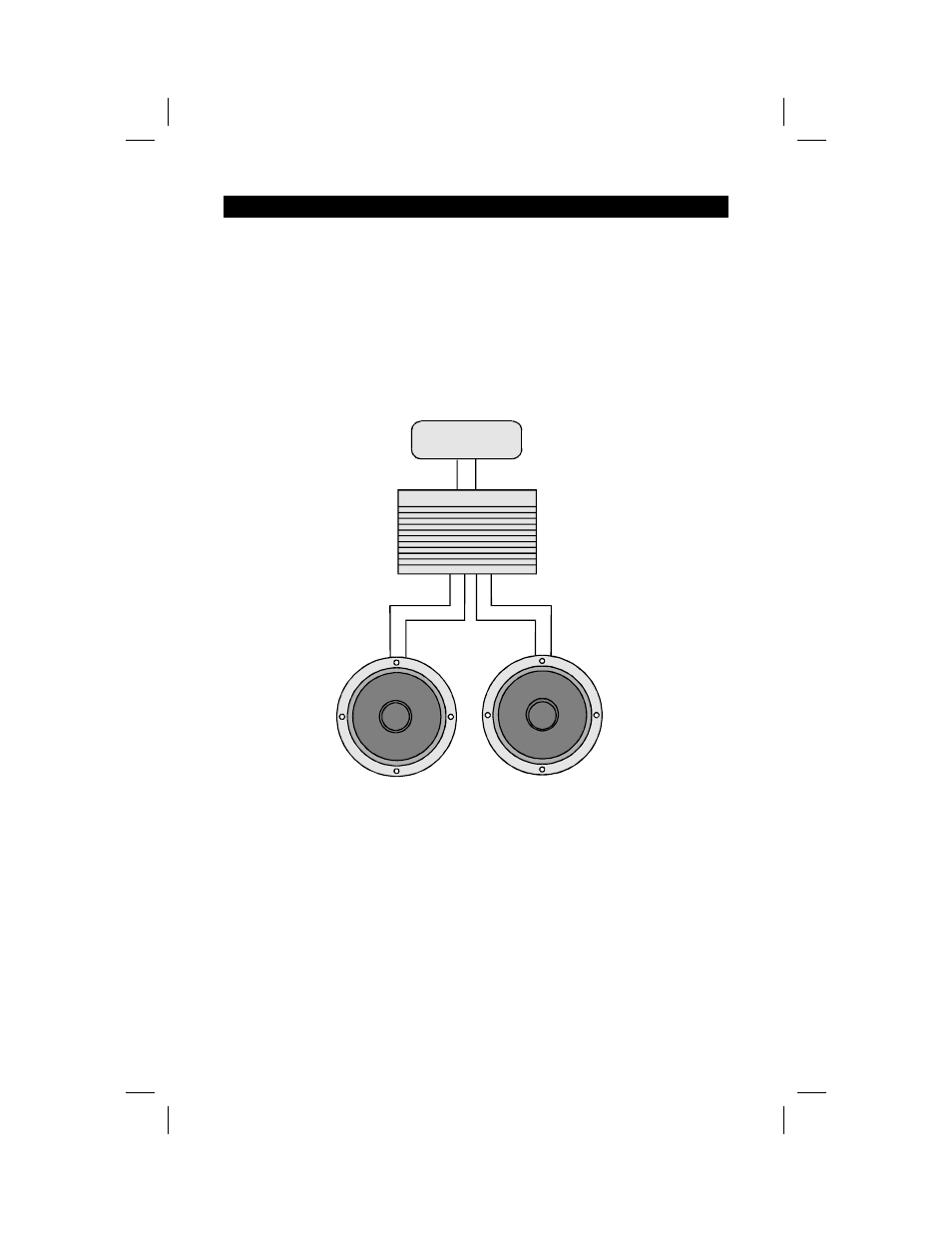

SPL 45 Wiring Diagram
The figure below shows wiring for the SPL 45 speaker. It is
important to make sure that all connections are in phase; that
is positive (+) is connected to positive (+), and negative (-) is
connected to negative (-) since an out-of-phase connection
will cause a dislocated image and low bass output. We
suggest using premium cable. The connectors provided with
this system will accommodate wire from 12 gauge to 16
gauge.
WIRING
Head Unit
Amplifier
SPL 45
