10 .

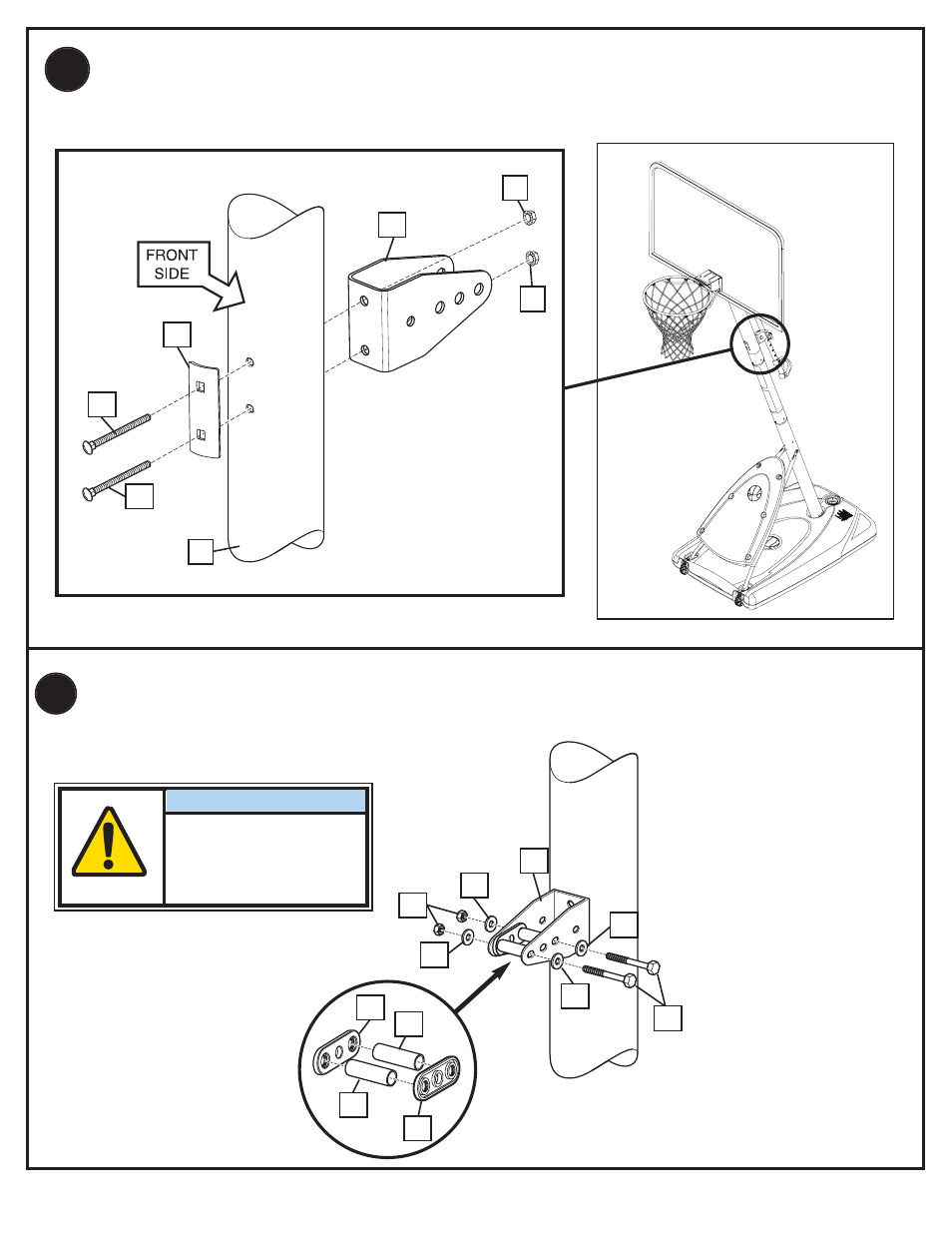

Install pole mount bracket (15) and reinforcement bracket (42) with carriage
bolts (16) as shown. Tighten flange nuts (14) completely.
4
42
16
16
15
14
14
11. Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17),
and nuts (11) as shown.
15
17
17
11
19
17
17
21
20
20
21
IMPORTANT!
Tighten just until
washers (17) stop
moving.
