2
Package Contents
• CyberPro PCI 4S board
• 4-port fan-out cable
• Low profile bracket (Dual Profile board only)
• Driver CD
• Quick installation guide

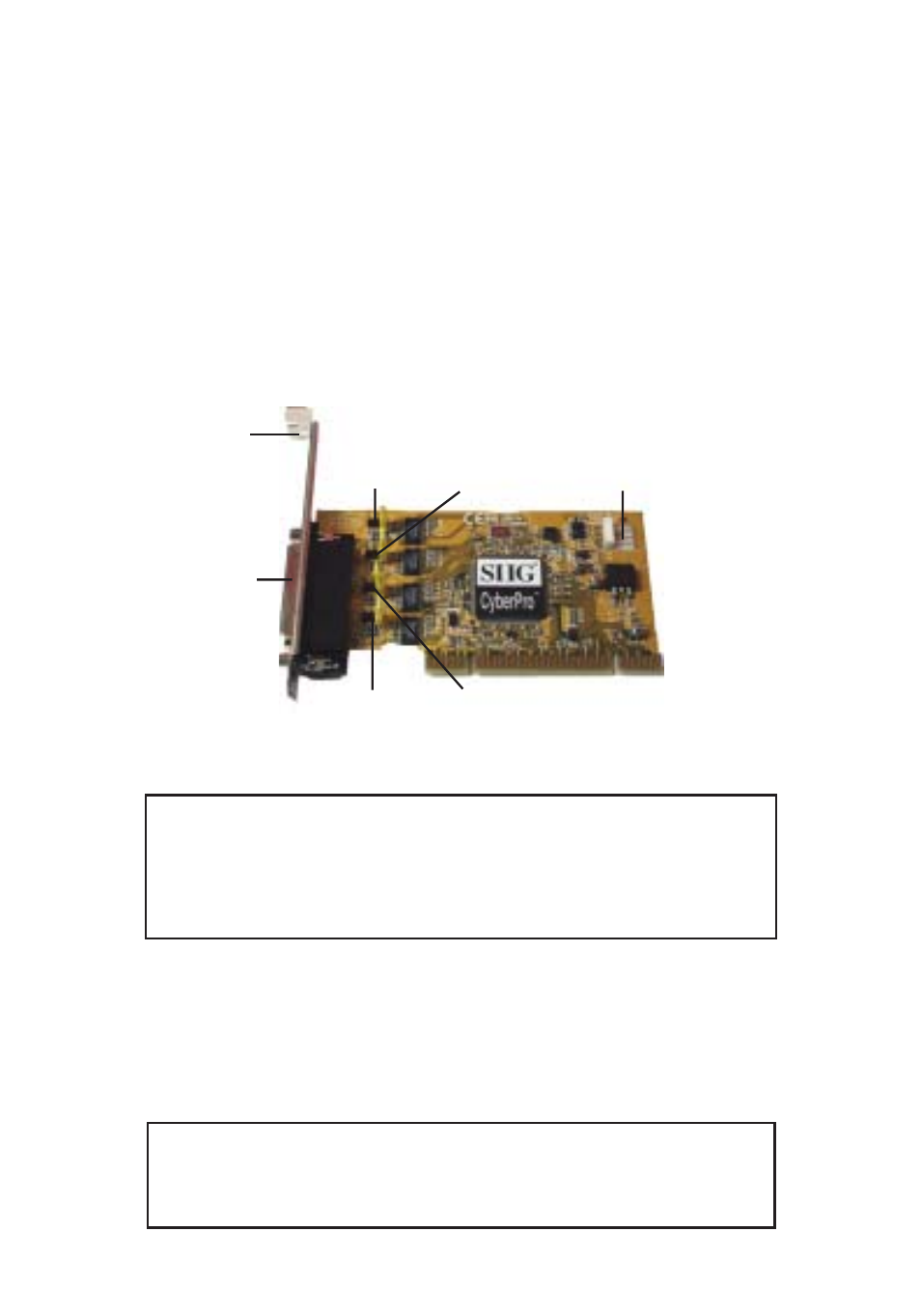

Layout
Full profile
bracket
4-pin power
connector
(optional)*
JP1
(S1)
JP4
(S4)
JP2
(S2)
JP3
(S3)
44-pin
connector
Figure 1. Layout
* Note: Make this connection only when two or
more serial ports are configured for 5V/12V
output. Depending on the model purchased, the
bracket size will be either Full or Low Profile.
Jumper Settings (JP1, JP2, JP3, JP4)
Open = 0 volts (default)
Short 1-2 = 5V
Short 2-3 = 12V
Note: Most serial devices do not require additional
power through the serial port. Refer to your serial
device's manual for more information.
