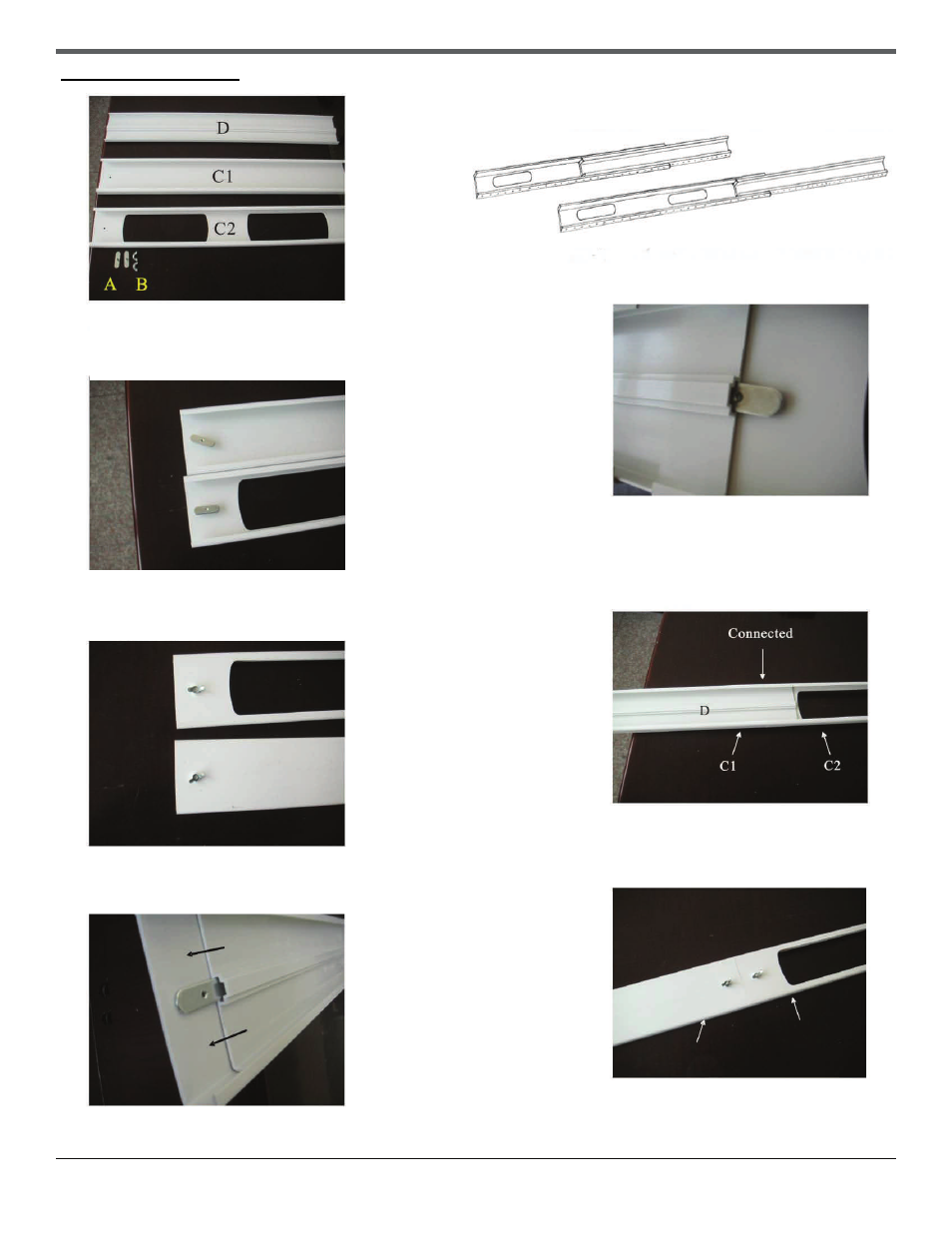

Window Kit Assembly
8
1.Parts:
A) 2 Track Screws
B) 2 Wing Nuts
C1 & C2) 2 Hose Panels, one with Two Exhaust Hose Openings
D) 1 Sliding Track Panel
2. Assembly:
First, take the Track Screws (A) and screw one
into each of the small holes found on the Hose
Panels (C1 & C2).
3. Next, take the Wing Nuts (B) and tighten them
around each of the Track Screws (A). Do not tighten
the Wing Nuts (B) all the way; make sure they are
somewhat loose.
4. Now, place the Sliding Track Panel (D) over
the Track Screw (A) on Hose Panel (C1).
5. Next, take the other Hose Panel (C2) and connect
it to Hose Panel (C1) by placing the Sliding Track
Panel (D) over the Track Screw (A) on Hose Panel
(C2).
6. The Hose Panels (C1 &C2) should now be
connected using the Sliding Track Panel (D).
7. To complete the assembly, tighten the wing Nuts
(B) installed earlier. The finished Window Kit
should resemble the image seen below.
