W1790 parts – Woodstock SHOP FOX W1790 User Manual
Page 2

-2-
W1790
3
⁄
8

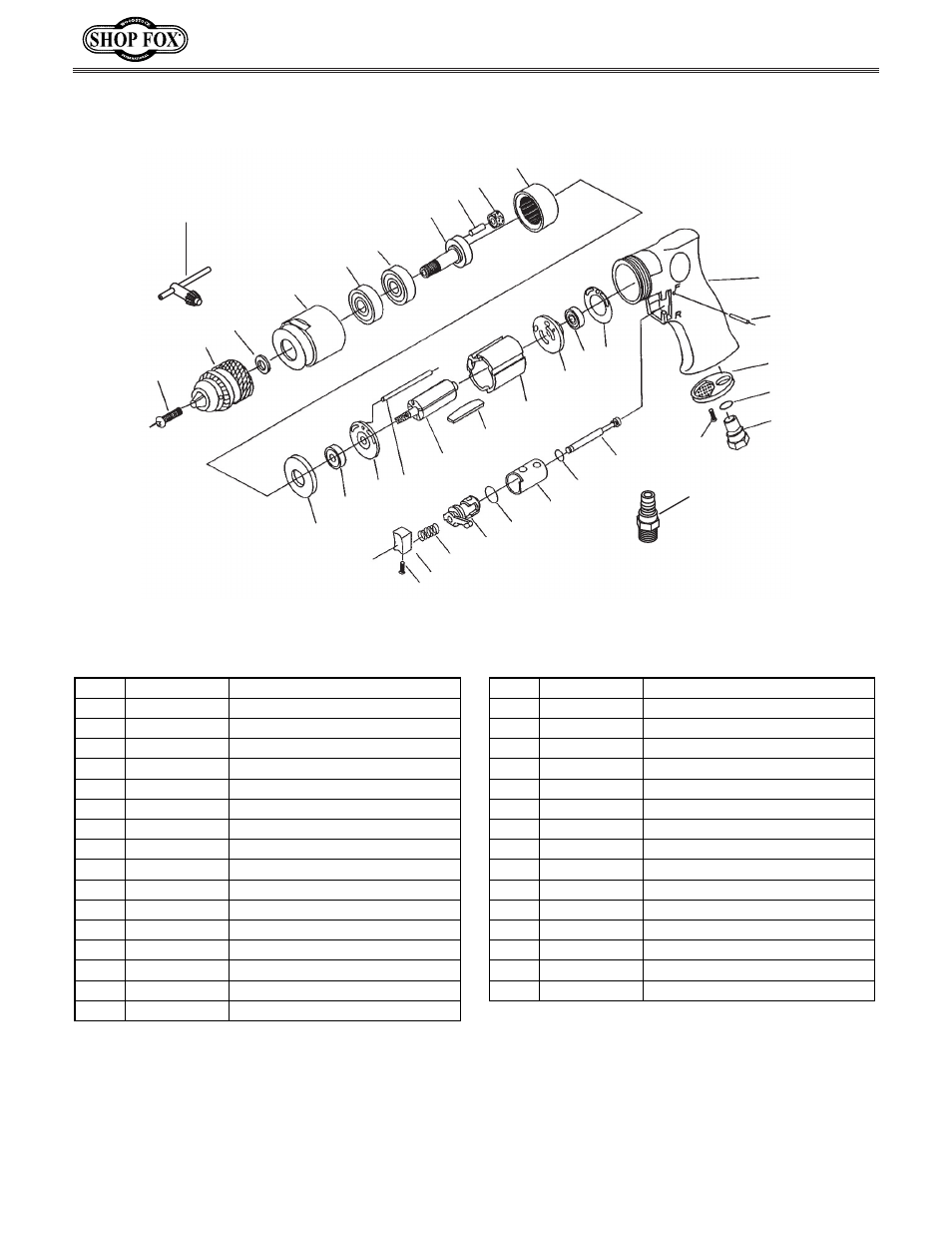

" Air Ratchet Instructions
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
101
X1790101
HOUSING
118
X1790118
CYLINDER
102
X1790102
SPRING PIN
119
X1790119
ROTOR BLADE
103
X1790103
EXHAUST DEFLECTOR
120
X1790120
ROTOR
104
X1790104
O-RING
121
X1790121
PIN
105
X1790105
AIR FITTING BUSHING
122
X1790122
SPACER
106
X1790106
SPECIAL SCREW
123
X1790123
INTERNAL GEAR
107
X1790107
VALVE STEM
124
X1790124
PLANET GEAR
108
X1790108
O-RING
125
X1790125
PIN
109
X1790109
REVERSE BUSHING
126
X1790126
WORK SPINDLE
110
X1790110
O-RING
127
X1790127
BEARING
111
X1790111
REVERSE LEVER
128
X1790128
CLAMP NUT
112
X1790112
COMPRESSION SPRING
129
X1790129
GASKET
113
X1790113
TRIGGER
130
X1790130
DRILL CHUCK
114
XPSS81M
SET SCREW M3-.5 X 5
131
X1790131
CHUCK SCREW
115
X1790115
END PLATE GASKET
132
X1790132
1/4" NPT MALE AIR FITTING
116
X1790116
BEARING
133
X1790133
CHUCK KEY
117
X1790117
END PLATE
���
���
���
���
���
���
���
���
���
���
���
���
��� ���
���
���
���
���
��� ���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
W1790 Parts
