Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
MAXIMUM CAPACITIES
Model Blade Blade Stroke
No. Thickness Action Length Wood Aluminum Steel
4290 Minimum .7mm - Maximum 1.7mm Orbital 13/16" 2" 1/2" 1/4"
NOTE: For tool specifications refer to the nameplate on your tool.

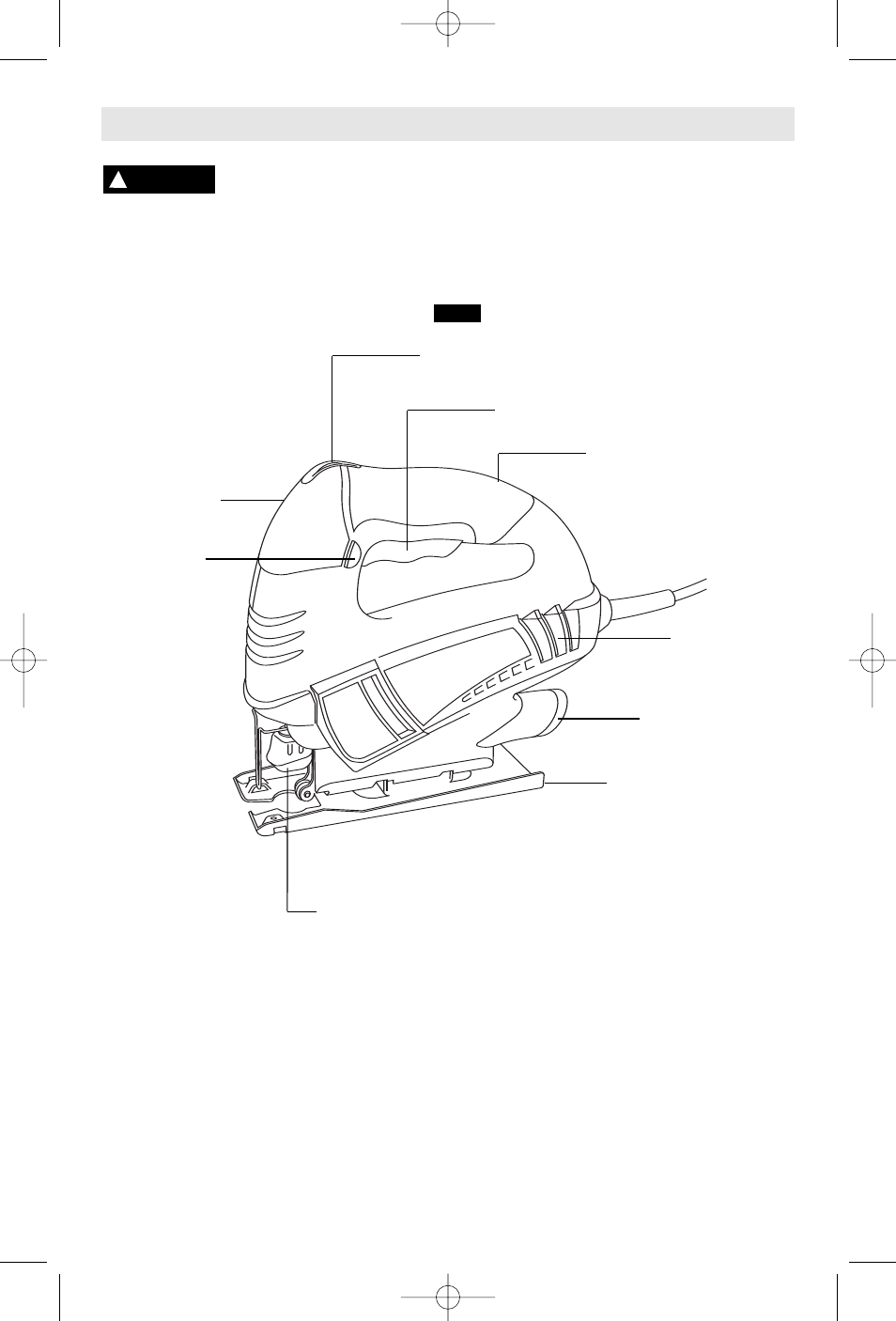

Jigsaw
TRIGGER SWITCH
TOP OF FRONT
HOUSING
FOOT
VENTILATION
OPENINGS
BLADE STORAGE
COMPARTMENT
TOOL-LESS BLADE
CHANGE COVER
“LOCK-ON”
BUTTON
VARIABLE SPEED
CONTROL DIAL
RUBBERIZED GRIP
FIG. 1
