Adjustment tips and functions
26

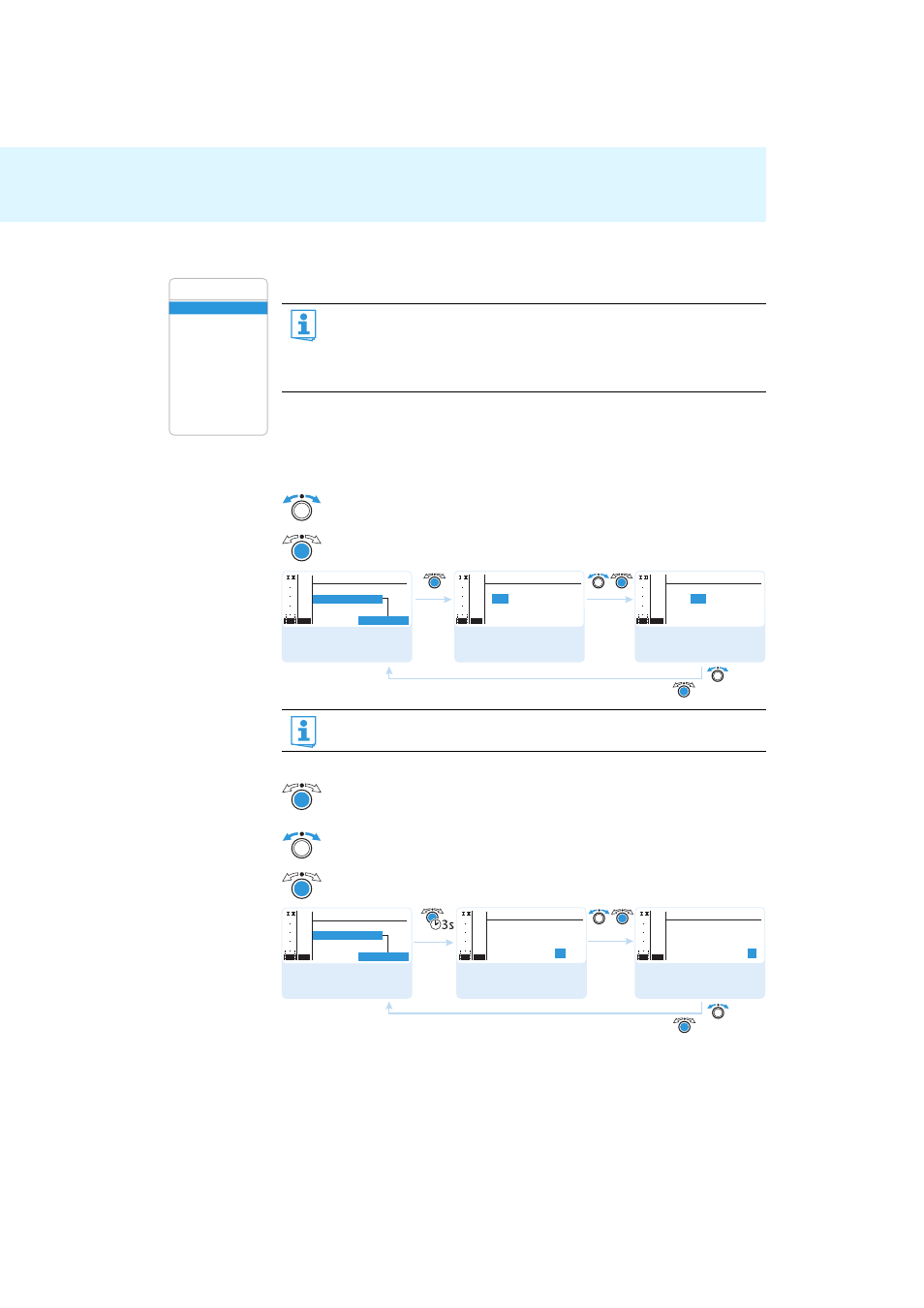

The extended menu “ Advanced Menu “
Setting the receiving frequencies and the frequency banks “U1” to “U6”
Via the “ Tune ” menu item, you can:
1. set a receiving frequency to be stored in the current channel of the frequency bank (“ U1 ”
to “ U6 ”)
2. or select a frequency bank (“ U1 ” to “ U6 ”) and a channel and assign this channel a
receiving frequency.
Setting a receiving
frequency for the
current channel
̈
Set the desired frequency.
Selecting a frequency
bank and a channel and
assigning this channel
a receiving frequency
̈
Set the desired frequency bank.
Tune
Guitar Tuner
Sync Settings
Pilot Tone
Warnings
LCD Contrast
Factory Reset
IP-Address
Software Revision
Exit
Advanced Menu
When you have selected one of the system banks and then select the “ Tune ” menu,
the receiver automatically switches to channel 1 of the frequency bank “ U1 ”. In this
case, “ U1.1 ” briefly appears on the display panel.
Upon delivery, the channels of the frequency banks “ U1 ” to “ U6 ” are not assigned a
receiving frequency.
̈
Turn the jog dial until the “ Tune ” menu item appears.
̈
Briefly press the jog dial.
The frequency selection appears.
It is vital to observe the notes on frequency selection on page 31.
̈
Press the jog dial.
Your settings are stored. The “
Tune ” menu item appears.
Call up “Tune”
Advanced Menu
543.200 MHz
Tune
B.Ch: U1. 1
543 .200MHz
Tune
B.Ch: U1. 1
548. 200 MHz
Exit
Tune
Sync Settings
„Stored”
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
Select the MHz value
and confirm Select the kHz value;
store the setting
̈
Turn the jog dial until the “ Tune ” menu item appears.
̈
Keep the jog dial pressed until the frequency bank selection appears.
Select the frequency
bank and confirm
Tune
B.Ch: U1 . 1
Select the channel; store
the setting
Tune
B.Ch: U2. 1
Call up “Tune” (special
function)
Advanced Menu
543.200 MHz
543.200 MHz 543.200 MHz
Exit
Tune
Sync Settings
“Stored”
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
PEAK
-10
0 40
30
20
10
-20
-30
-40
AF RF
