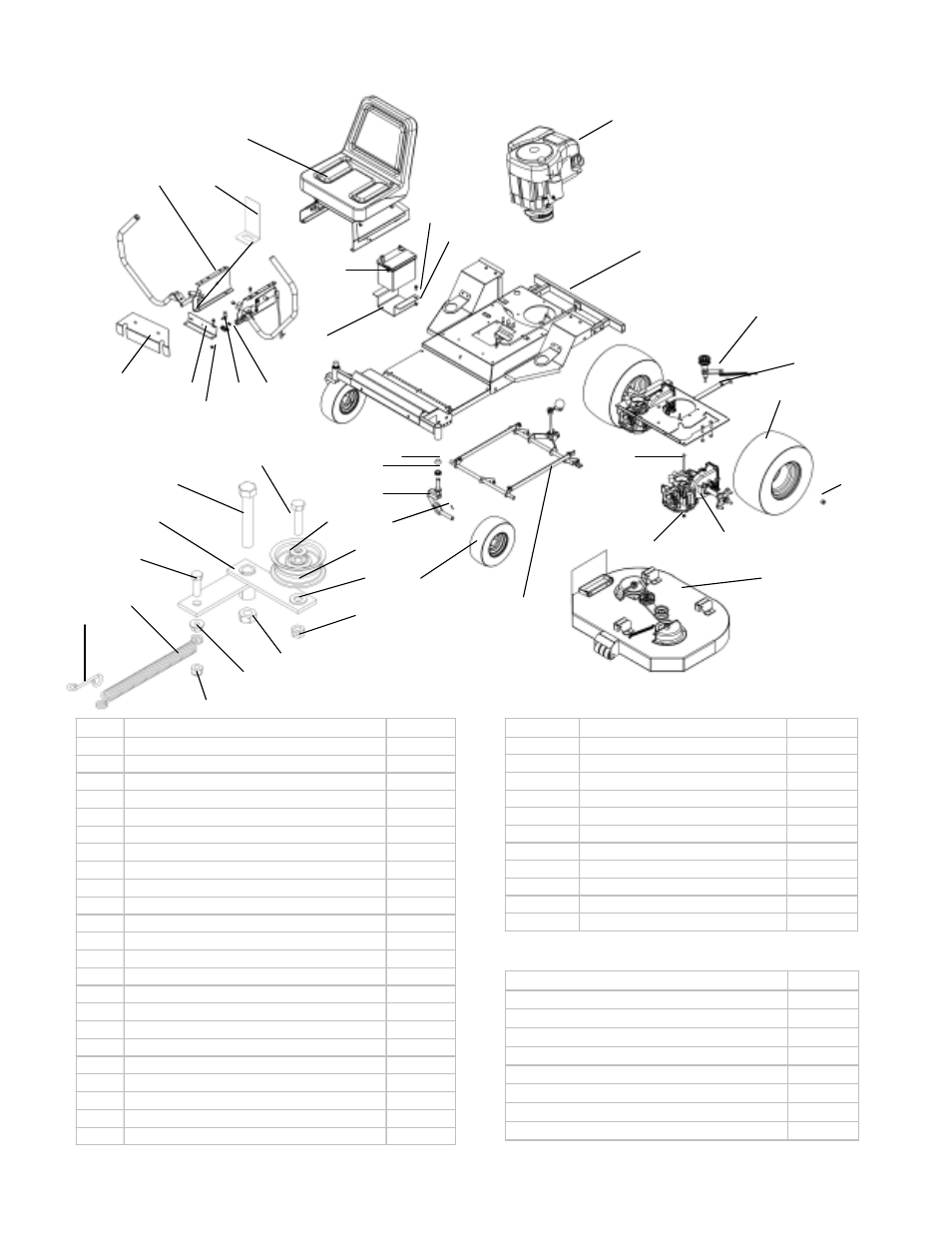

OVERALL ASSEMBLY
Not Pictured
Description
Part #
Solenoid Assembly (All Models)
9043
Wiring Harness (36 and 42" Models Only)
3720
Wiring Harness (50" Models Only)
3804
Hour Meter (50" Models Only)
3803
Battery Hold Down, 15" Tarp Strap
BHOLD
1/4-20 X 3/4 GR5 ZP (2)
NB250
1/4-20 Flange Nut (2)
NB524
Belt Snubber (50" Mower Only)
3819TK
17
SEAT DETAIL
STEERING
DETAIL
ENGINE DETAIL
FRAME DETAIL
TRANSMISSION
IDLER DETAIL
DECK LIFT
DETAIL
MOWING
DECK DETAIL
1
2
3
6
4
2
3
5
7
8
9
10
11
12
13
14
16
15
17
18
Item #
Description
Part #
1
Battery Box
3696TK
2
5/16-18 X 3/4 Serr Flg Bolt
NB596
3
5/16-18 Serrated Flange Nut
NB170
4
Nuetral Switch Bracket Painted
3704TK
5
Return to Neutral Switch
3695
6
Steering Cover
3644TK
7
3/4 Push Nut Blk Plastic
NB687
8
Bearing
CB58
9
Caster Weldment
5072
10
1/8 X 1 Cotter Pin
NB126
11
Front Tire for 36" and 42"
3754
Front Tire for 50" Only
5057
12
3/8-16 X 4 HCC GR5 Bolt
NB645
13
3/8-16 Nyloc Nut
NB182
14
ZTR Trans. Right- NOT FOR RE-SALE
3600
ZTR Trans. Left- NOT FOR RE-SALE
3601
15
Lug Nut
2203LN
16
Rear Tire For 36"
3755
Rear Tire For 42"
3604
Rear Tire For 50"
3756
17
Battery 230 CCA
EBAT230
18
Hydro Release
3678TK
19
Spring - Interlock Switch
3751
Item #
Description
Part #
20
Transmission Idler Arm
3690TK
21
1/2-13 X 3 HCC GR5 Bolt ZP
NB131
22
3/8-16 X 1 1/2 HCCGR5ZP
NB107
23
3/8 SAE Washer
NB272
24
Idler Pulley OD-2.16"
B27
25
3/8-16 2-Way Lock Nut
NB280
26
1/2-13 2-Way Jam Lock Nut
NB121
27
5/16-18 Nyloc Nut
NB181
28
Clutch Rod Spring
682S
29
Wire Link For Idler Arm
BRS6H
30
5/16-18 X 1 HCC GR5 ZP
NB501
21
22
23
24
23
25
26
3
27
20
30
28
29
Transmission Idler
(This Page)
19
(Page 21 & 22)
(Page 23, 24 & 25)
(Page 19)
(Page 20)
(Page 18)
(Page 19)
