Scotsman Ice Prodigy C0630 - Manual (Page 11)

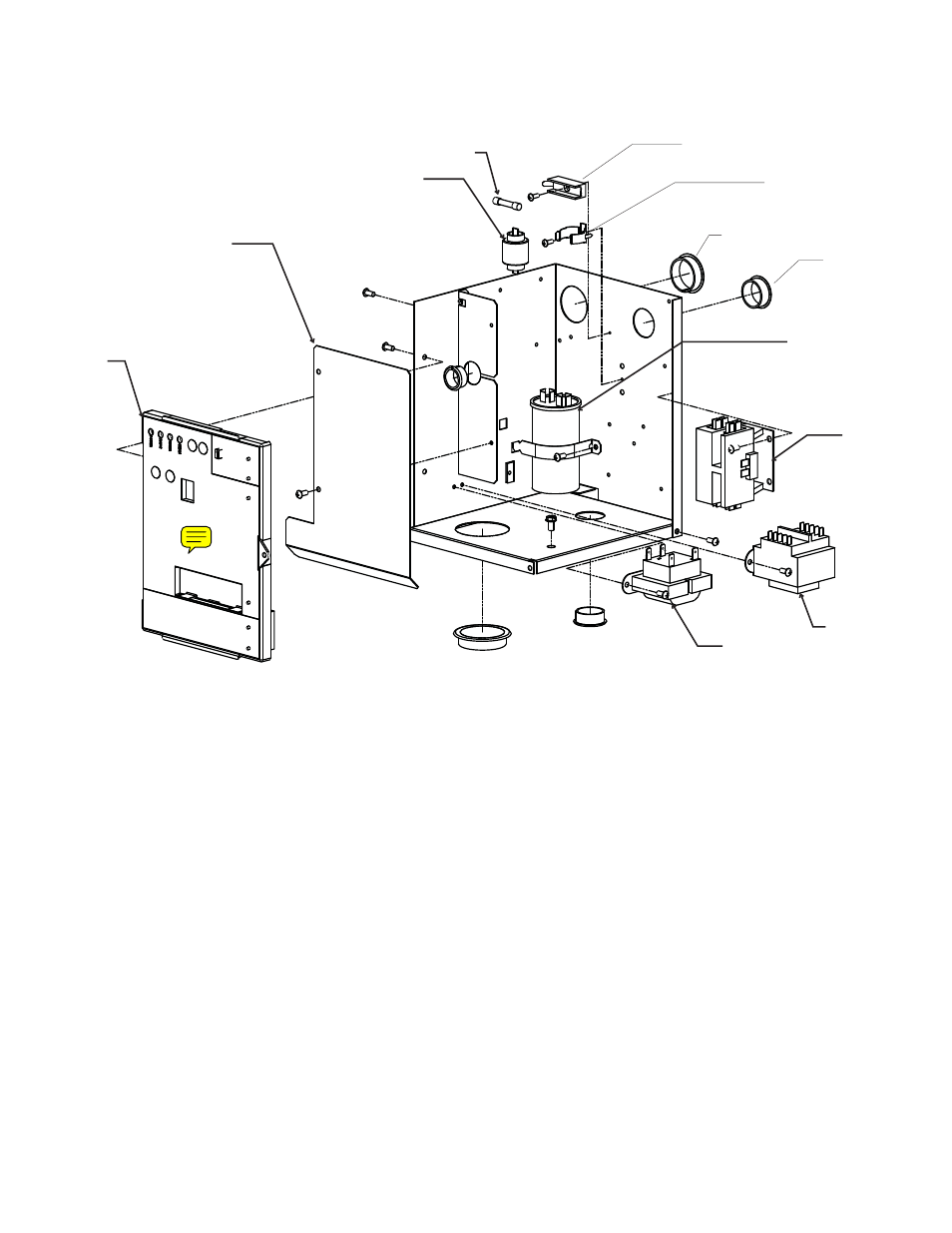

Electrical & Control Box
Item Part
Number Number Description
1 12-2469-03 Contactor, 115 volt
12-2469-02 Contactor, 230, single ph
12-2533-01 Contactor, three phase
2 12-2924-01 Transformer, 115 volt
12-2924-02 Transformer, 230 volt
2a 12-2369-01 Transformer, 50 Hz
3 12-1213-11 Snap bushing
4 12-1213-15 Snap bushing
5 11-0550-24 Service controller, fits all
Prodigy cubers
6 02-4076-01 Control box door
02-4189-01 Overlay label
7 A39216-001 Barrier
8 see next page Run capacitor
9 see next page PTCR -
10 12-2686-01 Fuse, 50 Hz only
11 12-2687-01 Fuse holder
12 18-8835-02 Bracket
Wiring Harnesses (not illustrated)
13 12-2931-01 Power harness, A & W
12-2931-02 Power harness, Remote
Power harness connects to J1 on controller
14 12-2932-01 Hi voltage harness, A & W
12-2933-01 Hi voltage harness, Rem
12-2971-01 Hi voltage, 50 Hz A & W
Hi voltage harness has the 8 pin connector
15
12-2928-01 WLS harness
C0330, C0530, C0630, C0830, C1030 Service Parts
August 2008
Page 11
