13
Instructions for the Installer

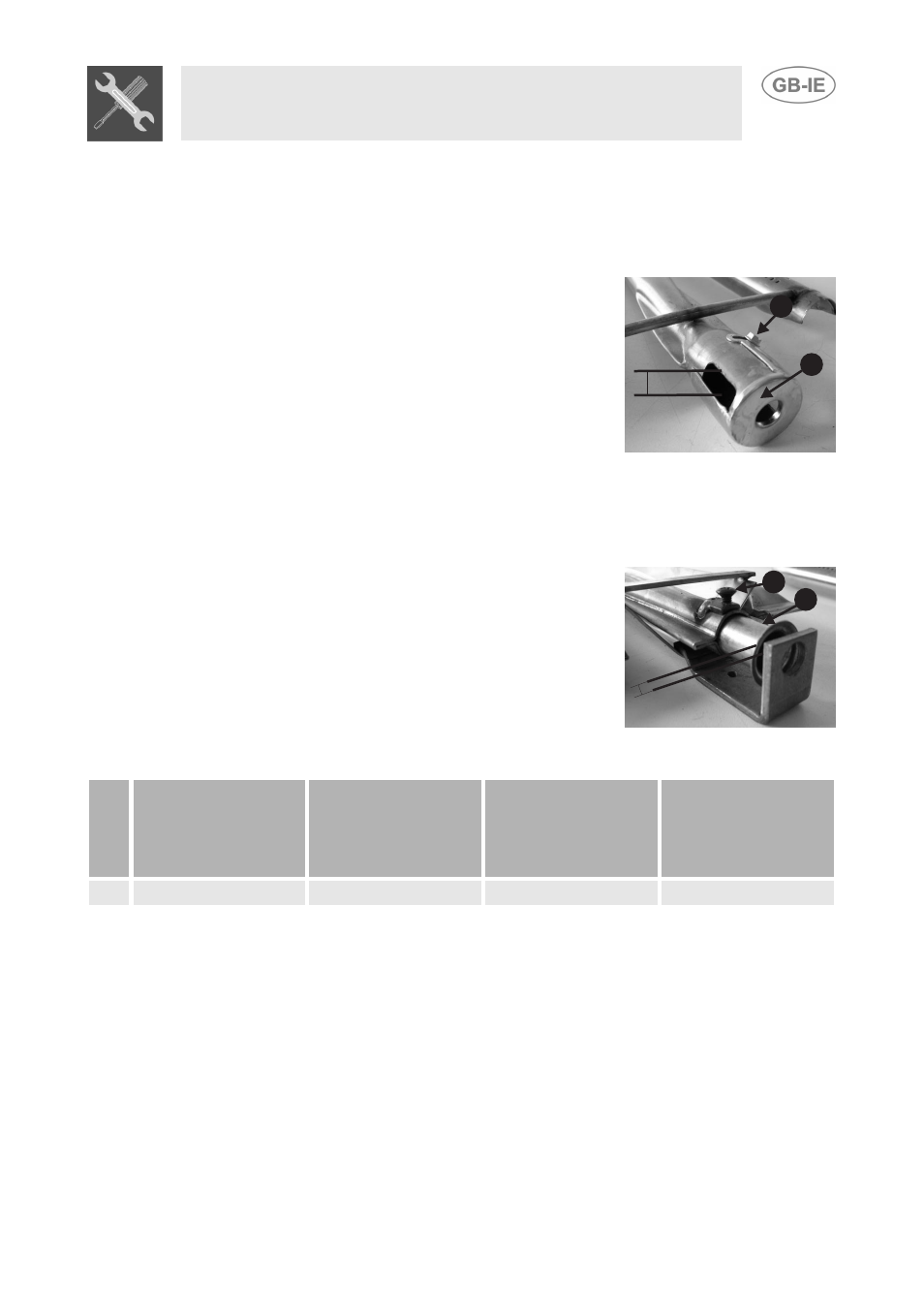

ADJUSTING THE PRIMARY AIR FLOWS
The operations below must be carried out for every
burner in the barbecue section:
ADJUSTING THE PRIMARY AIR FLOW FOR "U"-
SHAPED BURNERS
1
Undo the adjuster screw A of the air regulator
sleeve.
2 Turn the regulator sleeve B into the position for the
type of gas to be used, consulting the table below.
3 Tighten the regulator screw, making sure that the
distance X is correct (see table below).
ADJUSTING THE PRIMARY AIR FLOW FOR
"PARALLEL FLAME" BURNERS
1
Undo the adjuster screw A of the air regulator
sleeve.
2 Pull the regulator sleeve B out or push it in to
achieve the position for the type of gas to be used,
consulting the table below.
3 Tighten the regulator screw, making sure that the
distance X is correct (see table below).
NATURAL GAS
(N) U-shaped
burners
G30/G31 (LPG)
U-shaped
burners
NATURAL GAS (N)
Parallel flame
burners
G30/G31 (LPG)
Parallel flame
burners
X = 4 mm 8 mm 2 mm 8 mm
A
B
X
A
B
X
