S&S Worldwide Automobile Parts - Manual (Page 7)

7
1
2
6
4
5
33
31
18
14
12
11
16
17
12
14
10
7
19
25
27
24
26
13
15
30
29
28
20
25
32
21 23
22
3
9
8
7
1. Bolt, stator 10-24 x1" SHC - 4 required
(HD#2720) (10 Pack) . .....................50-0194
2. Seal, sprocket shaft
(HD#12068) ...................................31-4035
3. Bearing, timken (HD#9028) ...........31-4013
4. Bolt, case 5/16”" -18 x 3-1/2" HHC - 8 required
(5 Pack) ........................................50-0147
5. Washer, flat 5 ⁄
16
" x 11 ⁄
16
" x 1 ⁄
16
" - 8 required
(10 Pack) ......................................50-7069
6. Bolt center case 1/4" -28 x 5-1/2" HHC
Grade 8 (5 Pack)....................50-0126
7. Washer, flat, 1 ⁄
4
" x .474" x .050"
(10 Pack) ......................................50-7076
8. Cylinder studs .............................31-2325
9. Dowel, cylinder deck - 2 required
(HD#16595-99) (10 Pack) ................50-8179
10. Nut 1 ⁄
4
"-28 Grade 8 - 1 required
(10 Pack) ......................................50-5014
11. Bolt, camplate 1 ⁄
4
"-20 x 1" SHC - 4 required
(10 Pack) ......................................50-0244
12. Bolt, camplate 1 ⁄
4
"-20 x 1 1 ⁄
4
" SHC - 2 required
(10 Pack) ......................................50-0153
13. Oring, camplate - 7 required
(HD#11301) (10 Pack) .....................50-8066
14. Dowel, camplate - 2 required
(HD#16589-99) . ...............................50-8148
15. Bearing, inner cam (HD# 9198) .....31-4080
16. Bearing, right main.
2003-up all TC
(HD#24606-00C) ......................................N/A
17. Retaining ring, internal, spiraloc, (HD#35114-
02) .................................................50-8160
18. Oring, oil pump 11 ⁄
16
" I.D. x 15 ⁄
16
" O.D. x 1 ⁄
8
"
CS (HD#11293) ...............................50-8039
19. Switch, oil pressure
(HD#26561-99) ........................................N/A
20. Plug, sump (HD#765) ....................50-8330
21. Plug, magnetic drain ..................50-8335
22. Baffle Plate ..................................31-0119
23. Screw 10-24 -3/8" pan head - 2 required
(10 Pack) . .....................................50-0139
24. Dowel, case alignment - 2 required
(HD#16574-99) (10 pack) ..............50-8109
25. Oring, case alignment,
9 ⁄
16
" I.D. x 11 ⁄
16
" O.D. x 1 ⁄
6
" CS - 2 required
(HD#26432-76A) (10 Pack) .............50-8102
26. Piston oilers - kit of 2
(HD#22371-99) ................................31-2026
27. Oil line fitting- vent
(HD# 26314-99) ..............................50-8147
28. Oil conduit block .........................31-2076
29. Washer, flat 1 ⁄
4
" chrome
(10 Pack) .....................................50-7013
30. Bolt, 1 ⁄
4
" -20 x 2" HHC - 1 required
....................................................50-0303
31. Hose, oil, inlet/outlet....................50-8157
32. Spring clips - 4 required..............50-8156
33. Oil line fittings, inlet/outlet
2 required ...................................50-8158

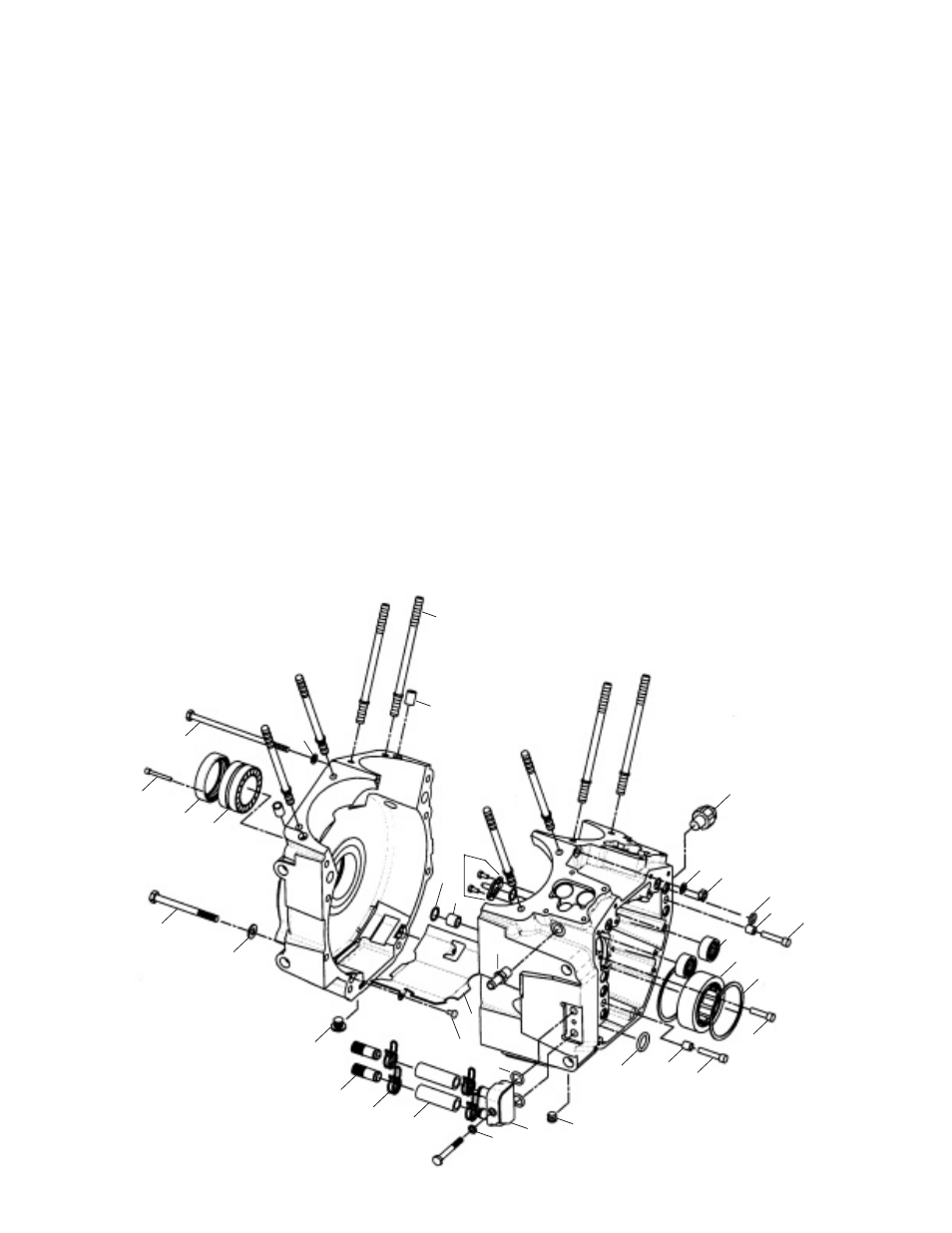

Replacement Parts for S&S Twin Cam Style Crankcases
