16 Hardware Installation Guide
Print Server Controls and Technical Data
Characteristics Values
Printer Connector - Epson Type B
Network Connection
logical:
physical:
- IEEE 802.5 (4/16 Token-Ring)
- RJ45 (S/UTP Cat.5)
- DB9 (STP, for example: IBM PN H7046 for TokenRing)
Operating Environment - Ambient temperature: 5 - 40 °C
- Relative humidity: 20 - 80 %
Dimensions - Length 115 mm
- Width 100 mm
- Height 30 mm
- Weight 185 g

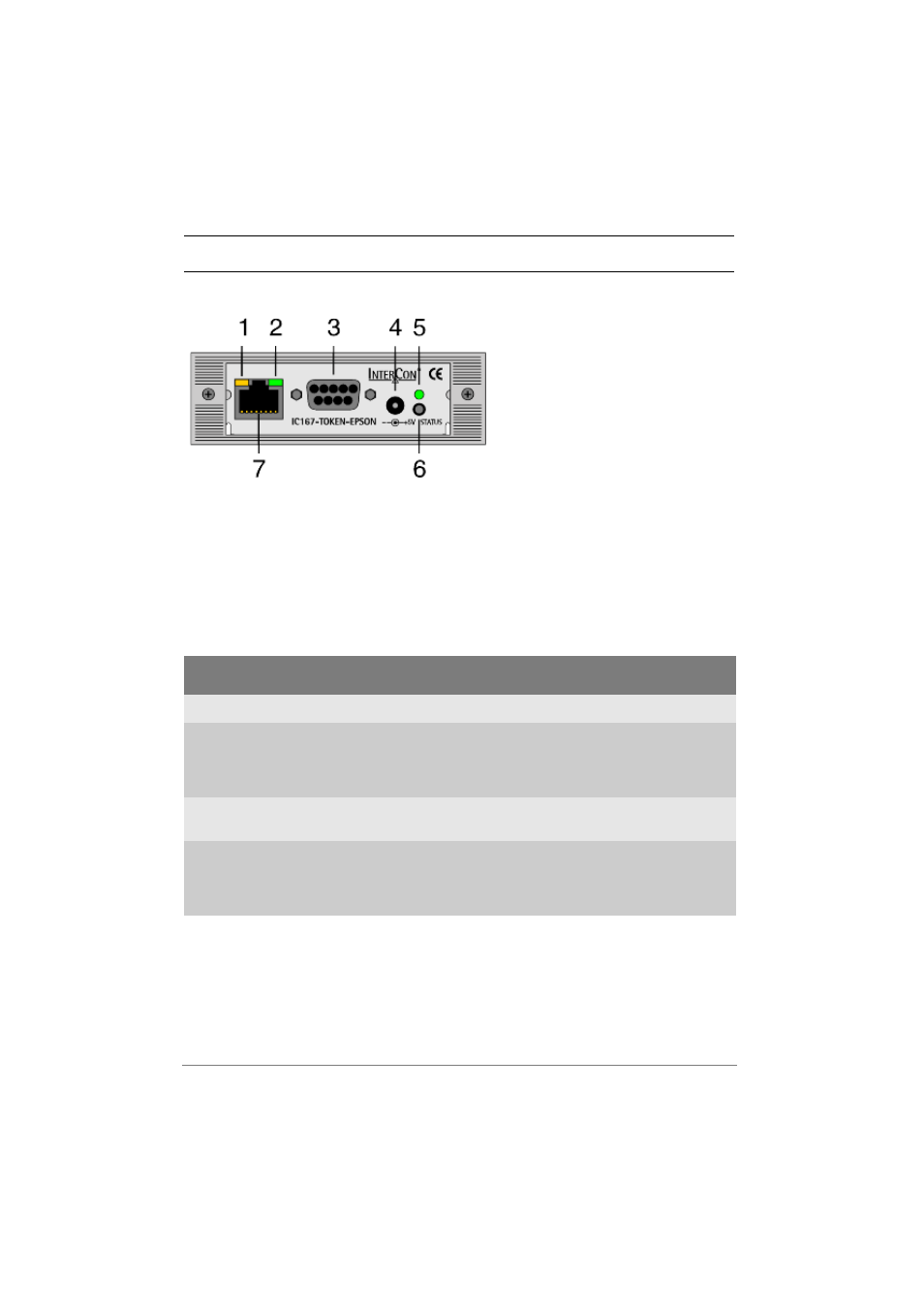

1) Network activity LED (yellow):
The LED lights up when data packets
are being received.
2) Status indicator LED (green):
The LED shows that the print server is
operational.
3) D-Sub connector for STP
4) Connector for SEH power pack
5) Link indicator LED (green):
The LED lights up when a (physical)
connection to the network is availably.
6) Status button
7) RJ-45 connector
