Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98/Me/2000
Page 15
©2001 SBC Advanced Solutions, Inc. All rights reserved.
5-6

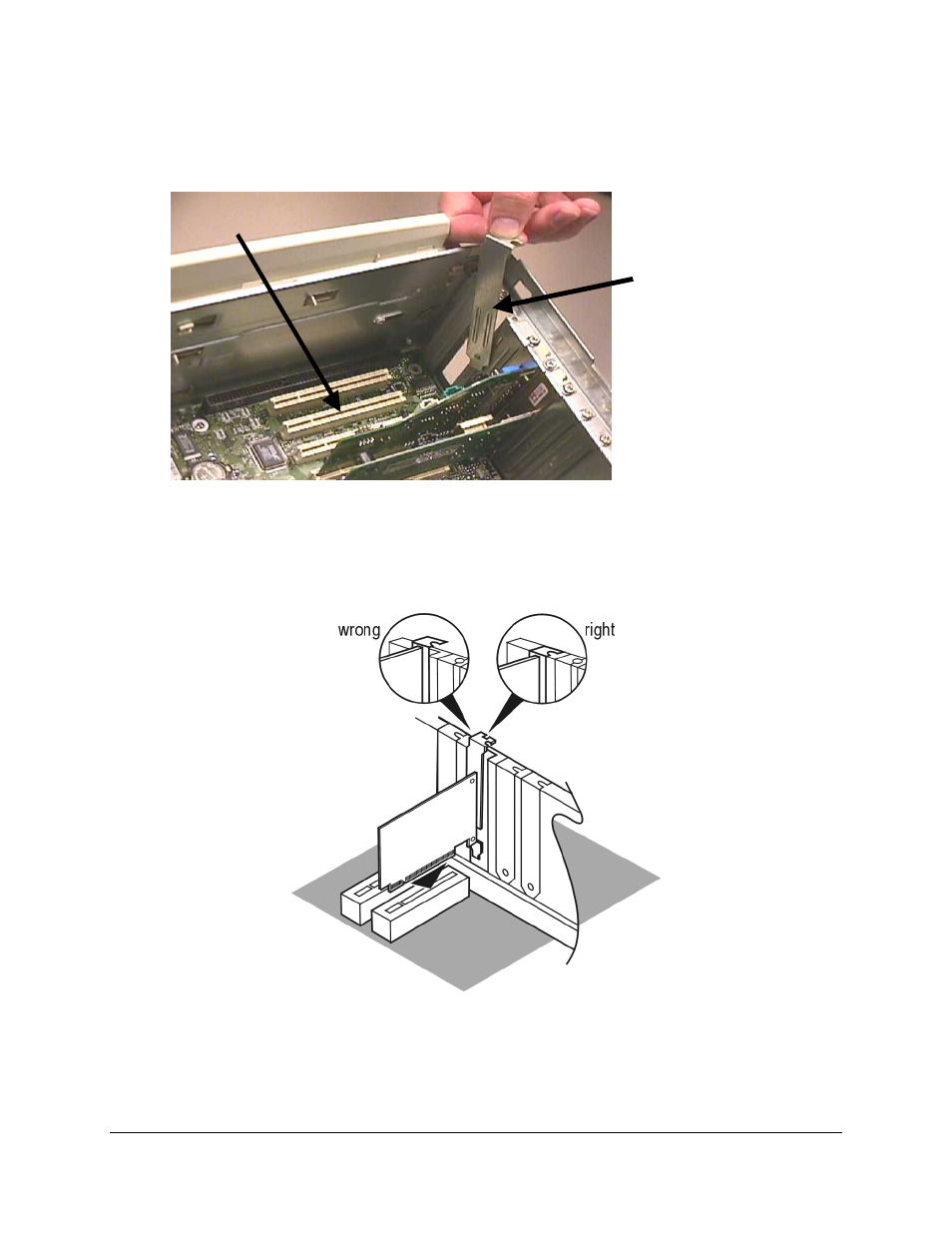

Remove the metal PCI slot cover from the unused PCI slot, and retain the screw.
PCI Slot
Remove PCI slot
cover
5-7
Carefully insert the Kingston® Ethernet Adapter into any empty PCI slot. Make sure the
card is completely seated by pressing firmly.
5-8 Verify that the end bracket is flush against the chassis. Make sure the gold connectors
along the base of the Kingston® Ethernet Adapter are completely and evenly inserted into
the PCI slot.
5-9
Fasten the card into the computer chassis with the screw you set aside earlier.
5-10 Replace the computer cover. Plug the power cord back into the electrical outlet and turn
on your PC, making sure the SBC Express CD is in the CD-ROM drive. Proceed to step
5-15.
