P
HYSICAL
S
PECIFICATIONS
SSD-D
XXX
(I)-4210 D
ATA
S
HEET
S
ILICON
S
YSTEMS
P
ROPRIETARY
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
All unauthorized use and/or reproduction is prohibited.
4210D-03DSR
P
AGE
2
F
EBRUARY
2, 2009
P
IN
L
OCATIONS

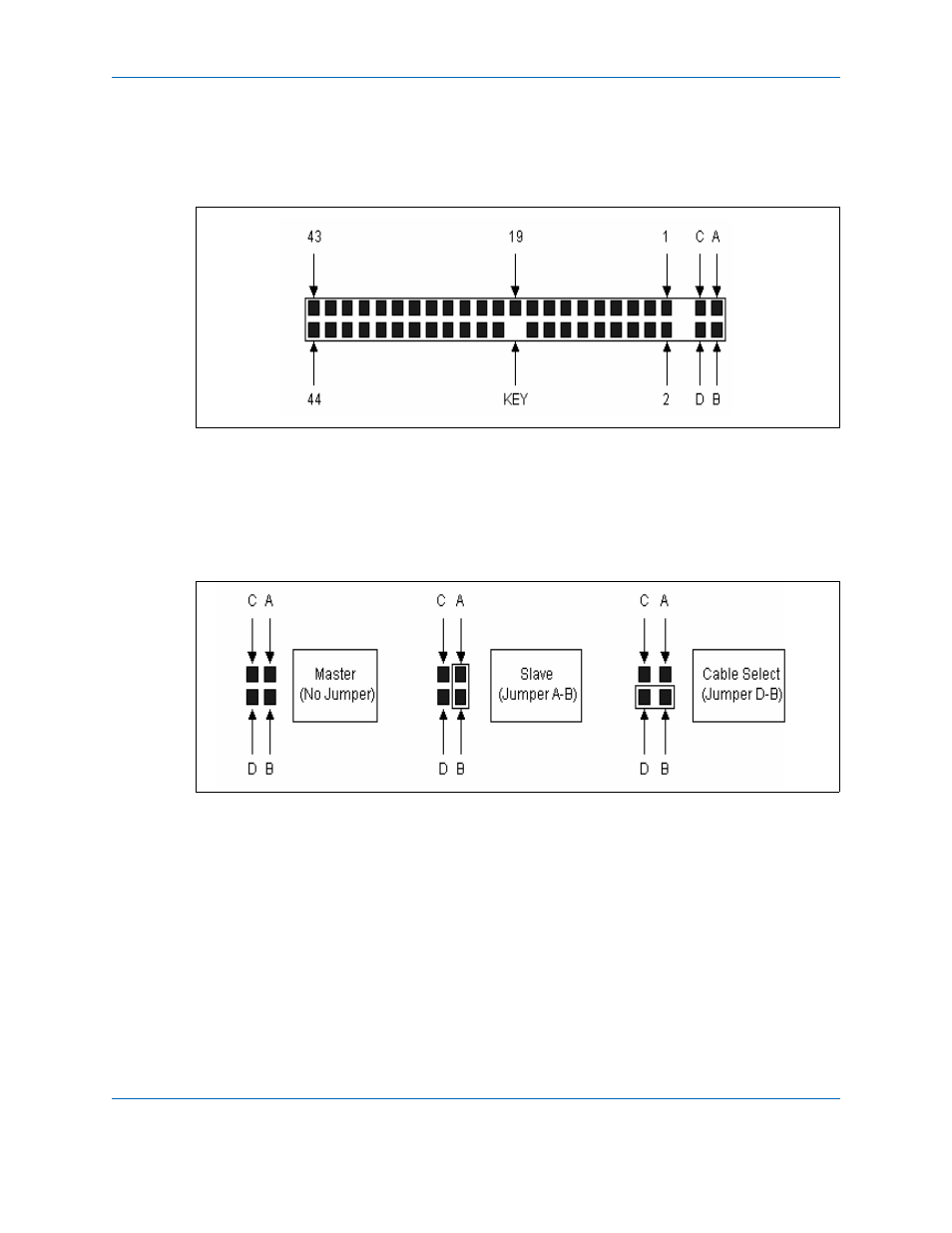

The following diagram identifies the pin locations of the 2.5" PATA Drive.
Figure 2: Pin Locations
J
UMPER
S
ETTINGS
The following diagram defines the SiliconDrive EP 2.5" PATA Drive jumper
settings.
Figure 3: Jumper Settings
