6

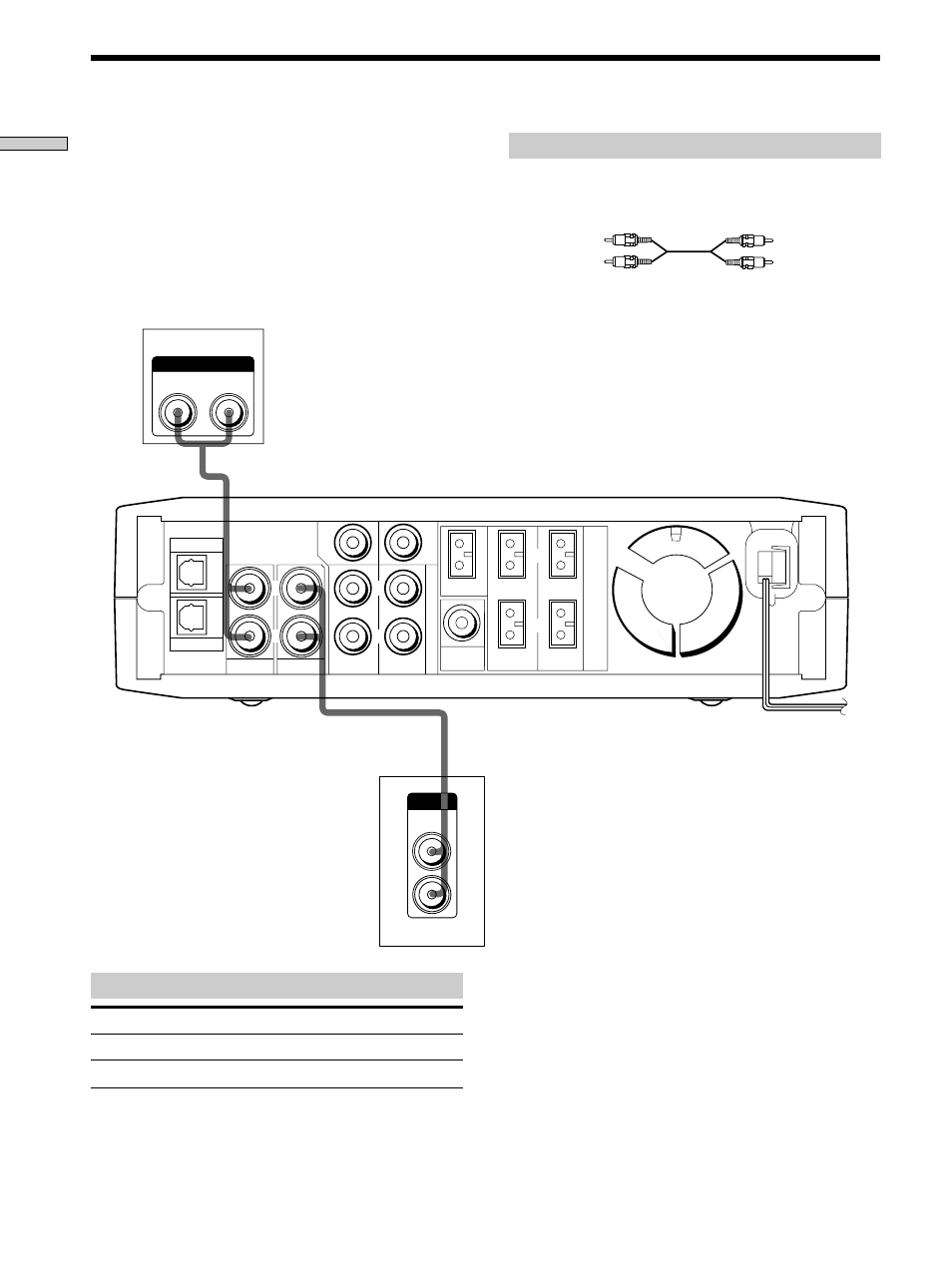

Hooking Up the Components
Jacks for connecting video components
Connect a To the
TV TV jacks
VCR VIDEO jacks
Video Component Hookups
Required cords
Audio cord (not supplied)
When connecting a cord, be sure to match the color -coded pins
to the appropriate jacks on the components.
R
L
L
R
L
R
IN OUT
R
AUDIO
IN
AUDIO
OUT
INPUT OUTPUT
L
AUDIO OUT
OUTPUT
з
з
DVD
AUX
TV VIDEO FRONT
CENTER WOOFER
REAR
CENTER
WOOFER
OUT FRONT REAR
5.1CH/SAT
SPEAKERS
IMPEDANCE USE 8-16
Ω
AUDIO OUT
OUTPUT
OUTPUT
AUDIO
OUT
R L
R
L
White (L) White (L)
Red (R) Red (R)
TV
VCR
