SVAT Electronics CV1002 - Manual (Page 2)

1
10
11
12
13
14
15
16
17
2
3
4
7
8
6
5
9
18
19
SVAT, ClearVu, and “now you can see”
are trademarks of SVAT Electronics.
©2006 SVAT Electronics.
All Rights Reserved.
SVAT Electronics
4080 Montrose Road
Niagara Falls, ON L2H 1J9
Toll Free: 1.866.946.7828
now you can see
Model #:
CV1002DVR
www.svat.com

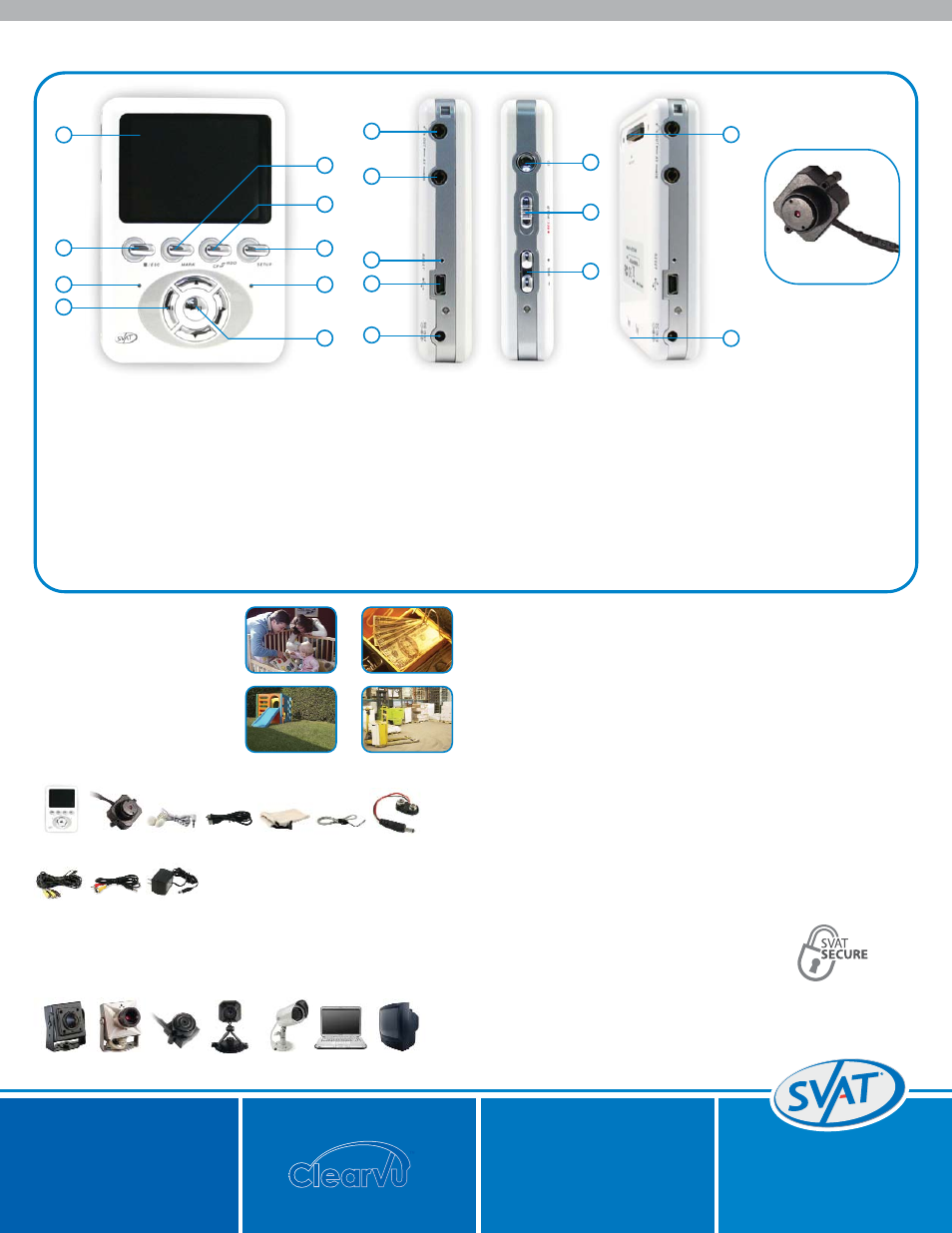

1. 2.5" LCD Display
2. ESC Button
Exits out of the menu when changing settings
3. Recording Status Indicator
Lights up red when in record mode
4. Navigational Buttons/Fast Forward & Rewind
Used to navigate through the menu, these
buttons are also used to control the playback of
a recorded movie
5. Mark Button
Used to highlight specific movies recorded
6. CF/HDD Switch
Switch between your CF Card and the optional
Hard Drive (Sold separately)
Handheld DVR System w/ Color Pinhole Camera
WHAT IS COMPATIBLE WITH THIS SYSTEM?
The CV1002DVR is compatible with TVs, VCRs, computers, all SVAT cameras with
RCA outputs and other SVAT systems including:
SPECIFICATIONS
HANDHELD DVR
Video Codec ................................................MPEG4 ASF file format
Resolution ......................................................352 x 240 or 704 x 240 @ 30FPS
Record Quality ..............................................Low / Medium / High
Recording Date/Time ..................................Overlay in the ASF files
Video Input/Output......................................1 CH composite video line in/out
Sampling Rate ..............................................16 KHz / 32 KHz
Audio Codec ................................................MP3 32 kbps / 128 kbps
Audio Input/Output......................................1 CH audio line in/out
Storage Media ..............................................CF card type 1 slot
Storage Media ..............................................Optional 1.8” 20 GB HDD
USB Type ........................................................USB 2.0 high speed (slave)
Recording Mode ..........................................Manual / Motion detect / Schedule
Motion Detection..........................................Multiple blocks / Adjustable
Sensitivity
Power Supply ................................................AC 100-240V 50-60Hz / DC5V 2.5A
Battery............................................................Rechargeable Li-ION 3.75V/1560mAh
COLOR CAMERA
Image Sensor ................................................1/3" CMOS Lens
Lens Size ........................................................F=3.6mm
S/N Ratio ........................................................>48DB
View Angle ....................................................52 Degrees
Resolution ......................................................380 Lines
Min. Illumination ............................................1.5 LUX @ F1.2
Power Supply ................................................9V DC100MA
Operating Temp ..........................................14°f to 113°f
DIMENSIONS
DVR: 4.125" x 2.875" x 0.8" ~ 0.35 lbs
Camera: 0.8" x 0.8" x 0.6" ~ 0.05 lbs
WHAT IS INCLUDED WITH THIS SYSTEM?
1 DVR 1 Color
Camera
Earphones USB 2.0
A/B Cable
Carrying
Case
Wrist Strap Battery Clip
CCDBW/
CCDCO
CMOS2BW/
CMOS2CO
CMOSBW CMOSIRCO CV65 Laptops
or PC’S
Any TV
or VCR
WHERE DO I USE THIS?
At home to watch your:
• Children • Seniors
• Spouse • Garage
At work to watch your:
• Supplies • Employees
• Money • Office
7. Setup Button
Changes the settings of the movies
8. Charging Status Indicator
Lights up red when charging, blinks when the
battery is almost empty
9. Enter/Play & Pause Button
Controls playback of the movies recorded
10. AV Out
Connect TV audio/video with AV Out to view
movies recorded on your TV
11. AV In
Connects a camera
12. Reset Button
Resets settings to factory defaults
13. USB Port
Transfer movies to your computer via USB cable
14. Power Jack
15. Power On/Off
16. Lock/Record
Lock function to stop other functions from being
activated while on, also used to record
17. Volume Control Button
18 Optional HDD Add-On Slot (Sold Separately)
Available 20GB hard drive add-on
19. CF Card Slot
Insert your CF card into this slot on the bottom for
storage of your movies
COLOR PINHOLE CAMERA
The CMOSCO comes with this
complete system.
30ft Extension
Wire
3.5mm to
RCA (male)
wire
2 Power
Adapters
• Mounting Hardware
• 1 Year Warranty
• Instruction Manual
• Online/Toll Free Tech Support
