Sennheiser Active Transmitter Combiner 8:1 AC 3200 - Manual (Page 58)

6
Connection diagram
Connection diagram

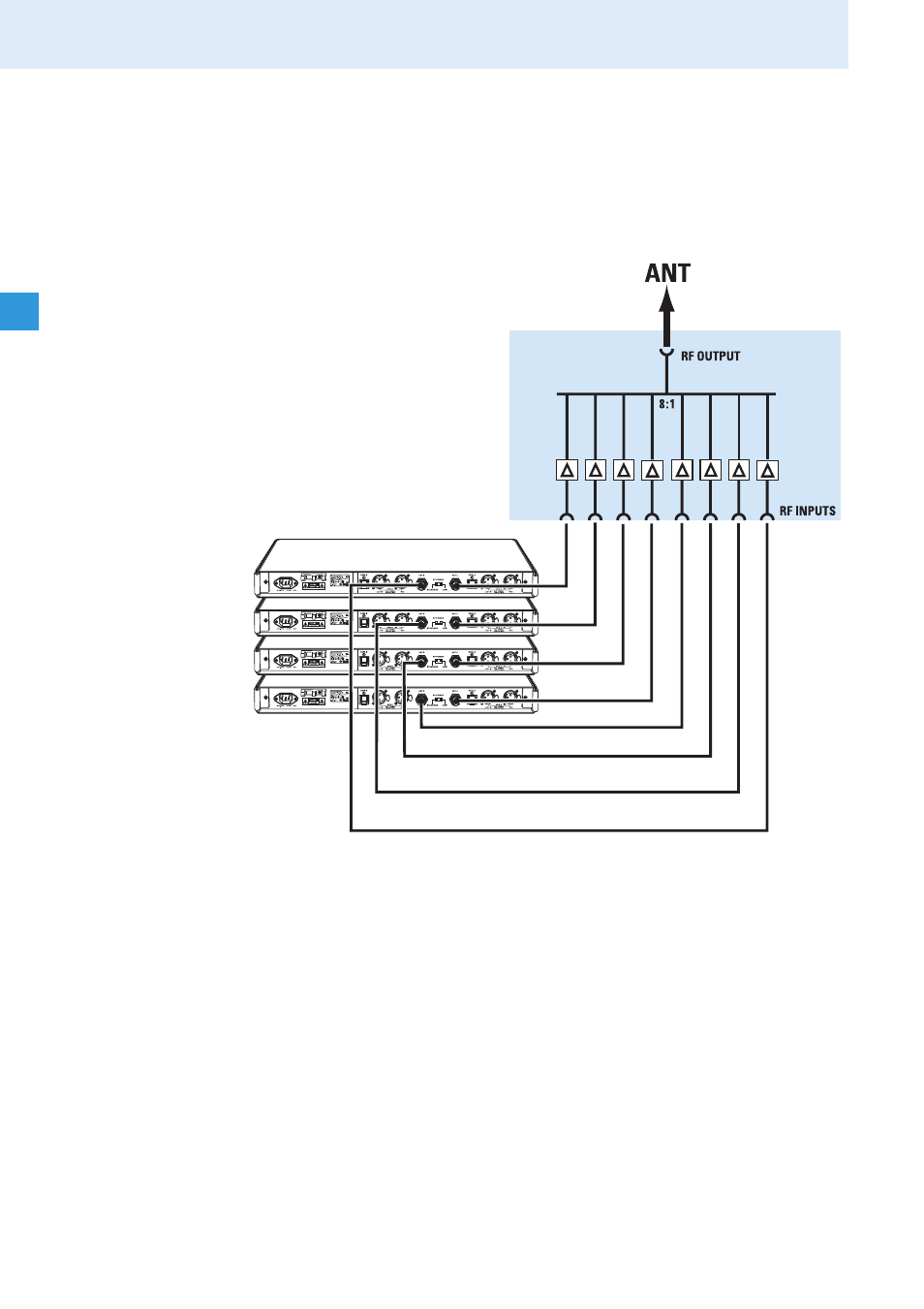

The below connection diagram shows the connections for an
8-channel system with a single antenna.
AC 3200
