Spalding 211948C User Manual
Page 11
01/04
P/N 211948C
11
1.

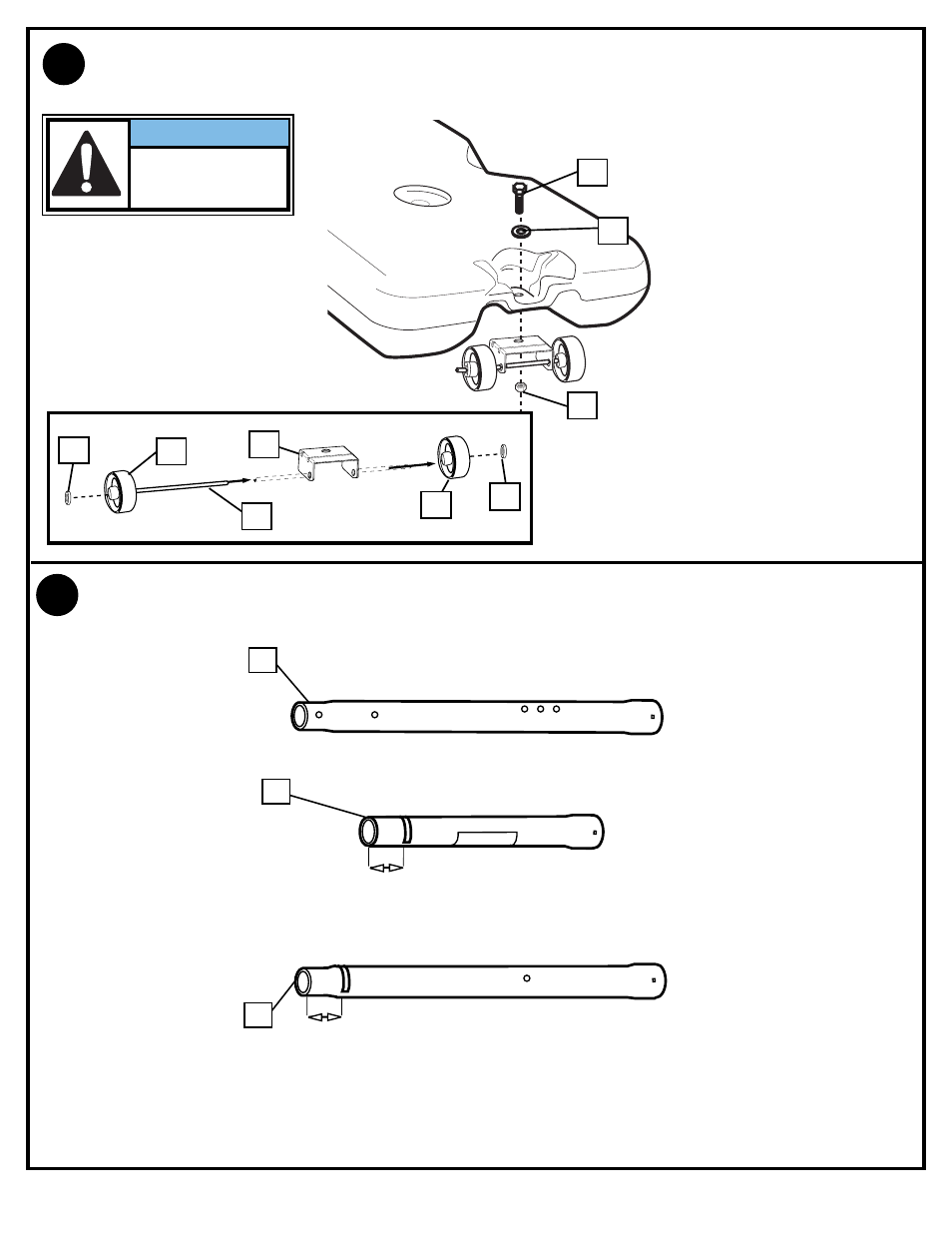

Install wheel axle (64) through wheel carriage (65) and install wheels (5) onto wheel axle (64) with spacers (6)
as shown. Secure wheel bracket as shown, a deep socket is recommended.
2.
18
13
34
5"
(13 cm)
MIDDLE
TOP
5"
(13 cm)
BOTTOM
1
2
3
IMPORTANT!:
DO NOT OVER
TIGHTEN
64
6
6
5
5
65
Mark pole sections with tape as shown.
