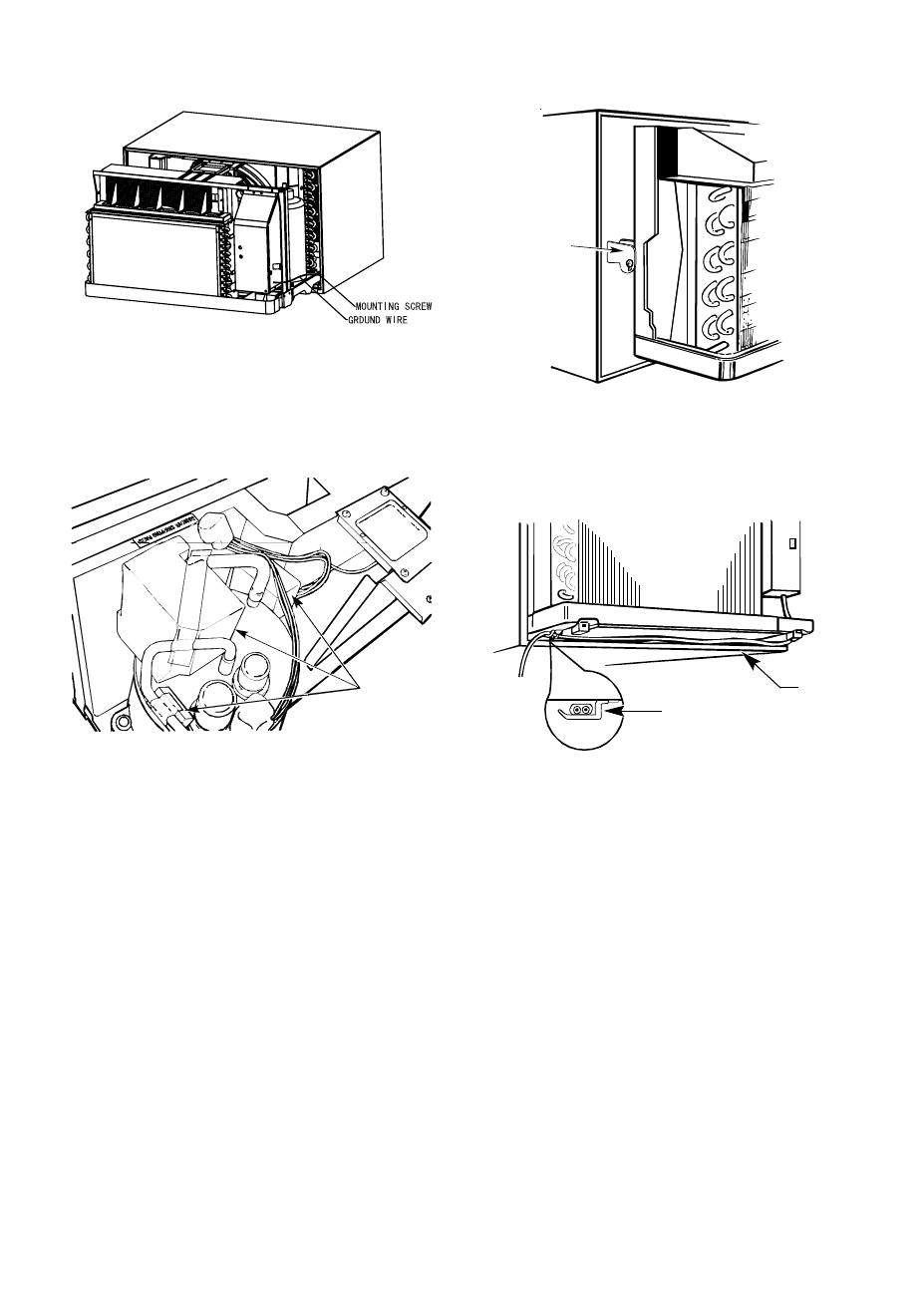

Figure 3
3. Remove shipping pads inside air conditioner next to
compressor. (See Figure B.)
Remove
shipping
pads
Figure B
4. Carefully slide the chassis into the sleeve. Ensure
that the ground wire is not pinched or in the path of the
condenser fan.
5. Loosen locking plate screw and rotate tab with tab
behind wall case flange (See Figure C) then tighten
locking plate screw.
Locking
Plate
Figure C
6. If outlet is on the left side of the unit. route power cord
as shown in Figure D.
Power
Cord
Clamp
Figure D
3
