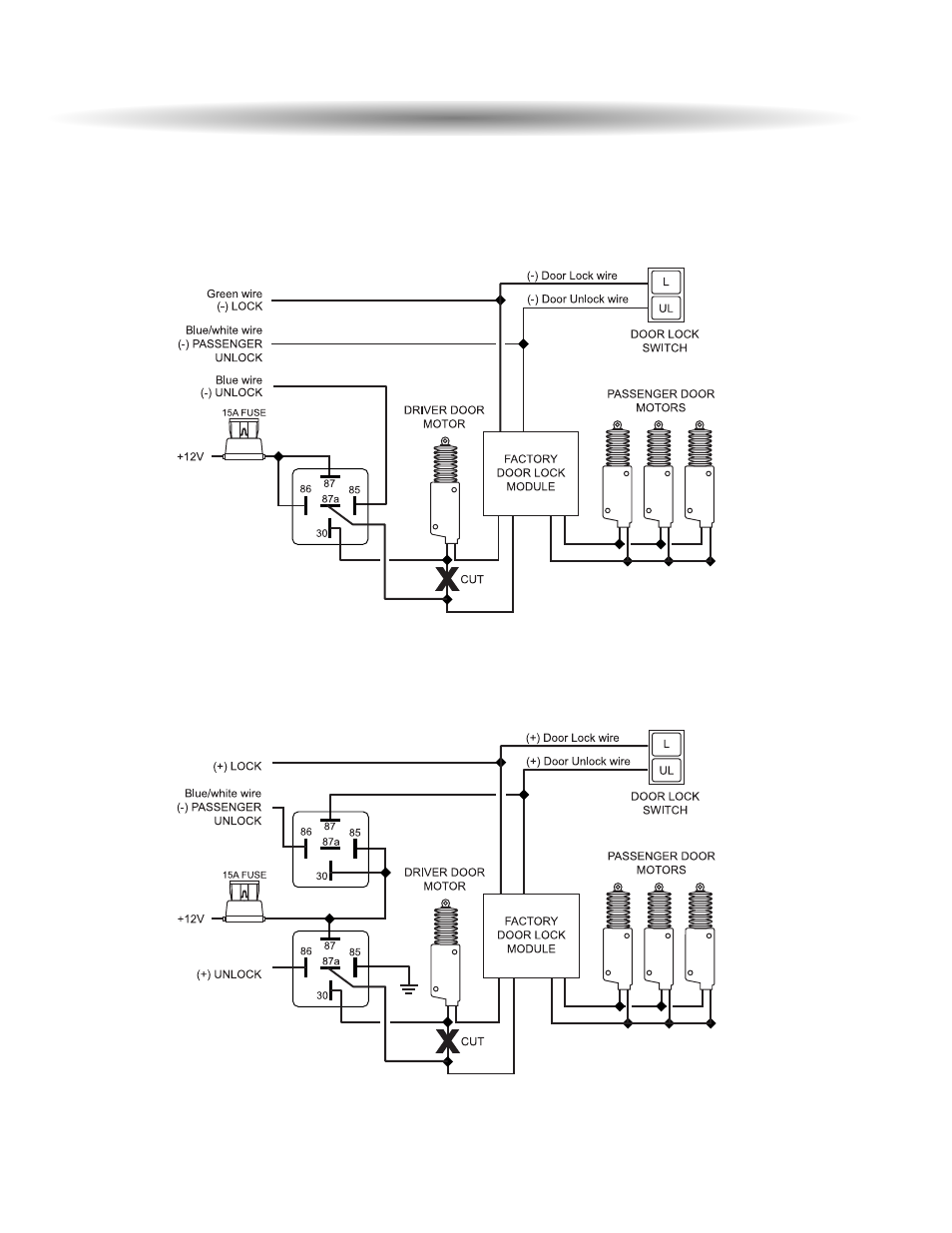

Two Stage Door Lock Diagrams
Two Stage Negative Trigger
Two Stage Positive Trigger
The VisionGuard 6000 is equipped with a dedicated Passenger Unlock output allowing Two Stage
Door Lock operation. When connected as shown below, disarming the system will unlock only
the driver’s door. Pressing the disarm button again will unlock all doors.
Green Wire
Blue Wire
