Hooking up video components
If you connect your TV to the MONITOR OUT jack, you can watch the video from the selected input
(page 17). For details on the required cords (A – E), see page 5.

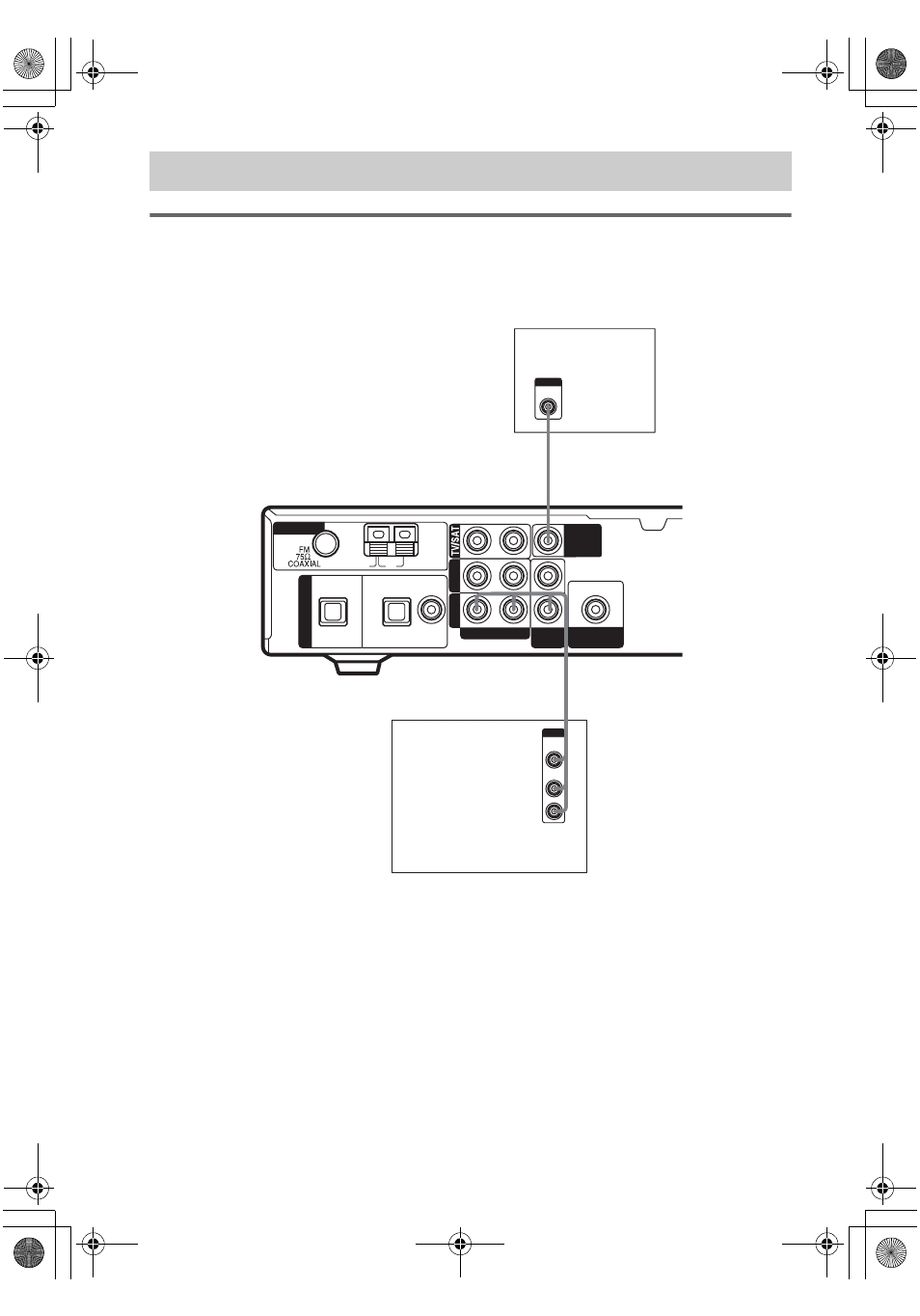

1b: Connecting components with only analog audio jacks
AM
U
OPT IN
TV/SAT
DVD
VIDEO
AUDIO IN
DIGITAL
ANTENNA
DVD R L
VIDEO
IN
SUB
WOOFER
OUT
MONITOR
OUT
OPT IN COAX IN
C
VIDEO
INPUT
B
VIDEO
OUT
AUDIO
OUT
OUTPUT
R
L
TV monitor
VCR
