XE Series Elliptical
11

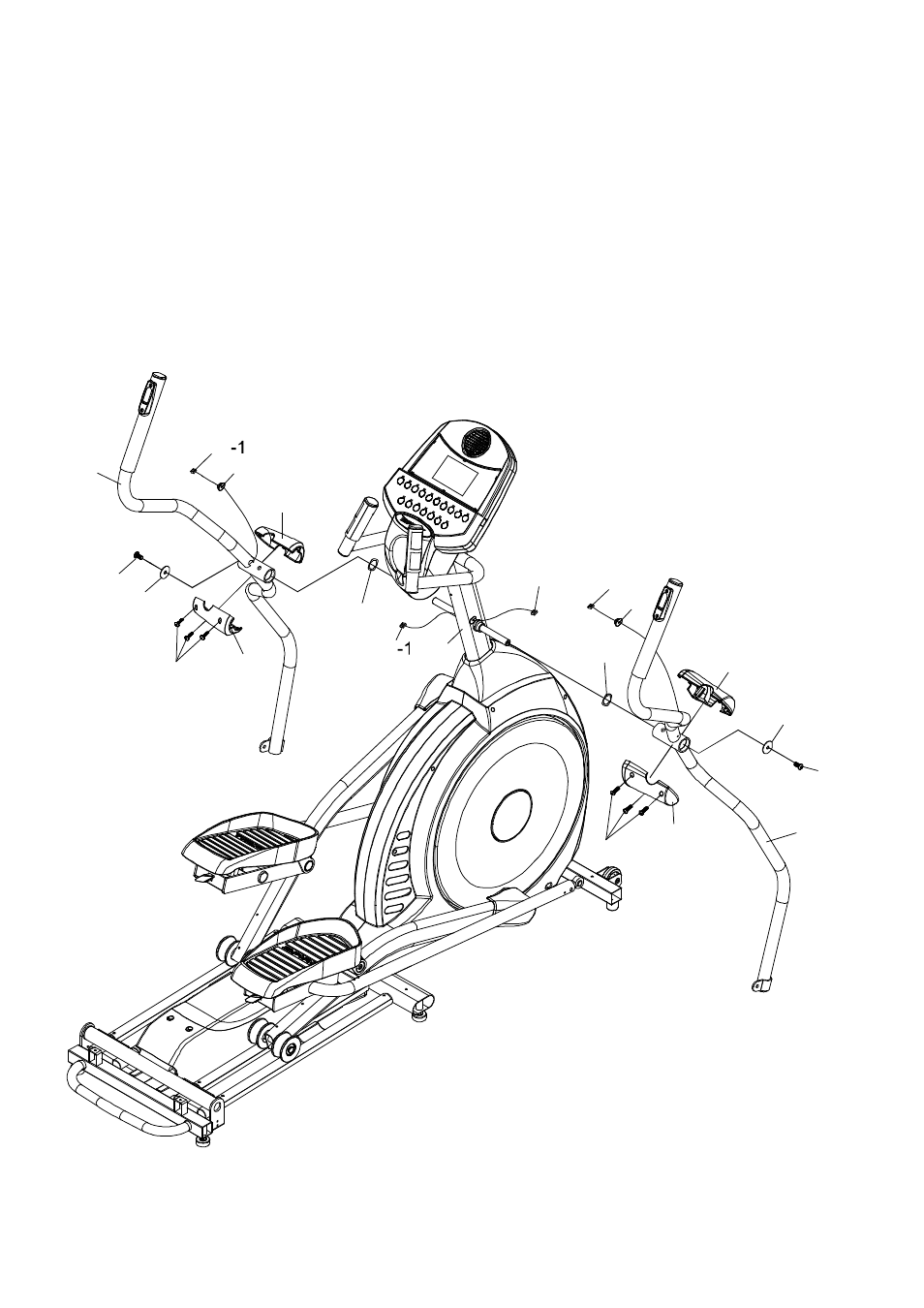

STEP 2: Handlebar Assembly
1. Install the two 17m/m Wave Washers (103) onto the Left and Right side of the Handle Bar axle.
2. Slide the Left (10) and Right (11) Handle Bars onto the appropriate side of the axle. The
handlebars have a small sticker on them indicating L (left) and R (right).
3. Install two 3/8 X 30mm Flat Washers (99) onto the two 3/8 X 3/4 Hex Head Bolts (123) and
install, and tighten, in the threaded holes in the ends of the axle.
4.
Connect the two wires on the L&R sides together and store the excess, including plastic
connectors, back into the console mast. Place the rubber grommets (145) over the wire and
snap it into the hole in the console mast. Install the Front Handle Bar Covers (68 left, 69 right)
and Rear Handle Bar Covers (68-1 left, 69-1 right) over the Handle Bar axle connections with
the six 3.5x10m/m Self Tapping Screws (107).
69
69-1
107
68
107
68-1
103
99
10
123
123
103
11
99
12
147
145
147
145
146
146
