Snom M9 - Manual (Page 8)

14
snom m9 Quick Start Guide
E
N
G
L
I
S
H
15
snom m9 Quick Start Guide
E
N
G
L
I
S
H

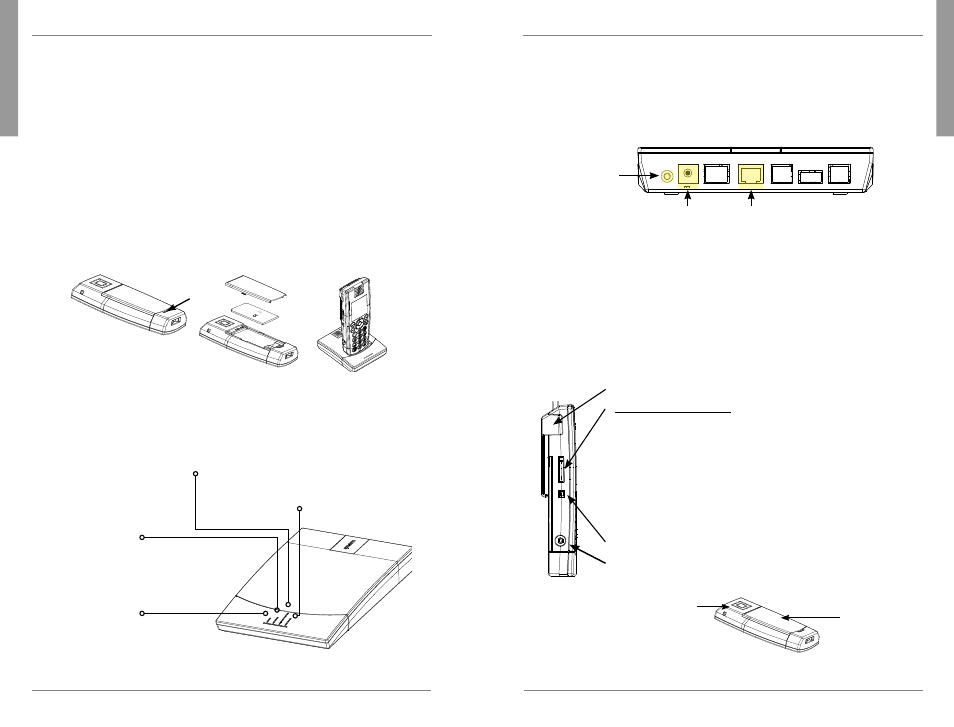

i
nstallation
Before first use, the handset battery should be charged
fully. This will take approximately 8 hours.
p
reparation of handset
1. Lift off the battery cover.
2. Insert the battery pack with the electrodes in the top left corner.
Replace the cover.
3. Connect the 5.9 V power supply of the charger to the wall outlet
first, then to the charger, and place the handset in the charger.
3. 1. 2.
snom rechargeable Lithium-Ion battery
b
ase station
Power LED
– lit when on
Call LED
– flashes during firmware update
– lit when call in progress
– blinks slowly when waiting for
handset registrations
Registration LED
– lit when the base
station is registered
Network LED
– flashes during boot,
indicating that the base
station has received an IP
address
1. When the handset is ready for use, connect one end of the network
cable with the NET port on the back of the base station and the
other end to a LAN port in your network (switch, router, etc.).
2. Connect the 5 V power converter to the wall outlet first, THEN to
the base station.
NET RESET 5V DC
Power
connector
Reset
button
Net port
3. The power indicator comes on and the base station begins to boot.
4. When the base station has booted up, the "Call" LED will start
to blink, indicating that the base station is waiting for handset
registration.
h
andset overview
Side view
Belt clip
Volume adjust key+-
1. On idle screen press „+“ to show system status on-
screen (IP address, MAC address/serial number)
2. Adjust volume
• of ringer when call is ringing
• of speaker when in call
Headset jack connector 2.5 mm
Speakerphone key (on/off)
Back view
Loudspeaker
of
speakerphone
Battery cover
