Specifications
CVC-7WMTDV CVC-7WMTD
Horizontal Resolution 480 TV lines 380 TV lines
Image Device 1/3” Sony HAD advanced image sensor 1/4” CCD format
Min. Object Illumination 0.03 lux 1 lux
Effective Picture Element 470 K 210 K
Backlight Compensation Active-Turbo Active
Electronic Shutter 1/60-1/100,000 seconds 1/60-1/100,000 seconds
Built In Lens DC auto iris varifocal lens 4-9mm, F1.6 4mm, optional lenses available
Video S/N Ratio Greater than 50db Greater than 48db
Weatherproof Standard IP67 IP67
Operating Environment -20˚F to 122˚F -20˚F to 122˚F
TV Format NTSC, color NTSC, color
Video Signal Output 1.0Vp-p/75 ohms (BNC) 1.0Vp-p/75 ohms (BNC)
Power Consumption 200mA 110mA
Power Supply 24V AC @ 20 VA or 12V DC regulated 12V DC regulated power supply
power supply (UL & CSA listing) included (UL & CSA listing) included
Weight 3.3 lbs 3.2 lbs

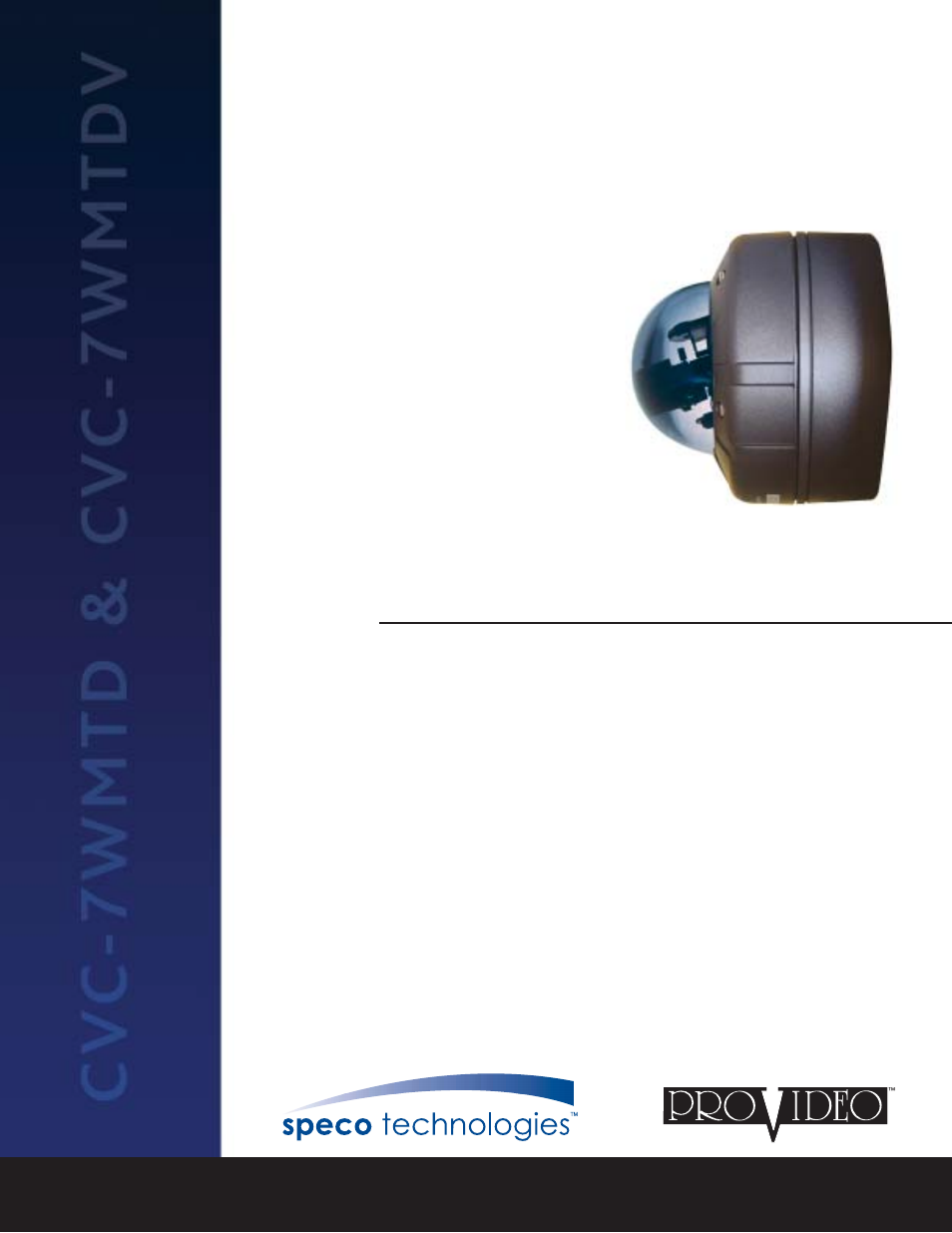

CVC-7WMTDV
Vandal-Resistant High Resolution Wall/Ceiling Mount
Color Dome Camera with Auto Iris Varifocal Lens
Also available:
CVC-7WMTD standard resolution
• Wall or ceiling mounting through the use
of a unique internal 3-way camera bracket
• Flush or surface mounting using the
supplied surface mount adapter box
• Supplied with a tinted and clear “lined”
dome to accommodate a wide range of
lighting conditions
• Conduit compatible
• Safety strap holds dome cover in place
while making adjustments
• Fits over a standard 2-gang box
