Snapper 20229 - Manual (Page 3)

2450 PSI Pressure Washer
3

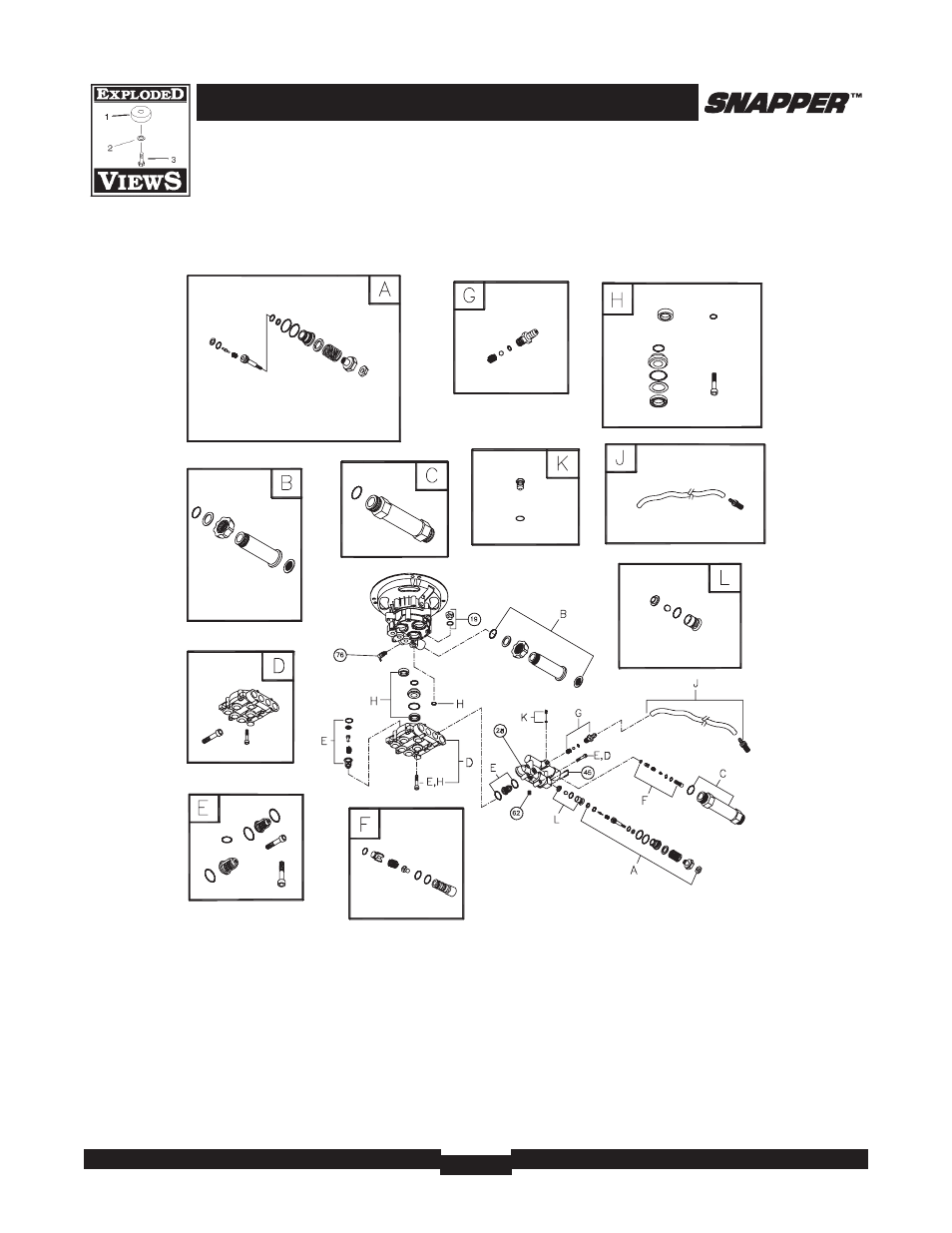

EXPLODED VIEW AND PARTS LIST - PUMP
Item Part # Description
19 190571GS CAP, Oil
28 190627GS MANIFOLD
45 190578GS PIN
62 190581GS CAP, 1/8
76 194298GS THERMAL RELIEF
77 190586GS OIL BOTTLE (not shown)
A 190594GS KIT, UNLOADER STEM
B 190632GS KIT,WATER INLET, ALUM
C 190634GS KIT, OUTLET, ALUM
D 193808GS KIT, HEAD BRASS
Item Part # Description
E 193806GS KIT, CHECK VALVES
F 190592GS KIT, INLET CHECK
G 190593GS KIT, CHEMICAL INJECTION
H 193807GS KIT, SEAL SET
J 189971GS KIT, CHEMICAL HOSE
K 193971GS KIT, PIPE FITTING
L 193972GS KIT, UNLOADER SEAT
NOTE: Item letters A - L are service kits and include all
parts shown within the box.
