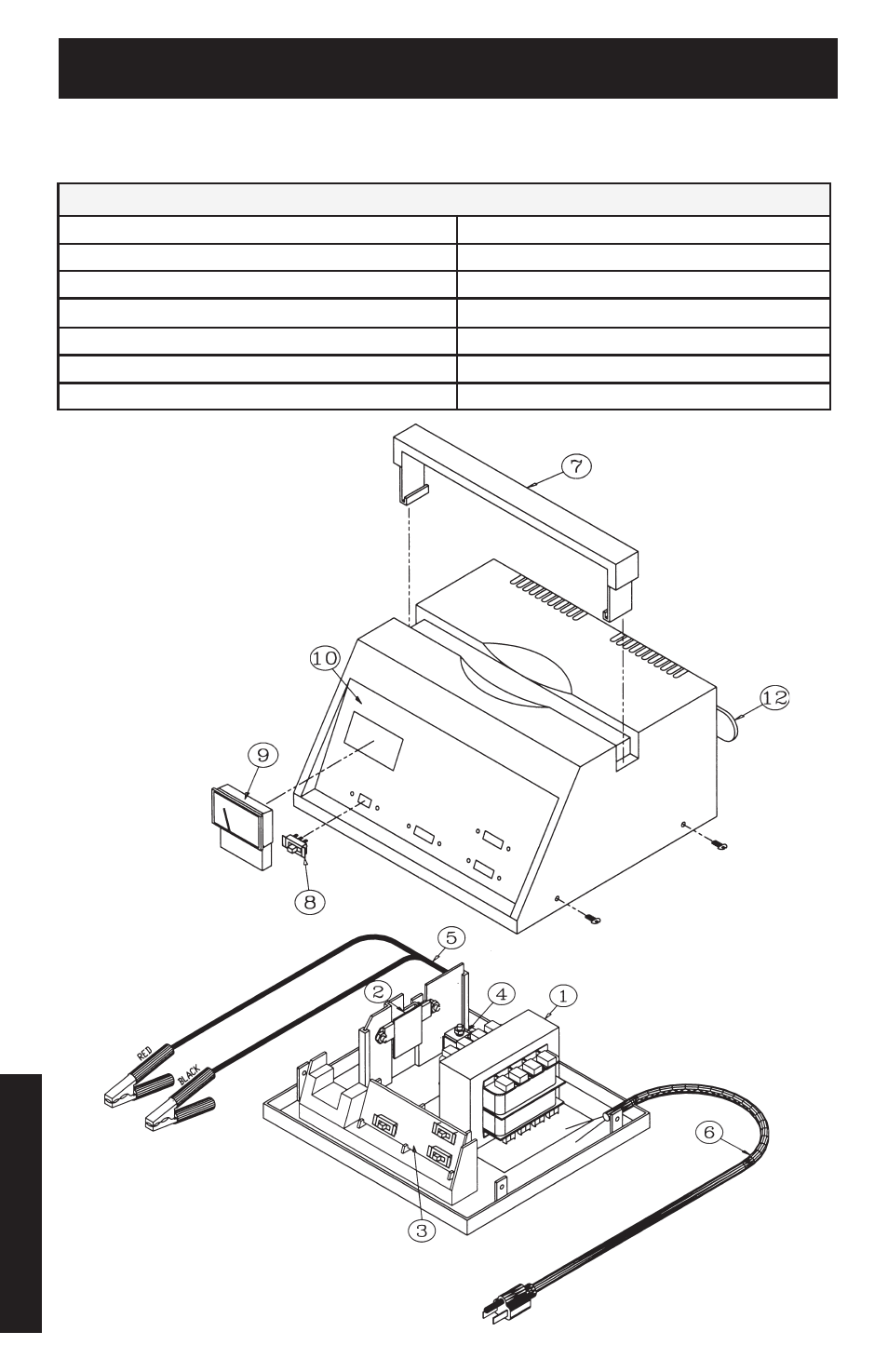

This section shows an illustration of your battery charger. Use it to become familiar
with where all the parts are located, and what they look like.
Item
1
2
3
4
5
6
Replacement Parts List Model 713201
Description
Handle
Switch - left DPDT
Meter
Faceplate
Owner's Manual
Cord Wrap Cleats
Part Number
3599000270
0499000060
5399100095
0899001078
0000000600
1199004390
Item
7
8
9
10
11
12
Description
Transformer
SCR control Module
PC Board Asm (SWITCHES)
Circuit Breaker
Output Cord
AC Powercord
Part Number
93026487
2299000992
2299000991
3999000089
3899000738
90026116
