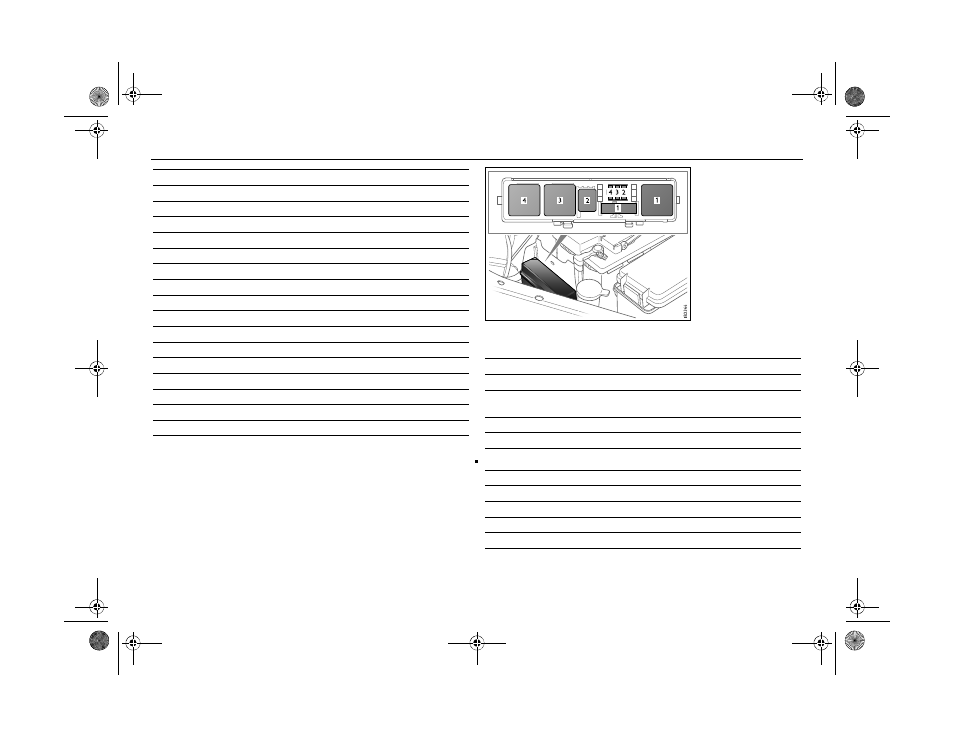

Fuse panel in front of battery 3
Relays
R 1 Washer fluid pump, windshield
R 2 -
R 3 -
R 4 -
R 5 Flash-to-pass
R 6 Horn
R 7 -
R 8 Starter motor
R 9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window 3
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 -
R14 Washer fluid pump, headlights 3
R15 -
R16 -
No. Amp. Function
1 - Air pump, secondary air 3
2 20 Fuel pump; preheated oxygen sensors (lambda
probe)
3 10 A/C compressor
4 30 Main relay
Relays
1 -
2 A/C-compressor
3 Preheated oxygen sensors (lambda probe)
4 Main relay, engine (ECM/EVAP/injectors)
