OPERATION AND MAINTENANCE
SETTTING RAKE TINE
WHEELS FOR THATCHING
VS. RAKING
1.
1..

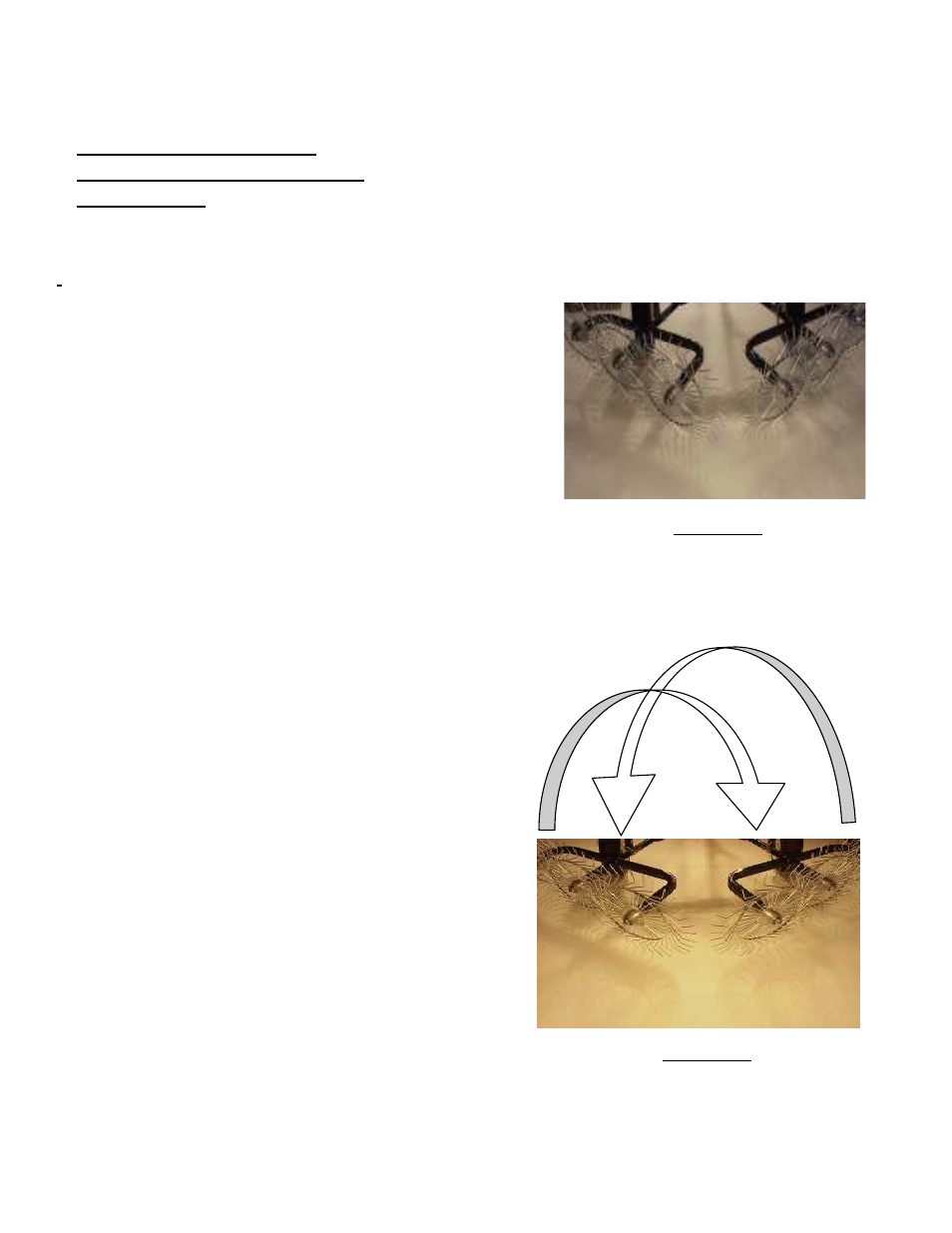

Acreage rake has been assembled for
raking. See figure 14. Note the direction of the
tine tips.
To position rake tine wheel assembly for
thatching, remove lock pin from both lift
arms and remove both rake tine wheel
assemblies from rake. Take the left rake tine
wheel assembly, flip it over (rotate 180
degrees), and install on the right lift arm.
Take the right rake tine wheel assembly,
flip it over, and install on the left lift arm.
See figure 15. Note the position of the
tines. Make certain tips rotate in the same
direction – towards the center of the rake. 2.
Flip Each Arm 180 degrees
Figure 15
Figure 14
