303 x6, 304 x6 – Smooth Fitness 675 User Manual
Page 15
www.smoothfitness.com
15
ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.

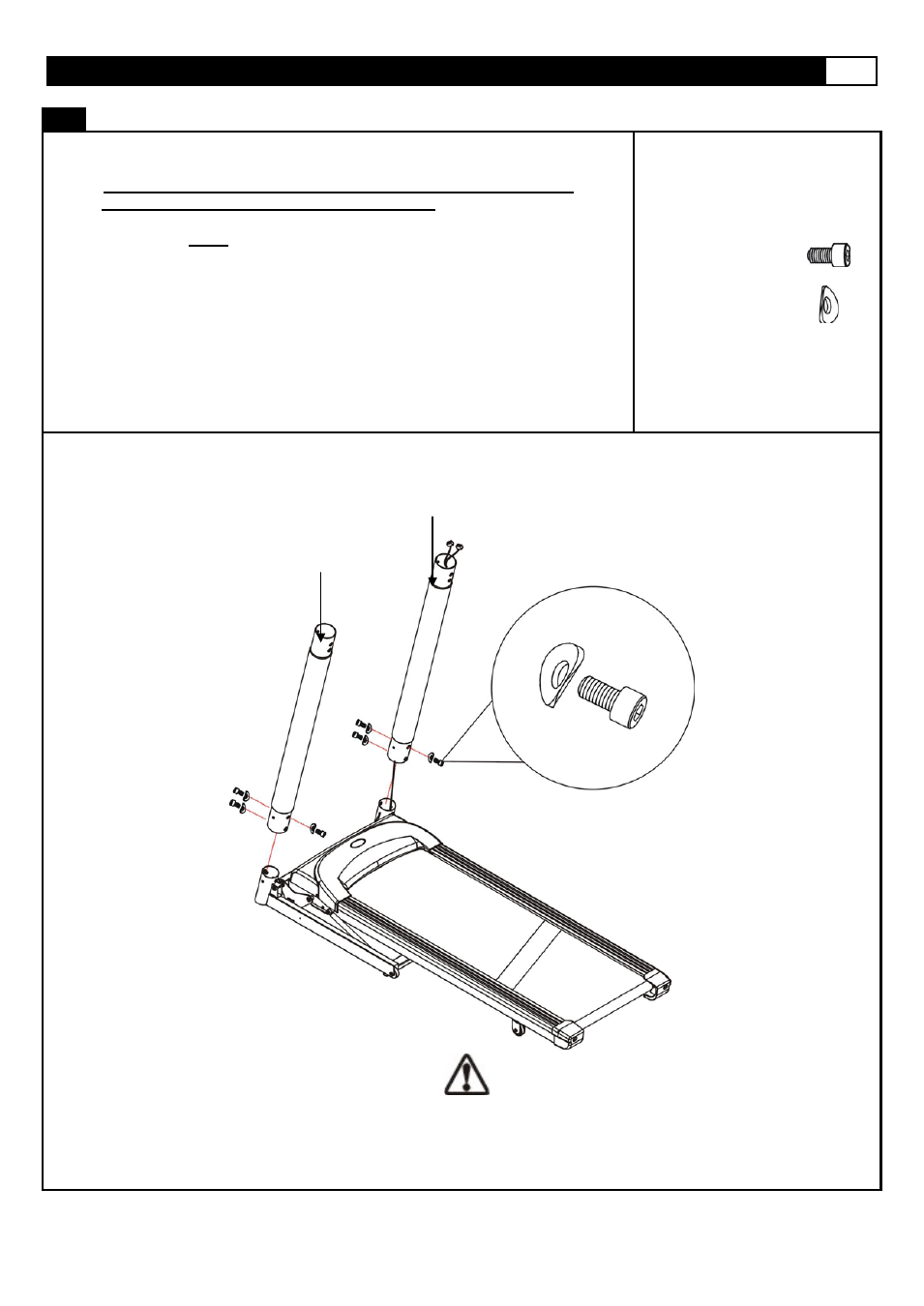

STEP1: Assemble Console Mast to Base Frame.
NOTE: Make sure all wires are recessed into the frame. DO NOT trap or
pinch. DO NOT tighten any bolts until STEP2.
When attaching the Right upright (301) first attach the Lower Console Wire to the
fish wire in the upright. This will allow you to pull the data cable up through the
upright during installation.
1). Attach Left and Right Uprights into base frame, and secure using 6 x
M8x15mm Bolt (303) AND 6 x M8 Curve Washer (304).
Note: Hand tighten only do not fully tighten the bolts until step 2 is complete.
303
X6
304
X6
Bolts should be hand tight only
Green plastic wrap
Clear plastic wrap
