6 9.45ST TREADMILL

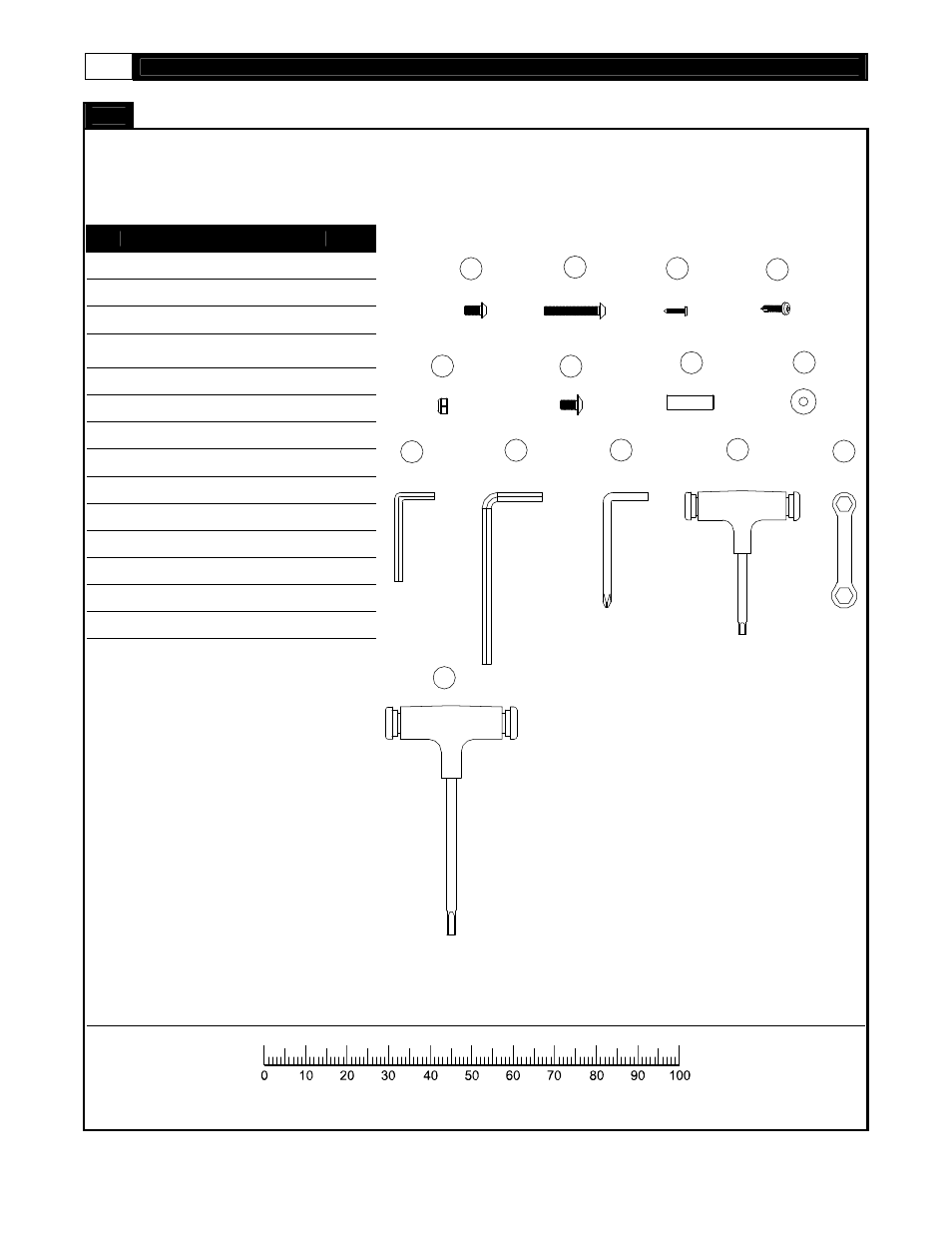

SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish between
the various types of screws and bolts, use the scale below to measure them and compare them to
the sizes listed.
No. Description Qty.
845 846
826
B C E A D
F
807
843
805 806 804
804 M8 × 15mm Bolt 2
805 M8 × 50mm Bolt 12
806 # 8 × 20mm Screw 18
807
4 × 15mm Thread Cutting
Screw
19
826 M8 Nylon Nut 2
843 M8 × 15 mm Allen Head Bolt 4
845 13 × 42mm Shaft 2
846 #8 × 23mm Washer 2
A 5mm Allen Key 1
B 8mm Allen Key 1
C Screwdriver 1
D 5mm Allen Wrench 1
E Spanner 1
F 6mm Allen Wrench 1
MILLIMETERS
