Control panel and indicators

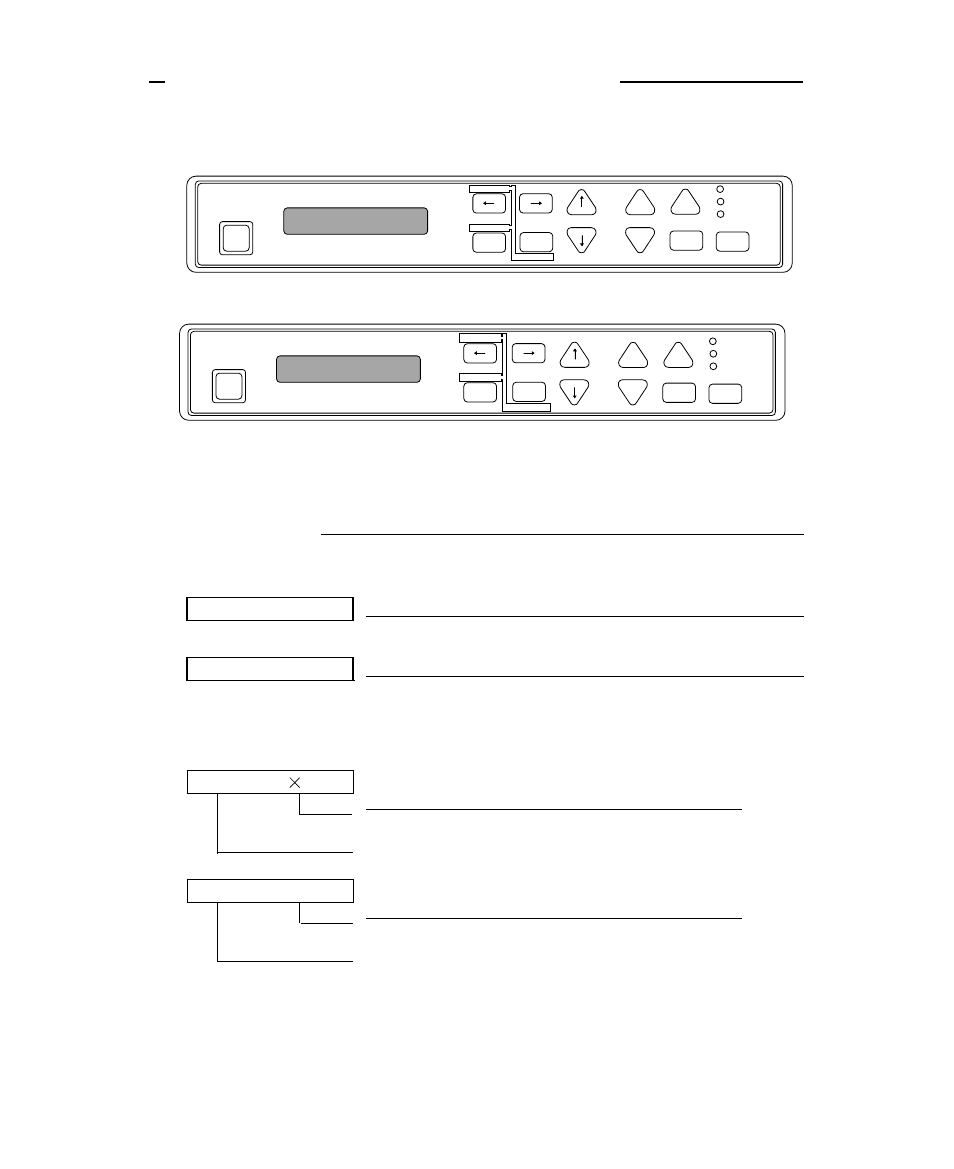

Standard Panel
Alternate up-side down reverse panel
Note: The alternate reverse panel installation instruction is described in Appendix D.
❏ Indicators
• Display window Liquid Crystal Display (LCD)
Displays status and errors during operation and menus in the setup options.
PARK
BIN
TOF SET
QUALITY
ENTER
SETUP M.RLF
LF M.LF FF
TEAR OFF RLF ON LINE
P . OUT
ON LINE
POWER
EXIT
ALT
L C D
RESET
TOF SET
BIN
PARK
ENTER
ALT SETUP
M.RLF
LF M.LF FF
TEAR OFF RLF ON LINE
P.OUT
ON LINE
POWER
EXIT
QUALITY
L C D
RESET
The followings are some examples of the display messages.
If the printer is in the offline mode, the following appears on the display.
Status message
This indicates that the printer is in offline and paper out status. P.OUT FANFOLD
Warning message
This indicates that the printer cover is open. Close the cover to
resume the operation . COVER OPEN
Status message for fanfold continuous paper
This column indicates the page length; and the paper widlh.
This indicates the type of paper selected is fanfold continuous
paper.
FANFOLD 11 15
Status message for single sheets paper
This indicates a paper size; B5 through A3 depending on the
designated paper size (default A4) selected in the setup options.
This indicates the type of paper selected is single sheet paper.
MANUAL, BIN 1, BIN 2, BIN 1+2
MANUAL: A4 P
