CAMERA INSTALLATION

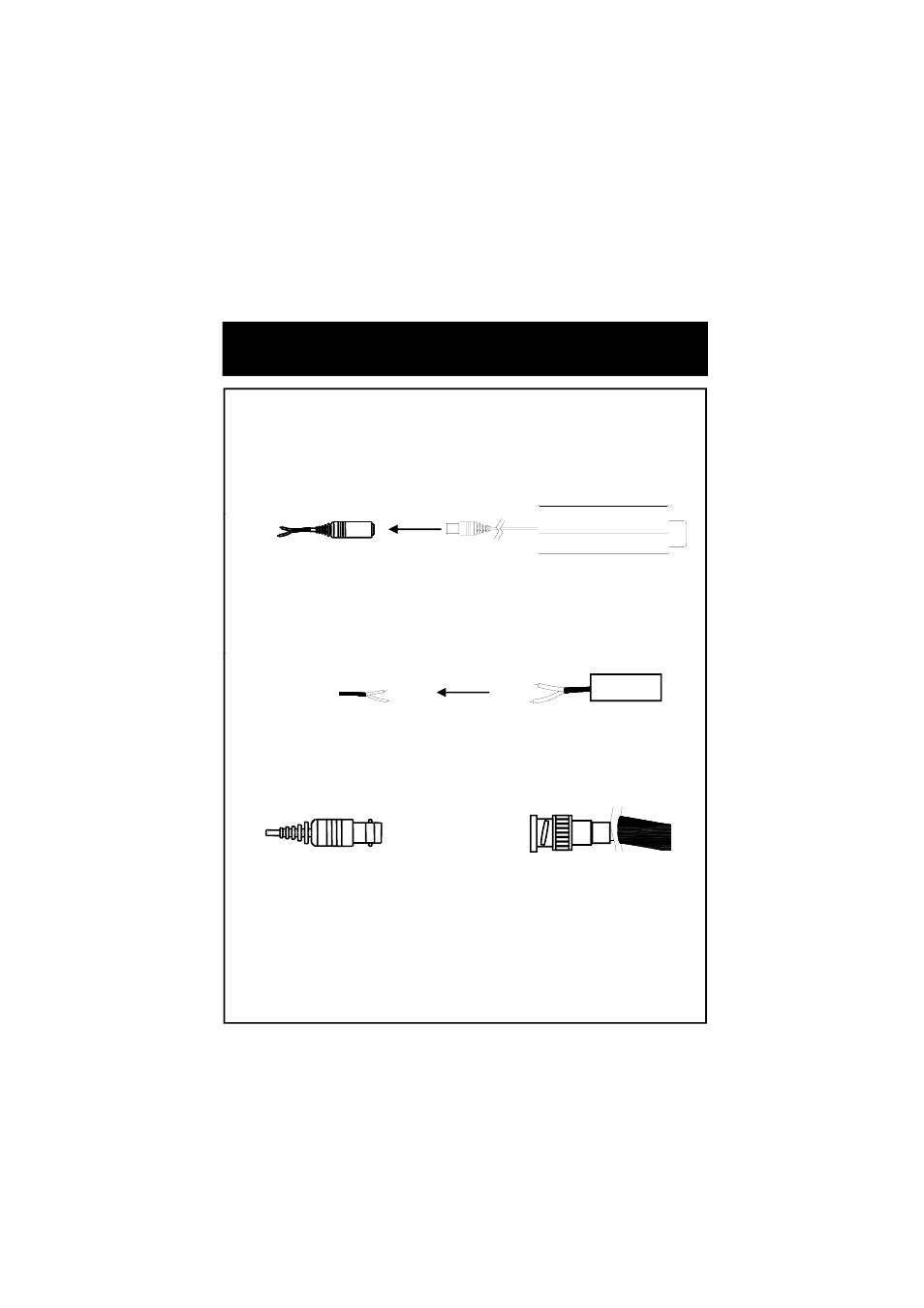

CONNECT POWER CABLE
1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)
CONNECT
POWER INPUT:RED
2. WHEN USING 24 VOLTS AC (20 Volt Amps)
-CONNECT ACCESSORY CABLE TO THE POWER JACK
AND CONNECT 24V AC TO THE LEAD
POWER SUPPLY
CONNECT
CENTER:(+)
3. CONNECT VIDEO CABLE
-CONNECT BNC CABLE TO THE BNC JACK.
CONNECT
BLACK:(-)
POWER RED(+)
POWER SUPPLY
AC 24V
YELLOW:VIDEO OUT
5
