Technical Information
Fixture*:
Basin area:
Bathing well
46-1/4 ″ (1175 mm) x 20-1/2″ (521 mm)
Top area 52-1/4 ″ (1327 mm) x 22-1/2″ (572 mm)
To overflow:
Water depth
11 ″ (279 mm)
Capacity 34 gal (128.7 L)
* Approximate measurements for comparison only.
Model Door maximum
width Door maximum
height
71140115
71140125
71240115
71240125 56-3/4 ″ (1441 mm) 56-1/2 ″ (1435 mm)
Installation Notes
Install this product according to the installation guide.
Product is designed to be used with a single-handle mixer
valve with an escutcheon cover not to exceed 7-3/4
″ (197
mm) in width.
To be ADA compliant, install according to the requirements of
the Americans with Disabilities Act (ADA). Use only ADA
compliant components.
Studs should be positioned roughly as shown.
Bath cannot be installed without the wall surround.
The width of the module gets 5/8 ″ (16 mm) narrower at the
back. Furring strips (approximately 1/4 ″ (6 mm)) should be
used at the back corner studs if drywall will overlap the nailing
flange.
30" (762 mm)
15-1/4"
(387 mm)
8"
(203 mm)
8"
(203 mm)
14" (356 mm)
60-1/8" (1527 mm) Min
60-1/4" (1530 mm) Max
4" (102 mm)
16" (406 mm)
Drain Cutout
60" (1524 mm)
21-1/4"
(540 mm)
18" (457 mm)
55"
(1397 mm)
57"
(1448 mm)
39"
(991 mm)
3"
(76 mm)
1-1/4" (32 mm)
Overflow Detail
3-1/8" (79 mm)
3-1/2"
(89 mm)
Ø 2" (51 mm)
Drain
6" (152 mm)
(Typical)
31-1/4"
(794 mm)
10"
(254 mm)
22-1/4"
(565 mm)
59-3/8"
(1508 mm)
31-1/4"
(794 mm)
30"
(762 mm)
75-1/2"
(1918 mm)
17-1/4"
(438 mm)
9"
(229 mm)
36"
(914 mm)
Backer board
locations
3" (76 mm) Drain
Bottom to Floor

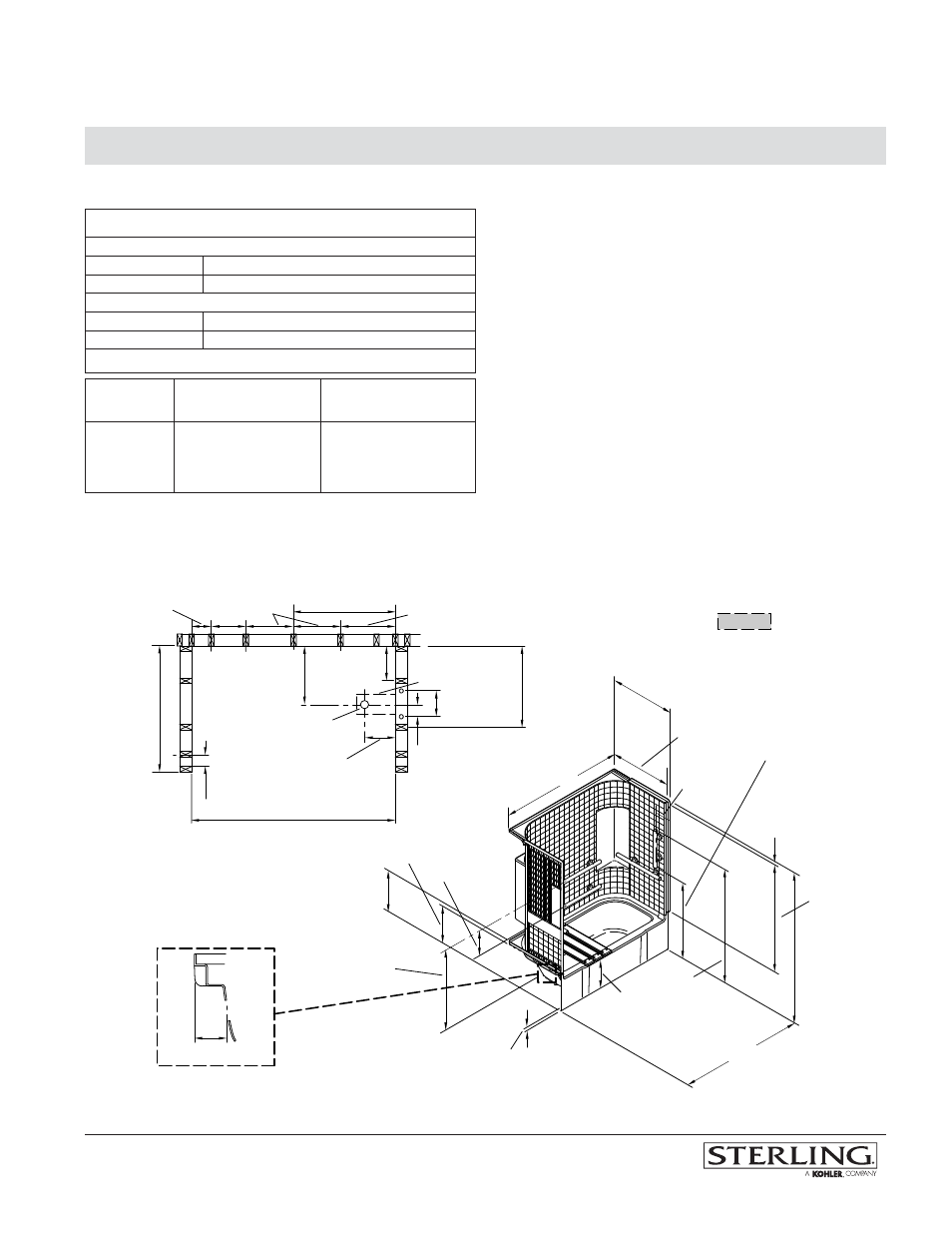

Product Diagram
ACCORD ®
ACCORD
®
60
″ ADA COMPLIANT BATH AND WALL SURROUND
Page 2 of 2
1065823-4-
