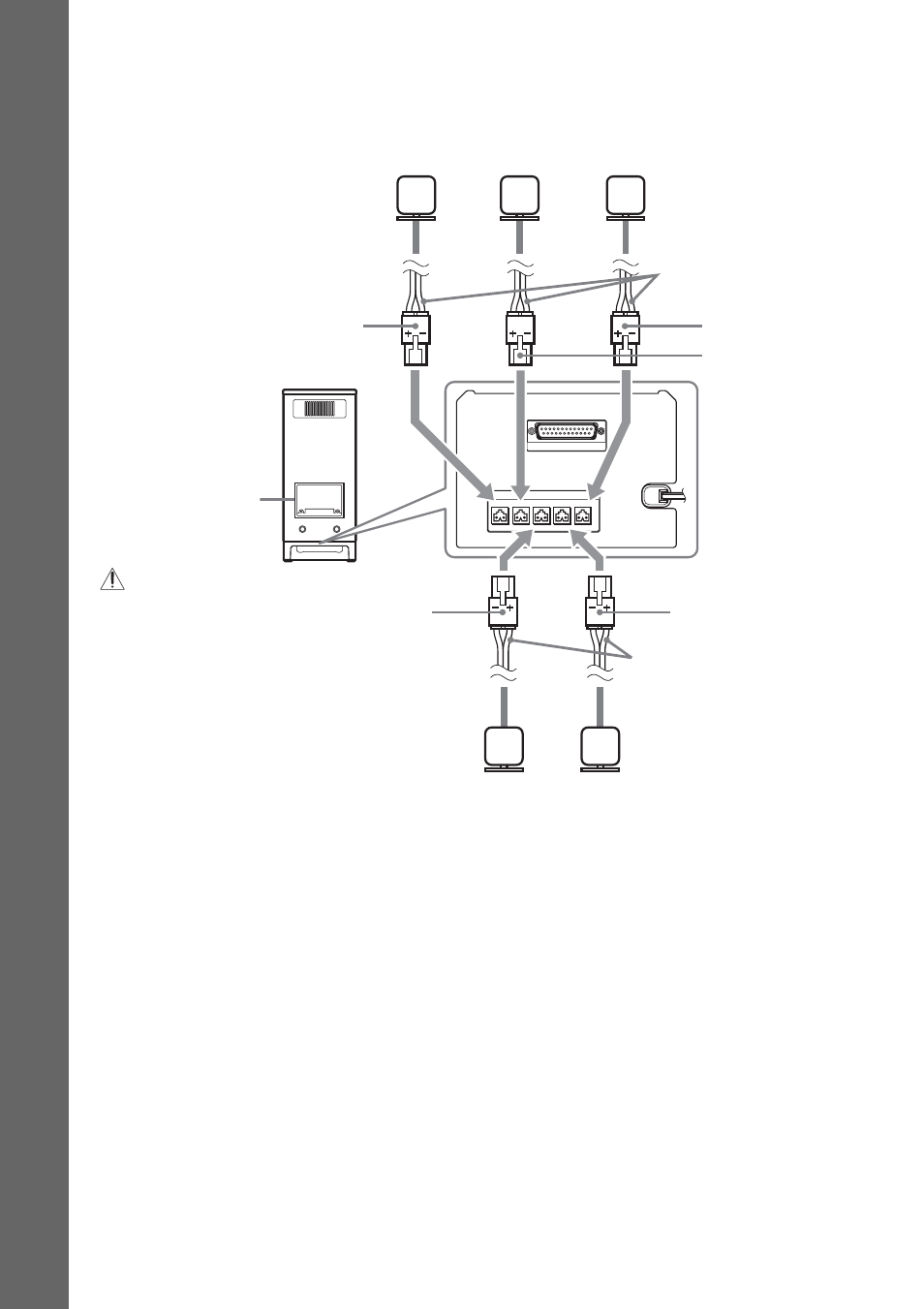

B Connect surround speakers to subwoofer (wired connection)
Connect the connectors of the speaker cords to the corresponding SPEAKER jacks. The connectors of
the speaker cords have the same colour as the jacks to be connected.
SYSTEM CONTROL ONLY FOR HCD-IS50
SPEAKER ONLY FOR SS-IS15
CENTER SUR L SUR R FRONT L FRONT R
Rear of the
subwoofer
Speaker cords
Bottom of the
subwoofer
Center speaker Front speaker (R) Front speaker (L)
Speaker cords
Surround speaker (L) Surround speaker (R)
Red
Green
White
Gray Blue
EZW-T100 slot
(For details, see “Using
an S-AIR Product”
(page 74).
CAUTION
Please do not remove
the screws before
installing the EZW-T100.
