GL408e / GL412e Barcode Thermal Printer
Overview

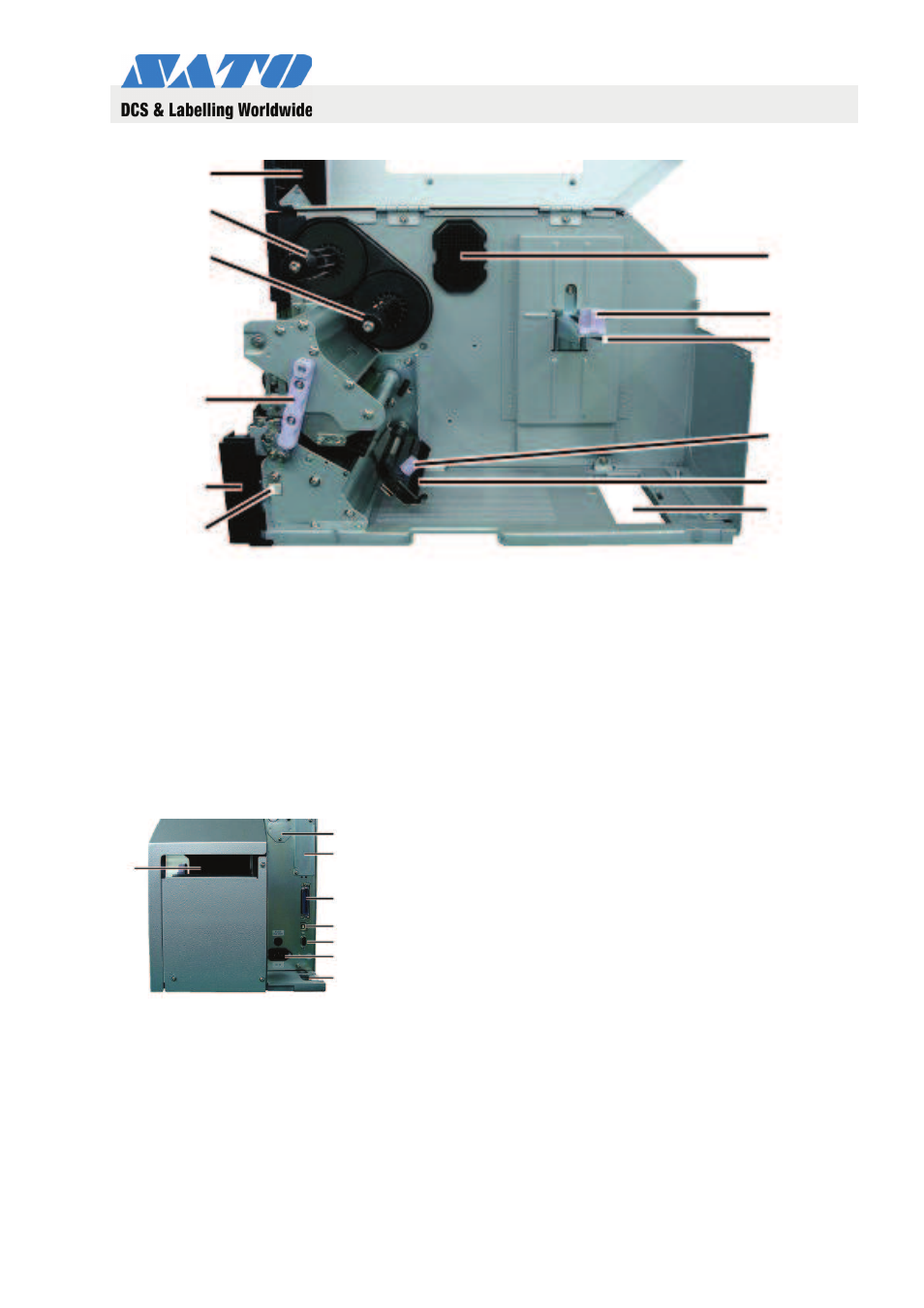

Fig. 3 Printer main body, side
1 Memory cartridge slot
2 Roll guide
3 Roll paper feeder
4 Media guide knob
5 Label damper
6 Bottom opening for fan-fold media
7 Stopper screw
8 Front cover
9 Print head open/close latch
10 Ribbon feed spindle
11 Ribbon take-up spindle
12 Media cover
Fig. 4 Printer main body, back
1
Opening for fan-fold media
2 EXT connector (optional)
3 LAN / W-LAN card slot (optional)
4 IEEE1284 interface connector
5 USB interface connector
6 RS232C interface connector
7 AC input (power supply connector)
8 Cable hook
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
11
