HARDWARE IDENTIFICATION CHART

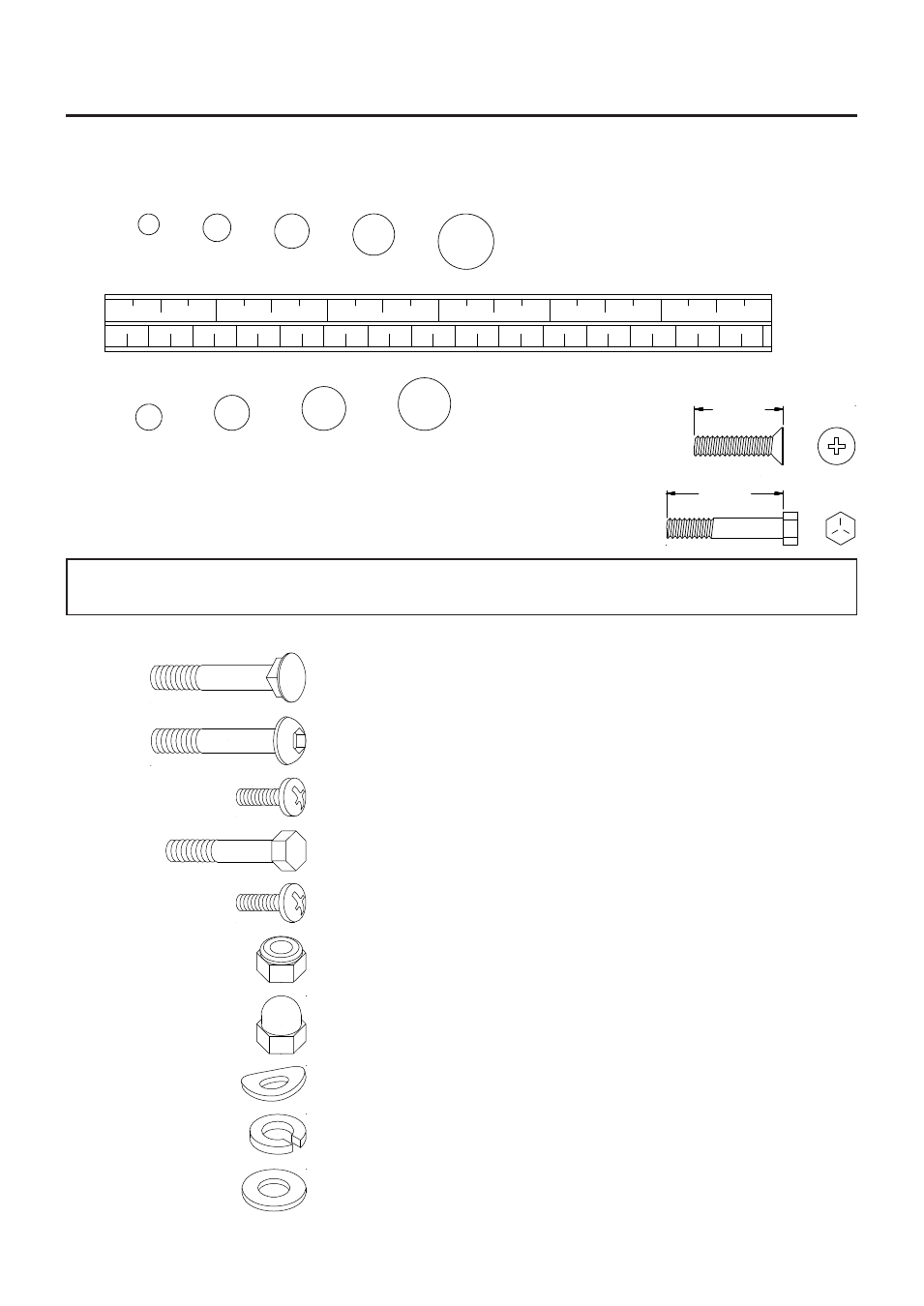

This chart is provided to help identify the hardware used in the assembly process. Place the washers, the
end of the bolts, or screws on the circles to check for the correct diameter. Use the small scale to check the
length of the bolts and screws.
NOTICE: The length of all bolts and screws except those with flat heads is
measured from below the head to the end of the bolt or screw.
Flat head bolts and screws are measured from the top of the
head to the end of the bolt or screw.
mm.
in.
INCHES
MILLIMETERS
1
1/2
0
2
1/2
3
1/2
4
1/2
5
1/2
6
1/2
0
10
20
30
40
50
60
70
80
90
100
110 120
130 140 150
6
8
10
12
3/16"
5/16"
1/2"
3/8"
1/4"
length
length
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
56
Carriage Bolt (M8 x 1.25 x 65mm)
2
57
Bolt, Button Head (M8 x 1.25 x 55mm)
2
58
Bolt, Button Head (M10 x 1.5 x 125mm)
2
59
Bolt, Round Head (M6 x 1 x 15mm)
3
60
Bolt, Round Head (M6 x 1 x 35mm)
8
63
Bolt, Hex Head (M6 x 1 x 35mm)
4
64
Screw, Round Head (M5 x 0.8 x 10mm)
4
73
Acorn Nut (M6 x 1)
4
74
Acorn Nut (M8 x 1.25)
2
78
Arc Washer (M6)
7
79
Arc Washer (M8)
2
80
Lock Washer (M6)
7
81
Lock Washer (M8)
2
82
Washer (M10)
2
72
Nylock Nut (M10 x 1.5)
2
