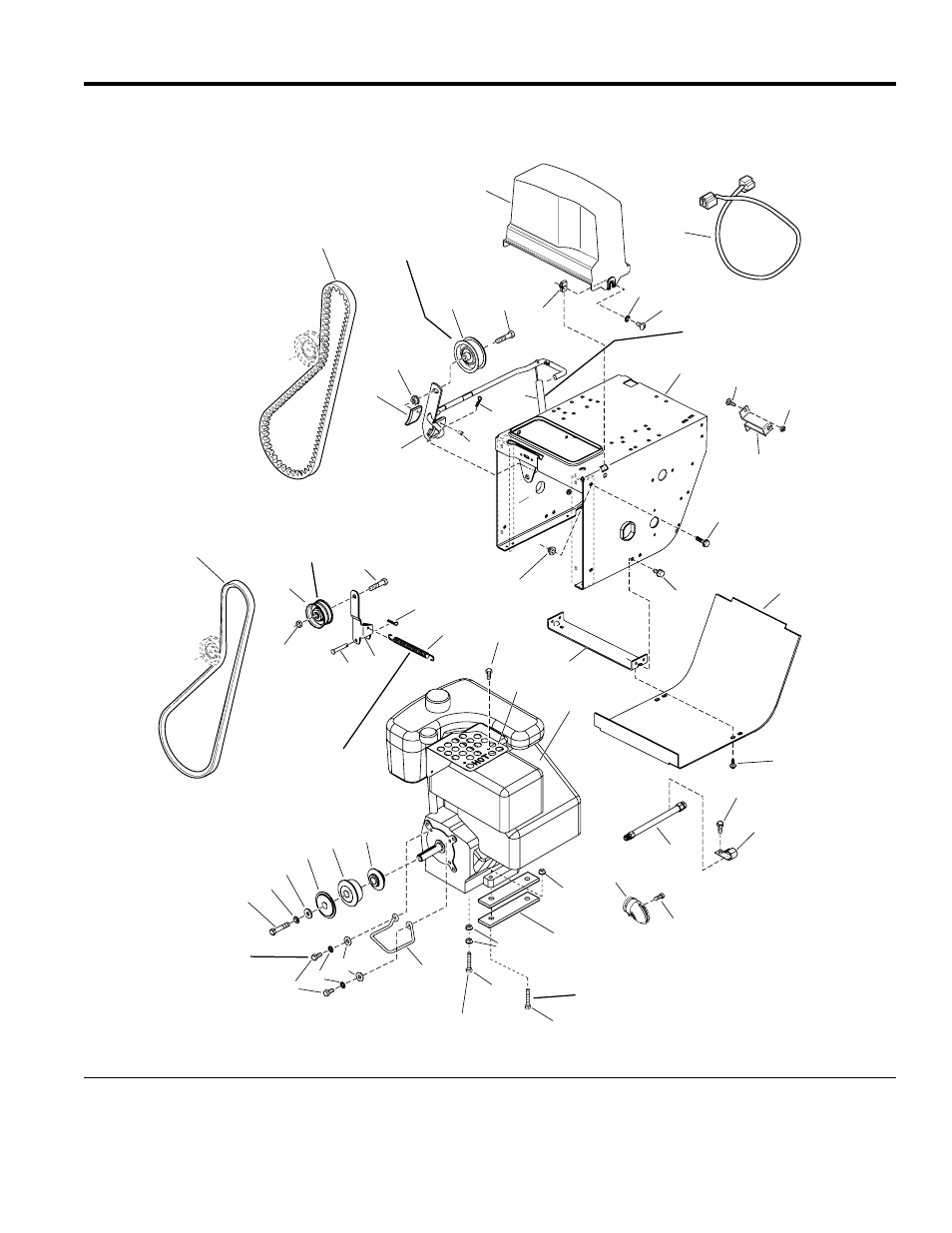

Engine and Frame Group without Power Boost

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

Hook one end of spring (Ref. 7)
into top hole of roller arm (Ref. 6)
and other end into top hole of the idler
arm assembly in the Traction Drive Group.

Long hub of idler

pulley (Ref. 3) to

be toward idler

arm (Ref. 6).

Position idler pulley (Ref. 14)
at center of slot in clutch arm
(Ref. 10).

Hook one end of spring (Ref. 16)
over clutch rod assembly (Ref. 10)
between tabs and other end into
slot in frame.

Torque (4) Engine

Bolts to 17 - 21 ft. lbs.

or 23 - 29 N m

Torque to
10-14 ft. lbs. or
14-20 N m

Right rear bolt.

1

9

17

18

19

20

22

26

27

28

29

30

31

7

6

5

2

3

4

8

8

10

13

14

15

16

42

29

51

52

53

40

11

12

21

36

37

23

25

24

41

43

40

44

48

49

50

35

45

35

46

35

47

32

33

35

39

38

34

986730

The above parts group applies to the following Mfg. Nos.:

2005

18

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

1694589 - 9560E
1694597 - 9560M

TP 400-4155-01-LW-S
