Assembly – Smooth Fitness V380 User Manual
Page 15
www.smoothfitness.com
15
ASSEMBLY

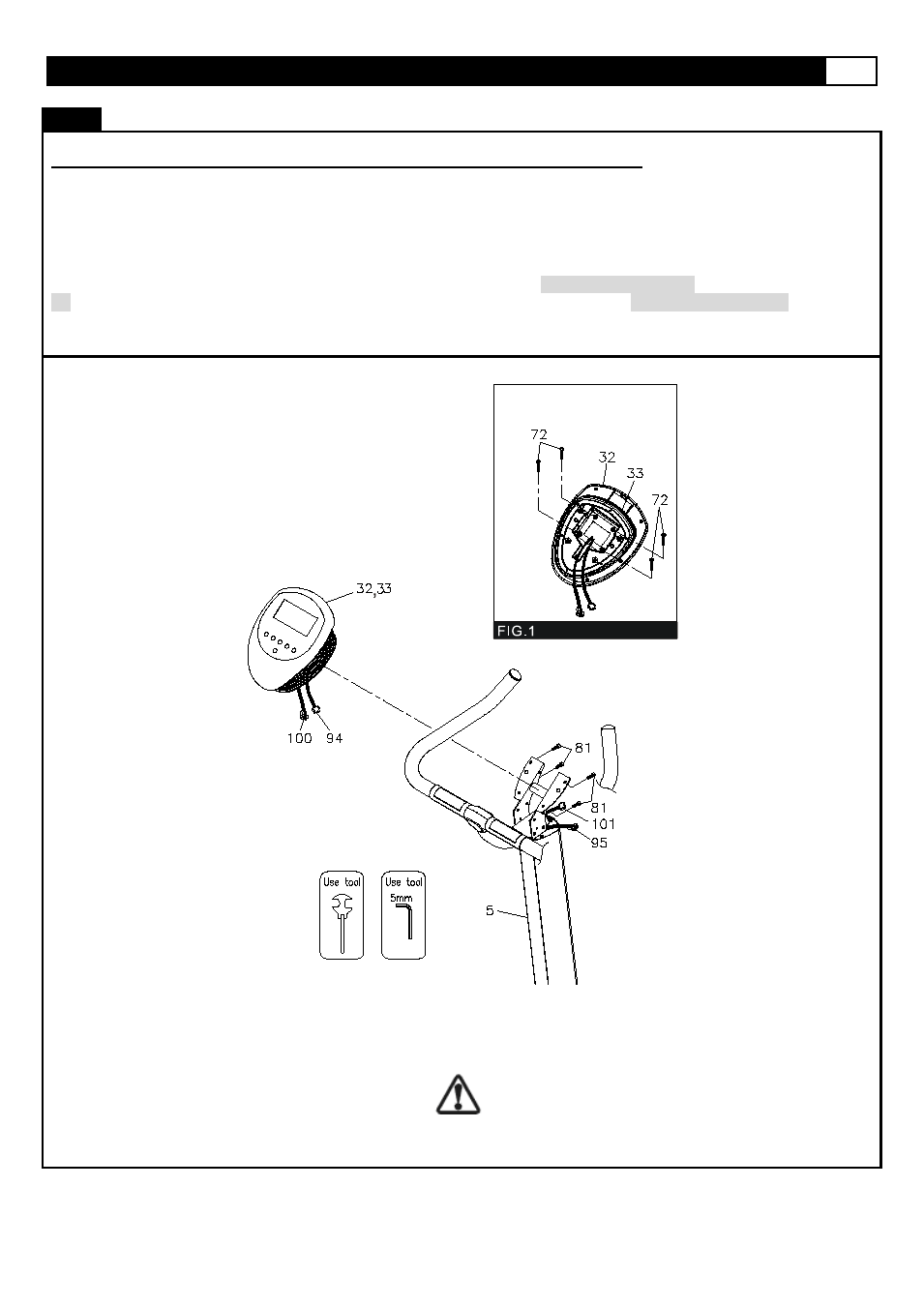

STEP 3: Attach the Console and Front Handlebar
Make sure all wires are recessed into the frame. DO NOT trap or pinch the wires.
A). Attach the console bottom cover (33) to the console upper cover (32) and secure using 4 x M5xp0.8x25mm pan
head screws (72). See Fig.1
B) Align the console (32,33) with the console bracket on top of the upright post (5).
C) Secure the console to the upright post with 5 x (M6xp1.0x15mm) socket head bolts (81).
D) Tighten all bolts now
E) Connect the front computer wire (94) to the rear computer wire (95). Do not pinch the wires
F) Connect the Front Pulse Sensor Wire (100) to the Rear Pulse Sensor Wire (101). Do not pinch the wires
Tighten all bolts and fasteners now
