DOLBY PRO LOGIC (NON-DIGITAL) – SPEAKER LEVEL
Use this installation method
for Dolby Pro Logic applica-
tions (not Dolby Digital, DTS
or other digital processing),
where the receiver/proces-
sor does not have a sub-
woofer output, or a volume-
controlled preamp (line-)
level output:

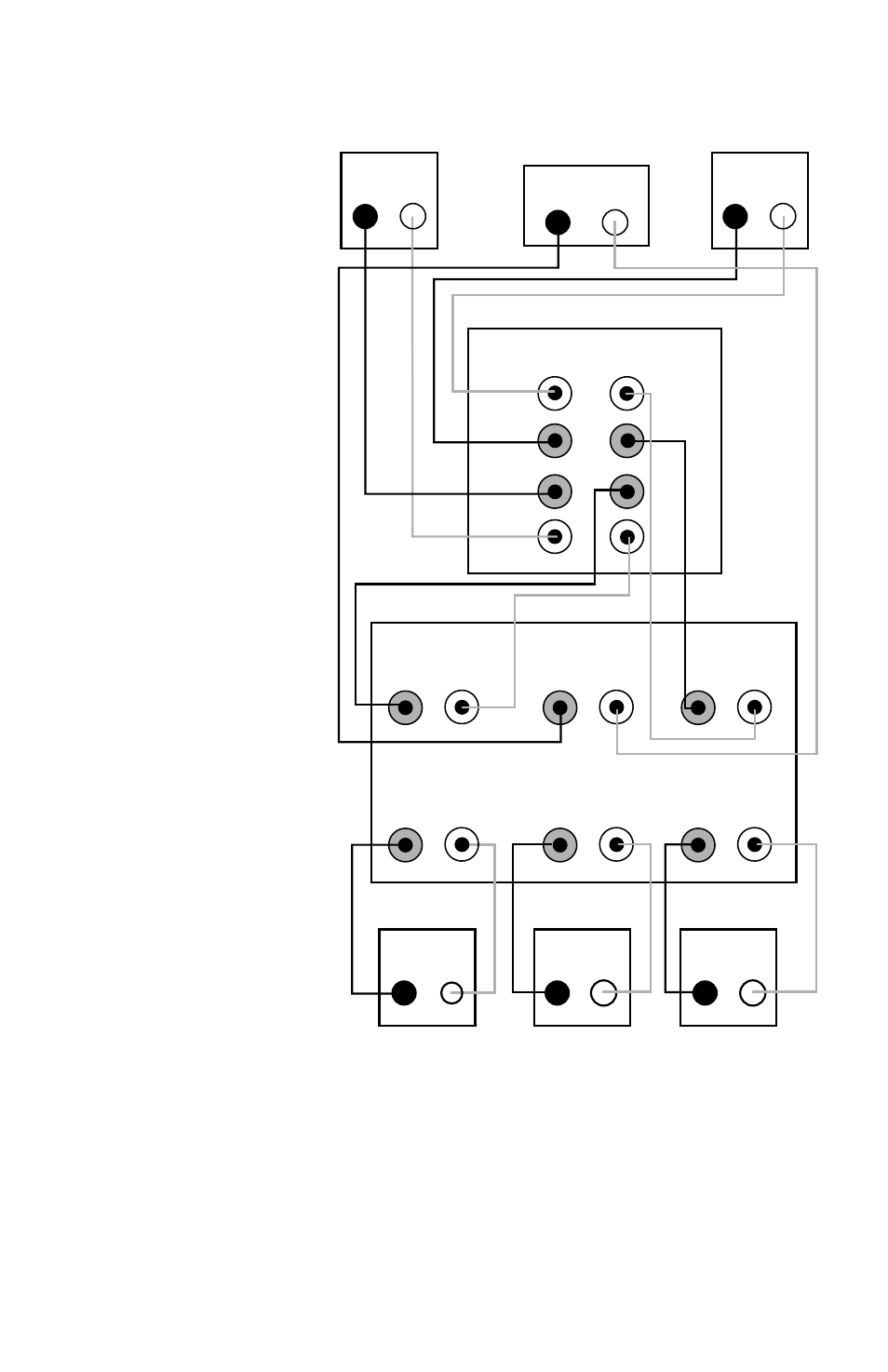

Connect your receiver or
amplifier’s front left and right
speaker terminals to the left
and right terminals on the
subwoofer that are marked
“Speaker Level In.” Connect
the left and right terminals
on the subwoofer that are
marked “Speaker Level Out”
to the corresponding termi-
nals on the back of your front
left and right speakers.
Connect your receiver or
amplifier’s center, surround
and surround back speaker
terminals to the correspon-
ding terminals on the back of
your center and surround
speakers.
Right Front
Right Surround
Left Front
Left Surround
Center
– +
– +
– +
– +
– +
– +
– +
– +
– +
– +
Left Front
Center
Left Surround
Right Front
Right Surround
Surround Back
†
Surround Back
†
Subwoofer
Receiver
S
P
E
A
K
E
R
L
E
V
E
L
R
L
R
L
OUT IN
+
–
–
+
+
–
–
+
– +
– +
†
Surround back speaker is used only in SCS200.6 system.
