Page 36
36

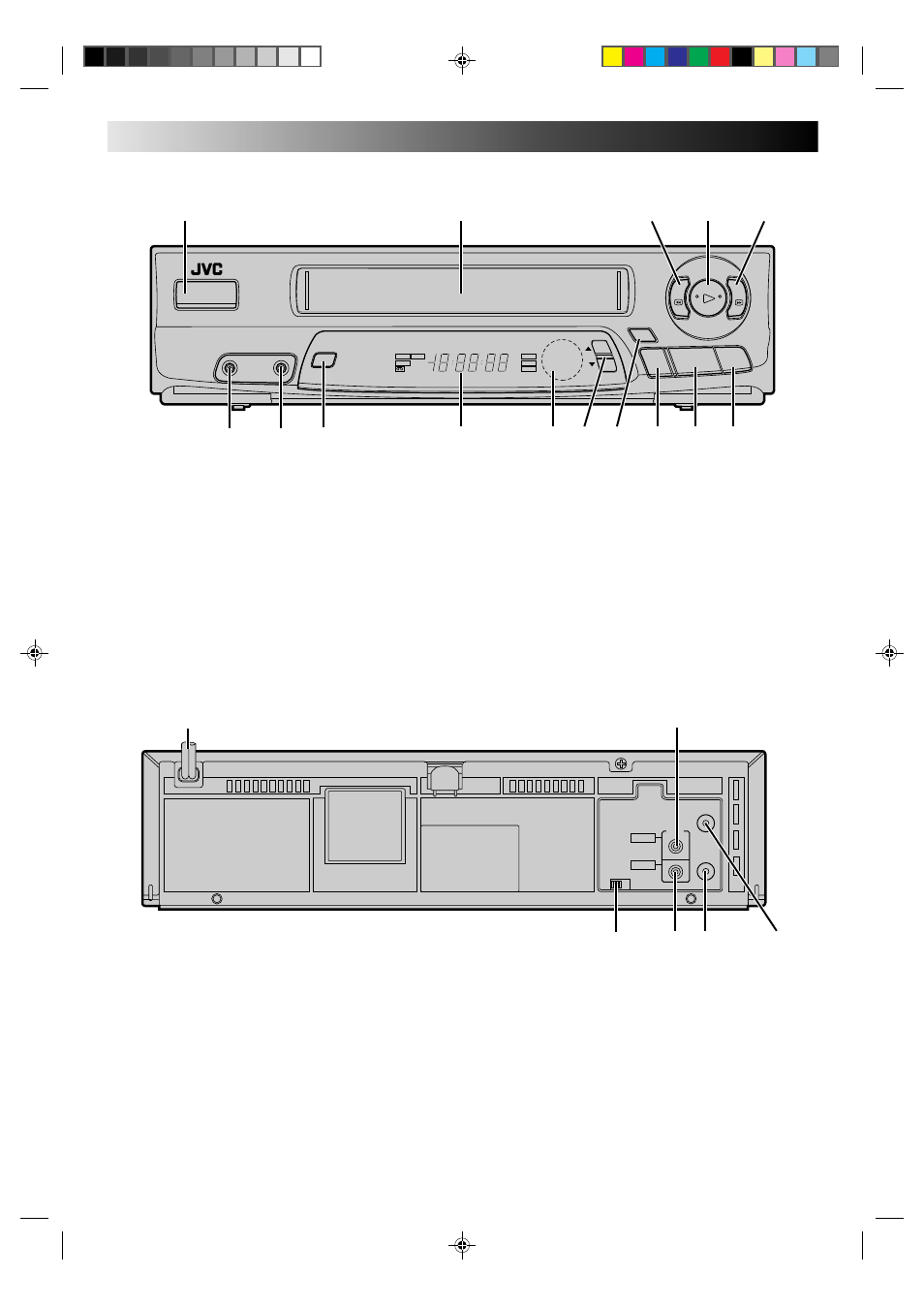

INDEX (cont.)
FRONT VIEW
POWER
MENU
VIDEO
AUDIO
CH
OK
REC
q
PLAY
REW
2
FF
3
PAUSE
6
STOP/EJECT
5
/
8
H
M
S
I T R
TIMER
VIDEO
SP
EP
AM
PM
R E C
PAUSE
PLAY
1
9
0 ! @ # $ %
2
3 4
5
6
7
8
1 Power ON/OFF Button (
੬
pg. 7 or 11)
2 Cassette Loading Slot
3 Rewind Button (
੬
pg. 16)
Reverse Search Button (
੬
pg. 18)
4 Play Button (
੬
pg. 16)
5 Fast-Forward Button (
੬
pg. 16)
Forward Search Button (
੬
pg. 18)
6 Video Input Connector (
੬
pg. 29)
7 Audio Input Connector (
੬
pg. 29)
8 Menu Button (
੬
pg. 7 or 11)
9 Front Display Panel (
੬
pg. 37)
0 Remote Control Sensor
! Channel
5∞ Buttons (
੬
pg. 7 or 11)
@ OK Button (
੬
pg. 7 or 11)
# Record Button (
੬
pg. 17)
$ Stop/Eject Button (
੬
pg. 16)
% Pause Button (
੬
pg. 17)
REAR VIEW
1 Power Cord (
੬
pg. 6)
2 Audio Output Connector (
੬
pg. 6)
3 Channel 3/4 Switch (
੬
pg. 6)
4 Video Output Connector (
੬
pg. 6)
5 RF OUT Connector (
੬
pg. 6)
6 ANT. IN Connector (
੬
pg. 6)
ANT. IN
RF OUT
CH3 CH4
OUT
AUDIO
VIDEO
1
2
3
4 5
6
