Signa™ 5 Whirlpool Bath with Integral Skirt - Front

Right Motor/Pump

Model: Y345

Signa™ 5 Bath with Integral Skirt

Model: Y350

Installation Notes

Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.

Ordering Information

Product Code:

Y345 Signa™ 5 Whirlpool Bath with

Integral Skirt - Front Right Mo-

tor/Pump

Y350 Signa™ 5 Bath with Integral Skirt

• Center Drain Location
• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

4 X HTC Jet Trim Kit: #D095

2 X BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Specifications

Dimensions

60” L x 42” W x 22” H
(1524 mm) L x (1067 mm) W x (559 mm) H

Drain/Overflow

A: 17-7/8” (451 mm) B: 12-3/4” (330 mm)

Cutout

Not Applicable

Total Weight

Y345: 723 lb (328 kg) / 41 lb/sq. ft. (202 kg/m

2

)

Y350: 682 lb (309 kg) / 38 lb/sq. ft. (186 kg/m

2

)

Operating Gallonage

42 U.S. Gal. (159 Liters)
Max. 82 U.S. Gal. (310 Liters)

Product Weight

Y345: 126 lb (56 kg)
Y350: 82 lb (37 kg)

Skirt Mounting

Integral

Electrical Specifications

Model Y345 only

Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional)

Model Y345 only

Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N U395000

© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com

#FS14 12/06

*60"

42"

6-3/4"

4-1/4"

16" x 5"*

30"

12-3/4"

L

1"

H

W

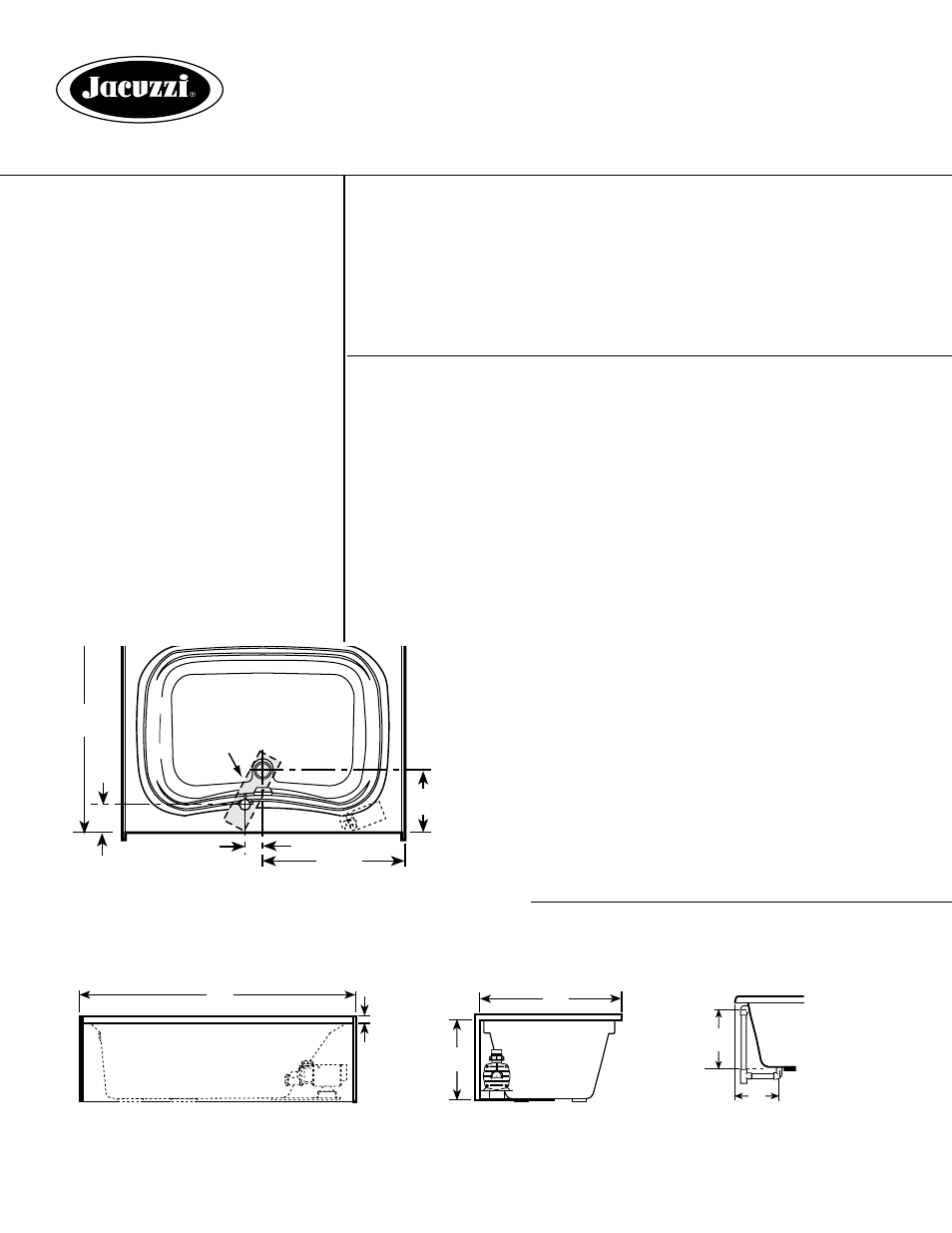

SIDE VIEW

END VIEW

DRAIN/OVERFLOW

A

B

Product Shown: Signa™ 5 Whirlpool Bath with Integral Skirt - Front Right Motor/Pump Model: Y345
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
