Nova® 5 Whirlpool Bath
Model: 4480, 9230
Nova™ 5 Bath
Model: 4481
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifi cations do not apply to non-jetted baths.
Ordering Information
Product Code:
9230 Nova® 5 Whirlpool Bath
Right
Hand
4480 Nova® 5 Whirlpool Bath
Left
Hand
4481 Nova® 5 Bath
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit: #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
60” L x 42” W x 18-1/2” H
(1524 mm) L x (1067 mm) W x (470 mm) H
Drain/Overfl ow
A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)
Cutout
58” x 40”
Total Weight
4480, 9230: 722 lb (327 kg) / 41 lb/ft 2 (201 kg/m 2 )
4481: 682 lb (309 kg) / 39 lb/ft 2 (190 kg/m 2 )
Operating Gallonage
4480, 9230: 46 U.S. Gal. (170 liters)
Max. 54 U.S. Gal. (204 Liters)
Product Weight
4480, 9230: 97 lb (44 kg)
4481: 57 lb (26 kg)
Skirt Mounting
Optional, U-Frame
Electrical Specifi cations ( Models 4480, 9230 only)
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional Models 4480, 9230 only )
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

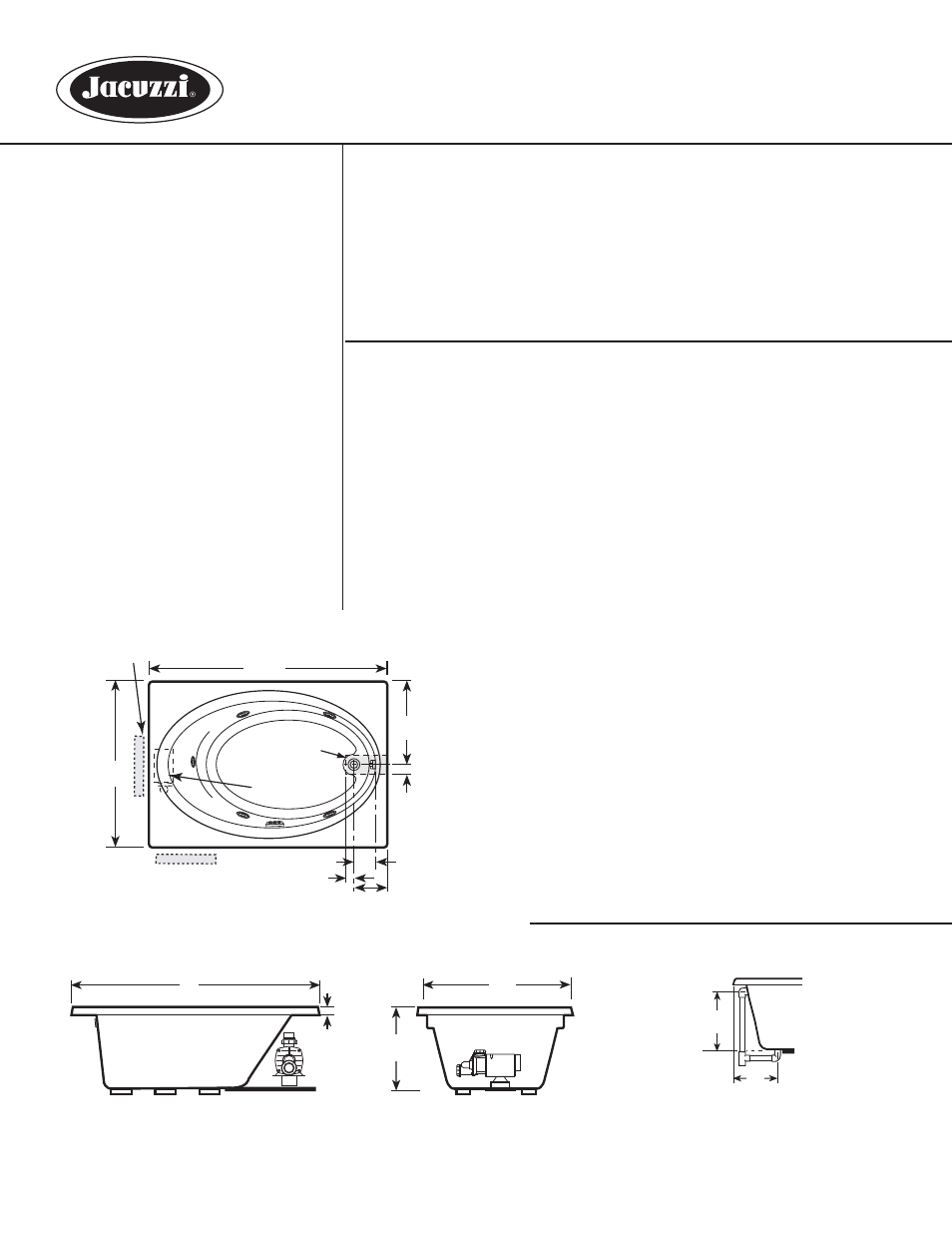

60"
21''
42''
2''
2''
11" x 4"*
8-1/2''
Motor
12" H x 18" L
Service Access
Opt. Service
Access
7''
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
# FR86 06/07
DRAIN/OVERFLOW
A
B
Product Shown: Nova
®
5 Whirlpool Bath Right Hand Model: 9230
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
