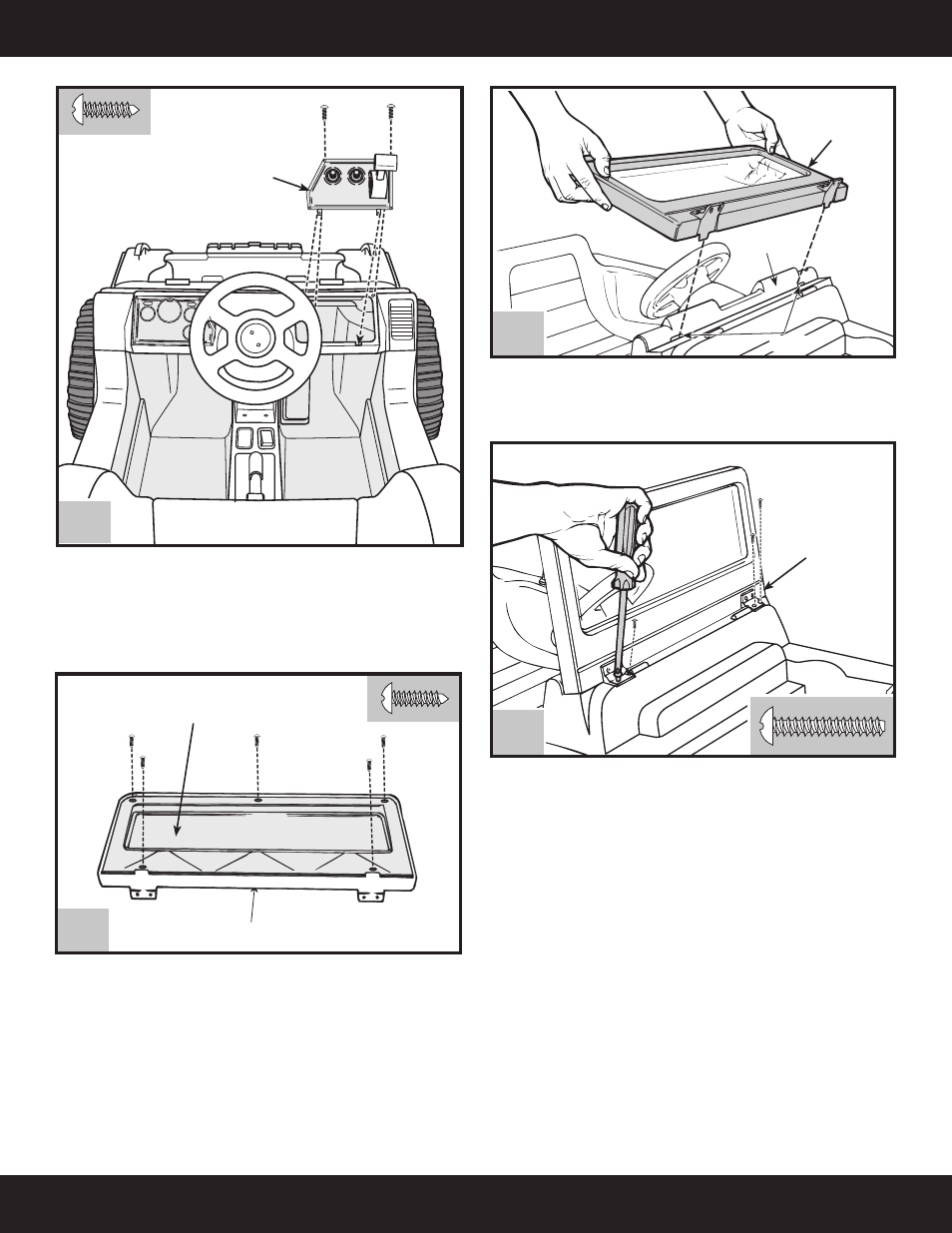

ASSEMBLY
10
• Fit the windshield onto the windshield frame .
• Insert five #6 x
1 /
2
" screws into the holes in the windshield
assembly and tighten .
Windshield Frame
Windshield
Slots
Dash
• Fit the tabs on the back of the windshield into the slots in the top
of the dash .
Windshield
11
• Lift the top of the windshield assembly towards the front of
the vehicle .
• Insert two #8 x 1" screws into the holes in each hinge and tighten .
Windshield
12
• Fit the tabs on the bottom of the activity panel into the notches
in the dash opening to the right or the steering wheel .
• Insert two #6 x 1 /
2
" screws into the holes in the top of the activity
panel and tighten .
Activity
Panel
9
10
